75hp 160m3/H Farm Irrigation Deep Well Clean Water Submersible Pumps

Minimum Order Quantity : 1 set Price : Please send your submersible pump requirements
Packaging Details : Electric submersible pump are packed by standard export wooden case. Delivery Time : 7-10 working days
Payment Terms : T/T, Western Union, L/C, paypal Supply Ability : 3000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE; ABS Model Number: Electric Submersible Pump

Detail Information

Pump Diameter: 10 Inch Submersible Pump Discharge: 5" Submersible Pump
Power: 55kw 75hp Water Submersible Pump Head: 80m Submersible Water Pump
Flow: 160m3/h Water Submersible Pump Driven Power: AC Electrical Motor
ODM OEM: Accept Warranty: 12 Months
High Light:

75hp Deep Well Submersible Pumps

,

160m3/H Deep Well Submersible Pumps

,

Farm Irrigation Water Submersible Pumps

Product Description



China 75hp 55kw 160m3/h 80m 10 Inch Electrical Farm Irrigation Deep Well Clean Water Submersible Pumps



Water submersible pump overview:

    Deep well water submersible pump is designed according to the national standard of energy saving products, mainly used to extract groundwater from vertical deep wells, but also widely used in farmland irrigation, urban, industrial and mining enterprises drainage and highland, mountainous areas of human and animal water and high-rise buildings, or sea water lifting.



Submersible water pumps features:

1. This type of vertical water pump is composed of QJ type submersible pumps and YQS type submersible motors to work underwater fully;

2. Submersible water pump has the advantages of compact structure, small volume, low noise, no secondary pollution, convenient installation, use and maintenance, safe and reliable operation, high efficiency and energy saving, and does not need to build the pump house.

3. Submersible pumps can be used for vertical installation, and can also be used for open water and ground pumps.

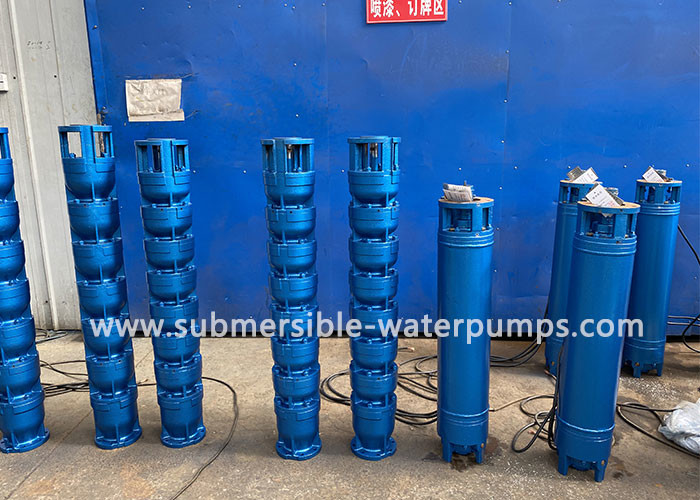

75hp 160m3/H Farm Irrigation Deep Well Clean Water Submersible Pumps 0



How to choose a suitable water submersible pump types, the most important steps for submersible pump running well:

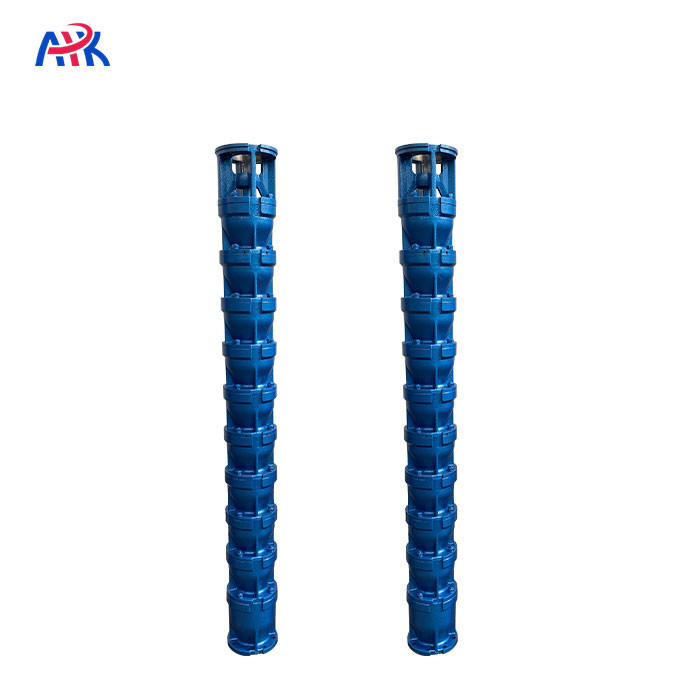

75hp 160m3/H Farm Irrigation Deep Well Clean Water Submersible Pumps 1



Submersible water pump structural characteristics

1) The water pump is centrifugal or mixed-flow; Water lubricated bearing; It is rigidly connected with the motor by a coupling. The pump impeller rotates under the drive of the motor to produce centrifugal force, which increases the liquid energy and carries water through the diversion effect of the pump shell. There is no reverse valve body at the upper end of the water pump to prevent the electric pump from shutting down because the water flowing back in the water pipe will damage the working parts. There is a drain hole on the valve, which can slowly release the water in the pipeline to prevent the freezing and cracking of the pipeline in winter. (Note: Low lift submersible pump does not have a check valve body)

2) The motor is a closed wet structure filled with water. The stator winding of the motor is a multi-layer electromagnetic wire with water-resistant polyethylene insulation and nylon sheath. Guide bearings and thrust bearings are made of water lubricated material. The motor is filled with clean water to cool the motor and lubricate the bearings. The pressure regulating film (made of rubber) is installed at the bottom of the motor to adjust the expansion and contraction pressure difference of the clean water in the body caused by the temperature rise of the motor. The upper shaft of the motor is equipped with a sand prevention mechanism to prevent water sediment from entering the body.

3) Pipeline part: it is used to connect the electric pump and make it hoisted in the machine well to transport the water to the ground. It is mainly composed of short water pipe, water pipe, bend pipe, splint and other components. The short water pipe is the connecting part between the water pipe and the electric pump. The elbow pipe is installed at the wellhead to change the direction of the water flow. The splint is used to lift and fix the output line during the installation of the pump.



75hp water electric submersible pump models:

Diameter Model Power Flow range Head range
Inch(") QJ type kw hp m3/h m
10" 250QJ50-220/11 55 75 46-54 187-253
10" 250QJ50-240/12 55 75 46-54 204-276
10" 250QJ63-200/10 55 75 58-68 170-230
10" 250QJ80-140/7 55 75 74-86 118-163
10" 250QJ80-160/8 55 75 74-86 136-184
10" 250QJ100-126/7 55 75 80-120 110-147
10" 250QJ125-96/6 55 75 116-134 80-110
10" 250QJ140-90/6 55 75 130-150 78-103
10" 250QJ160-75/5 55 75 148-172 65-86
12" 300QJ200-60/3 55 75 186-214 51-69
12" 300QJ300-40/2 55 75 279-321 35-45



Submersible water pump conditions of use

1) The power supply is 50Hz, 380V three-phase AC power supply;

2) The water temperature shall not be higher than 20℃;

3) The solid content in water (calculated by mass) is not more than 0.01%;

4) The hydrochloric acid degree pH value of water is 6.5~8.5;

5) The chloride ion content in water is not more than 400mg/L;

6) the depth of submersible pump into the water is not greater than 70m.

The above conditions are the basic conditions of use, if the use of conditions beyond the scope of the above, can be made special, to ensure the normal operation of the pump.


APK electrical submersible water pump factory overview :



APK is a professional ODM OEM electric submersible water pump manufacturer in China since 1996, got CE, ABS and ISO certificates. Focusing on submersible water pumps, pumping clean water, sea water, salt water, sewage water and hot water.

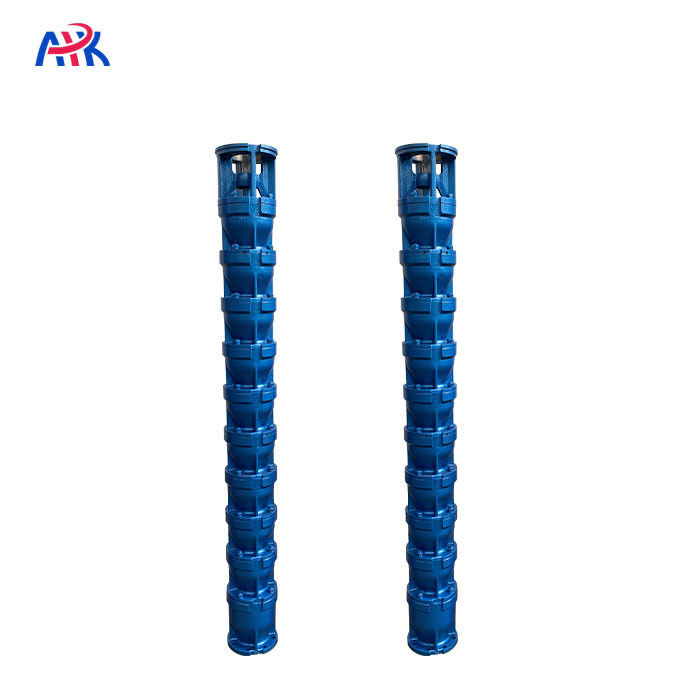

75hp 160m3/H Farm Irrigation Deep Well Clean Water Submersible Pumps 2



Each submersible water pump from APK factory, all is tested. 1 Step 1 QC, super strict quality system, strict punishing and rewarding system.



75hp 160m3/H Farm Irrigation Deep Well Clean Water Submersible Pumps 3
