10Hp 7.5Kw Submersible Pond Fountain Pump Head 18-80m Simple Structure

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Submersible fountain pumps is packed by wooden case or as your request Delivery Time : 3-5 working days after payment confirmation
Payment Terms : T/T, Western Union Supply Ability : 8563 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QS

Detail Information

Flow Rate: 80m3/h Head: 18-80m
Voltage: 380v Power: 7.5kw
Motor: 100% Copper Wire Install: Horizontal
Warranty: One Year
High Light:

submersible water pumps for fountains

,

outdoor submersible fountain pump

Product Description

10Hp 7.5Kw Head 18-80m Submersible Fountain Pumps Supplier in Saudi Arabia



Submersible fountain pumps overview:



QS(P)series submersible pump is widely used in various kinds of water conservancy facilities such as fountains, farm irrigation, sprinkler irrigation with water, the supply and drainage system of civil building and, industrial and draining water from the hills and mountainous area, the diversion in low-lying areas, water supply and drainage in urban and rural enterprises industrial etc.



Submersible fountain pumps features:



1. Motor and pump are integrated, simple structure
2. Easy to install, use, disassemble and maintain
3. Taking little floor space
4. No pollution to water source
5. Continuous operation 2500 hours per year
6. Average life is at least 5 years

7. Vertical or horizontal install



Submersible Fountain Pumps Parameters:

1. Flow: 80m3/h

2. Lift: 22m 54m

3. Power: 7kw

4. Temperature: < 30℃, QS(R) hot submersible pump<80℃

5. Material: Stainless steel 304

6. Install: Horizontal

7. Note: Vertical deep well submersible pump could be refit horizontal install for fountain project



Customer Case:

1. Country: Saudi Arabia

2. Pump: submersible pump for fountain

3. Application: Al Ahsa Park

The detailed parameters as the table:

 Diameter  Flow  Head  Power  Voltage  Material
 QS80-22-7.5  80m3/h  22m  7.5kw  380v/60hz  stainless steel
 QS30-54-7.5  30m3/h  54m  7.5kw  380v/60hz  stainless steel
 250QJ80-80-30  80m3/h  80m  30kw  380v/60hz  stainless steel

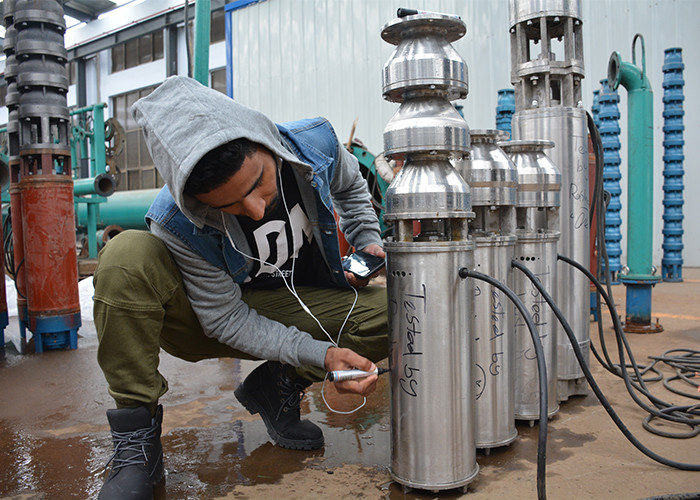

Submersible fountain pumps testing:

10Hp 7.5Kw Submersible Pond Fountain Pump Head 18-80m Simple Structure 0

Customer Feedback:

10Hp 7.5Kw Submersible Pond Fountain Pump Head 18-80m Simple Structure 1

Submersible fountain pumps parameters:

 Model  Flow  Head  Power  Current  Max.Dia.  Pump Height
 QS Series  m3/h    m      kw      A     mm        mm
QS(P)10-40/3-2.2  10  40  2.2  5.7  170  680
 QS(P)15-26-2.2  15  26  170  580
 QS(P)20-20-2.2  20  20  170  580
 QS(P)25-17-2.2  25   17  168  580
 QS(P)40-12-2.2  40  12  168  580
 QS(P)65-7-2.2  65  7  168  580
 QS(P)15-34/2-3  15  34  3  7  168  650
 QS(P)10-54/3-3  10  54  170  680
 QS(P)25-25-3  25  25  170  580
 QS(P)20-30/2-3  20  30  168  650
 QS(P)40-16-3  40  16  168  580
 QS(P)50-13-3  50  13  168  580
 QS(P)80-7-3  80   7  187  580
 QS(P)65-10-3  65  10  168  580
 QS(P)100-6-3  100  6  200  580
 QS(P)10-65/5-4  10  65   4  10.2  168  750
 QS(P)10-72/4-4  10  72  168   720
 QS(P)10-81/6-4  10  81  168  780
 QS(P)15-54/4-4  15  54  168  720
 QS(P)20-40/2-4  20  40  168  730
 QS(P)25-30/2-4  25  30  168  730
 QS(P)30-30/2-4  30  30  168  730
 QS(P)32-26-4  32  26  168  670
 QS(P)40-21-4  40  21  168  630
 QS(P)50-16-4  50  16  168  630
 QS(P)65-13-4  65   13  168  630
 QS(P)65-15-4  65  15  168  630
 QS(P)80-12-4  80  12  187  630
 QS(P)100-9-4  100  9  200  630
 QS(P)10-95/7-5.5  10  95   5.5   13.4

 187  1080
 QS(P)15-65/5-5.5  15  65   187  960
 QS(P)40-28-5.5  20  28  187  720
 QS(P)50-26-5.5  50  26  187  780
 QS(P)65-20-5.5  65  20  187  720
 QS(P)80-15-5.5  80  15  187  720
 QS(P)100-12-5.5  100  12  200  720
 QS(P)120-10-5.5  120  10  200  720
 QS(P)220-5-5.5  220  5  200  720
 QS(P)10-121/9-7.5  10  121  7.5  18.6  187  1250
 QS(P)15-80/6-7.5  15  80  187  1200
 QS(P)20-65/5-7.5  20  65  187  960
 QS(P)20-75/4-7.5  20  75  187  1130
 QS(P)25-65/5-7.5  25  65  187  960
 QS(P)30-50/3-7.5  30  50  187  950
 QS(P)30-54/3-7.5  30  54  187  950
 QS(P)32-48/4-7.5 32 48 187 950
QS(P)40-40/2-7.5  40  40  187  820
QS(P)50-30/5-7.5  50  30  187 950
QS(P)50-36/3-7.5 50 36 187 950
QS(P)65-25-7.5 65 25 187 740
QS(P)80-22/2-7.5 80 22 187 820
 QS(P)100-15-7.5 100 15 200 740
QS(P)100-17-7.5 100 17 200 740
QS(P)250-8-7.5 250 8 200 740

If these submersible fountain pumps parameters do not meet your demand, please feel free to contact us. We will choose one suitable model for you. 24 hours online!
