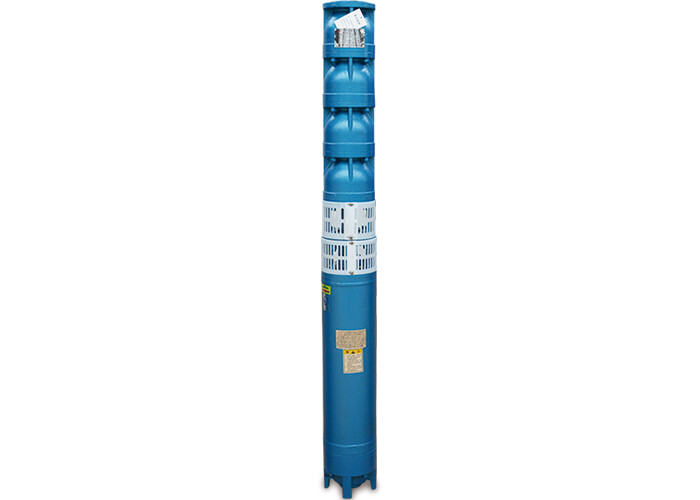

160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage
160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage
160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage 160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage 160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage 160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage 160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage
Contact Now

160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Deep well submersible pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QJ

Detail Information
Flow Rate: 18-1400m3/h Head: 18-465m
Voltage: 380v/415v/420v/460v/480v/660v /1140v Power: 45-110kw
Frequency: 3 Phase 50hz/60hz Material: Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904L
Motor: 100% Copper Wire Certificates: ISO, CE,BV, TUV, CCC
Highlight:

submersible deep well pumps

,

deep well water pump

Product Description

160kw 185kw 220kw 260kw 300kw Head 38-130m Flow Deep Well Submersible Pump



Description of QJ deep well submersible pump:

Application: QJ series deep well submersible pumps are widely used in farmland irrigation and drainage, supply and drainage systems for industrial and residential buildings, water diversion in hills and mountains, drainage in low-lying areas, and various water conservancy facilities such as water supply and drainage in urban and rural industrial and mining enterprises.

Features: This kind of pump combines motor, water pump and assembly into one, which have features of simple structure, simple installation and removal, small footprint, easy to use and maintenance, safe and reliable operation, and does not pollute water sources.



Working conditions of deep well submersible pump:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
  2. Motor must be filled with clean water.
  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.
  4. Water temperatureshould not higher than 20 ℃.
  5. Sand content of the water (by quality) not more than 0.01%.
  6. Water PH 6.5~8.5.
  7. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.
  8. The content of chloridion in water shouldnot be higher than 400mg/l.
  9. The water source must provide enough water for the pump to work continuously.

160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage 0

160kw -300kw Deep Well Submersible Water Pump Farmland Irrigation And Drainage 1

Water Submersible Pump Models:

Pump diameter Model Motor Power Flow Range Head Range
Inch (")  QJ Series  kw hp  m3/h  m
12"  300QJ400-80/2  160  220  368-432  76-84
12"  300QJ400-120/3  220  300  368-432  117-123
12"  300QJ500-75/5  185  250  460-540  72-78
12" 300QJ500-90/6  220 300  460-540  87-93
14"  350QJ250-125/5  160  220  233-267  120-130
14" 350QJ320-120/4  185  250  305-335  115-125
16"  400QJ500-80/2  185  250  460-540  77-83
20"  500QJ640-56/2 185  250  600-680  54-58
20" 500QJ640-84/3  260  350  600-680  82-86
24"  600QJ800-50/2  220  300  750-850  48-52
24"  600QJ800-75/3  300  400  750-850  73-77
24"

600QJ1000-40/2

  220 300 900-1200  38-42
24" 600QJ1000-60/3  300 400 900-1200 58-62

 If your well is special, please tell us the well diameter. We offer various of submersible pump parameters, choosing the suitable working size according to your requirements. Or if you are not sure, please tell us your capacity and head, we will suggest the best suitable model for you.
