22kW Deep Well Submersible Pump, 58–68 m³/h, 60–82 m Head

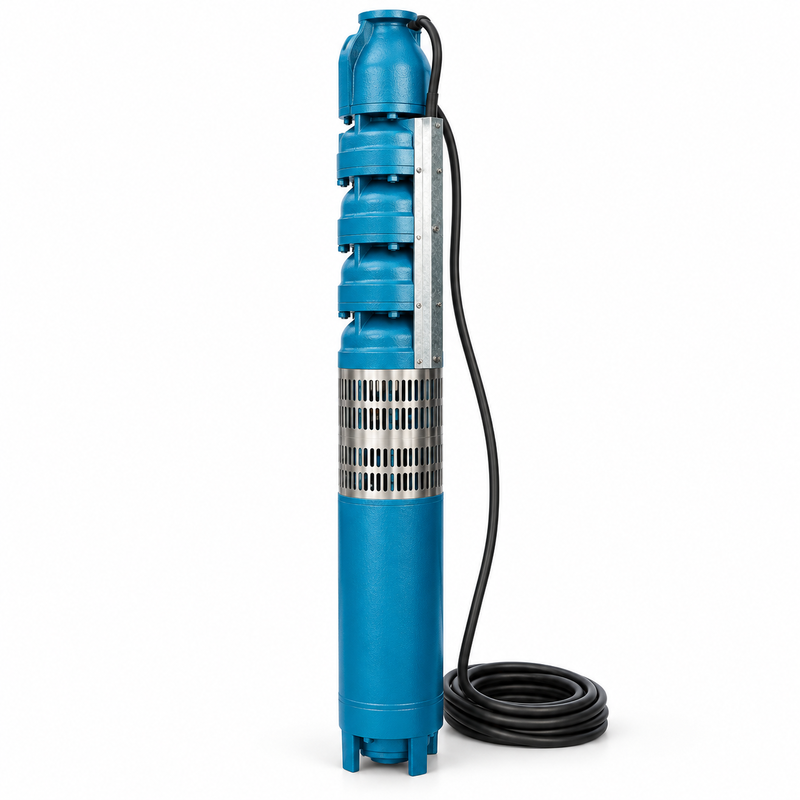

The SLAPK 22kW deep well submersible pump is a selection option for groundwater supply systems requiring a catalog flow range of 58–68 m³/h and a head range of 60–82 m. The corresponding model is 200QJ63-70/5, with a catalog outlet size of 4 inches.

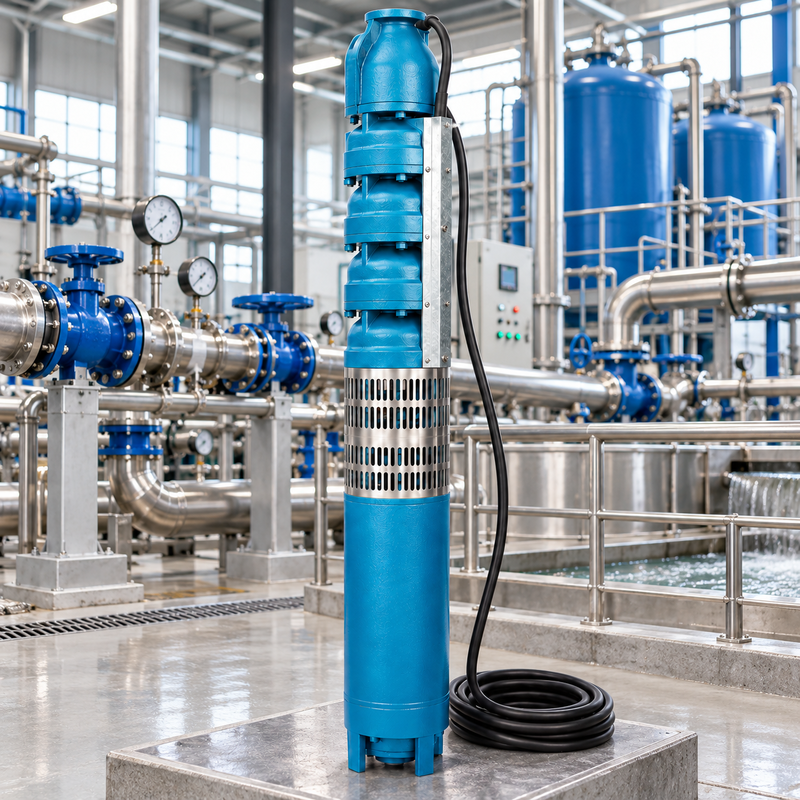

This model can be evaluated for agricultural irrigation, elevated tank filling and industrial utility water supply. Compared with the 15kW 200QJ63-56/4, it offers a higher catalog head range while retaining the same listed flow range, providing another option when the system requires additional lift or discharge pressure.

• Brand: SLAPK

• Model: 200QJ63-70/5

• Motor power: 22 kW

• Catalog flow range: 58–68 m³/h

• Catalog head range: 60–82 m

• Outlet size: 4 inches

• Product series: QJ

• Pump materials: Confirm in the quotation

• Voltage, frequency and phase: Confirm for the selected motor

The flow and head ranges cannot be combined freely. They do not establish that the pump delivers 68 m³/h at 82 m head. Check the required operating point against the performance curve for the quoted configuration.

A project may need the same flow as before but greater head because the pumping water level has fallen, the delivery point is higher or the destination requires more pressure. The 200QJ63-70/5 can be considered when a lower-head model cannot meet the revised duty.

Before selecting a larger pump, establish why the head requirement has increased. Restricted filters, partially closed valves or unsuitable pipework should be checked, since increasing pump power alone may not resolve the underlying problem.

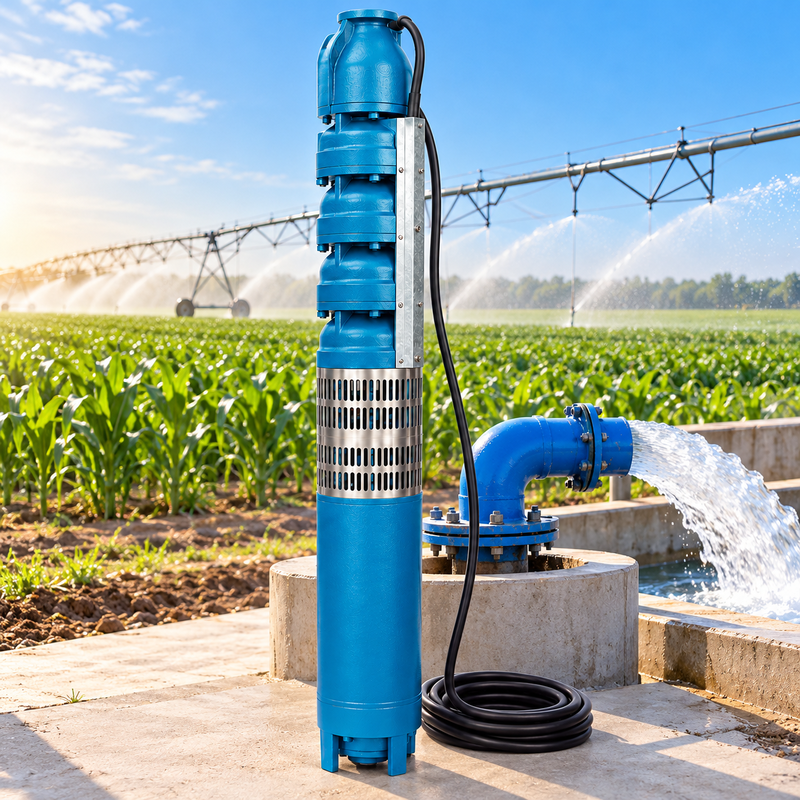

For irrigation supply, include the pressure required by the irrigation equipment as well as elevation and pipeline losses. The pressure available at the field depends on the complete system, not simply the head stated in the pump model.

For an open tank or reservoir, calculate the elevation difference from the pumping water level to the delivery point and add pipework losses. Provide the well’s sustainable yield and expected dynamic water level so the selection reflects the water available during operation.

The 200QJ63-56/4 has a 15kW motor and a catalog head range of 48–65 m. The 200QJ63-70/5 has a 22kW motor and a catalog head range of 60–82 m. Both list 58–68 m³/h flow and a 4-inch outlet.

Their head ranges overlap, but that does not mean they provide the same flow at every head within the overlap. Compare both performance curves at the required duty point. If the 15kW model already meets the system requirement, the larger motor rating alone is not a reason to change.

For an accurate quotation, specify the water conditions, required materials, site electrical supply, cable length and control requirements. Ask for the pump, motor and accessories to be identified clearly so quotations can be compared on an equivalent basis.

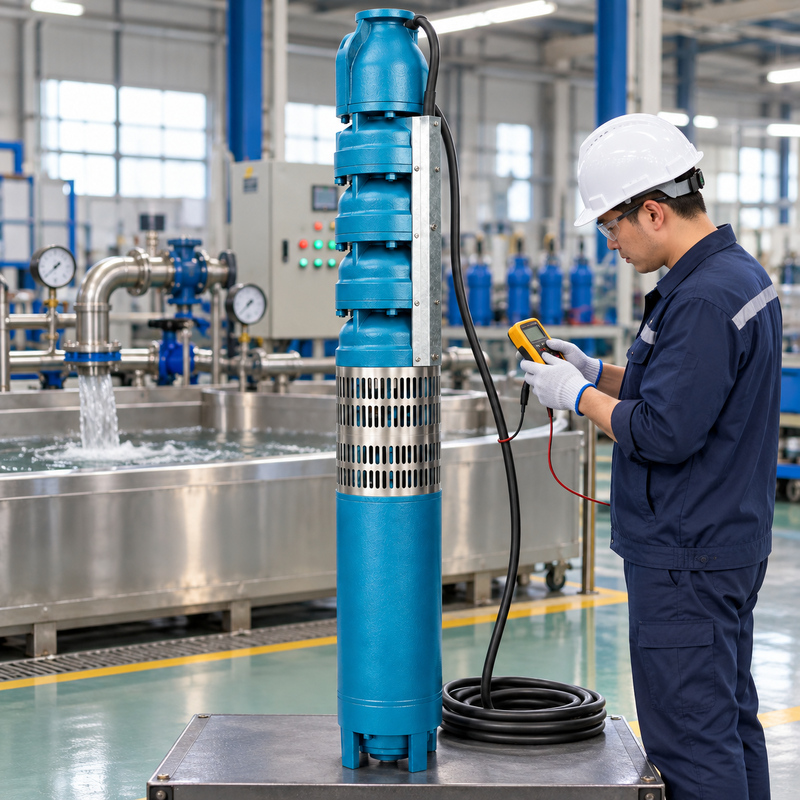

For replacement projects, confirm the available electrical capacity and starting equipment before moving from a 15kW to a 22kW motor. The existing cable and control panel should be reviewed rather than assumed suitable. Also confirm the outlet connection and complete assembly dimensions against the installation.

Submit this duty point for checking against the performance curve of the supplied configuration. The model designation is useful for initial selection, but final suitability requires the corresponding technical data.

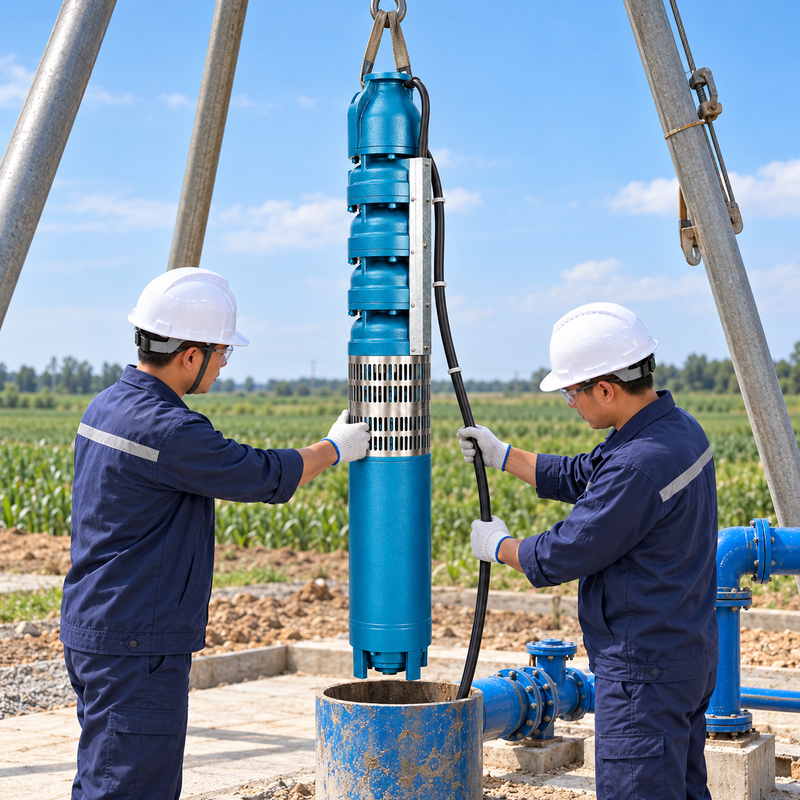

Well depth alone is insufficient. Selection depends on the pumping water level, delivery elevation, friction losses and required discharge pressure. Installation depth and cooling conditions must also be checked.

It can be evaluated if the system needs greater head. Confirm the revised duty point, electrical supply, controls and installation compatibility before ordering.

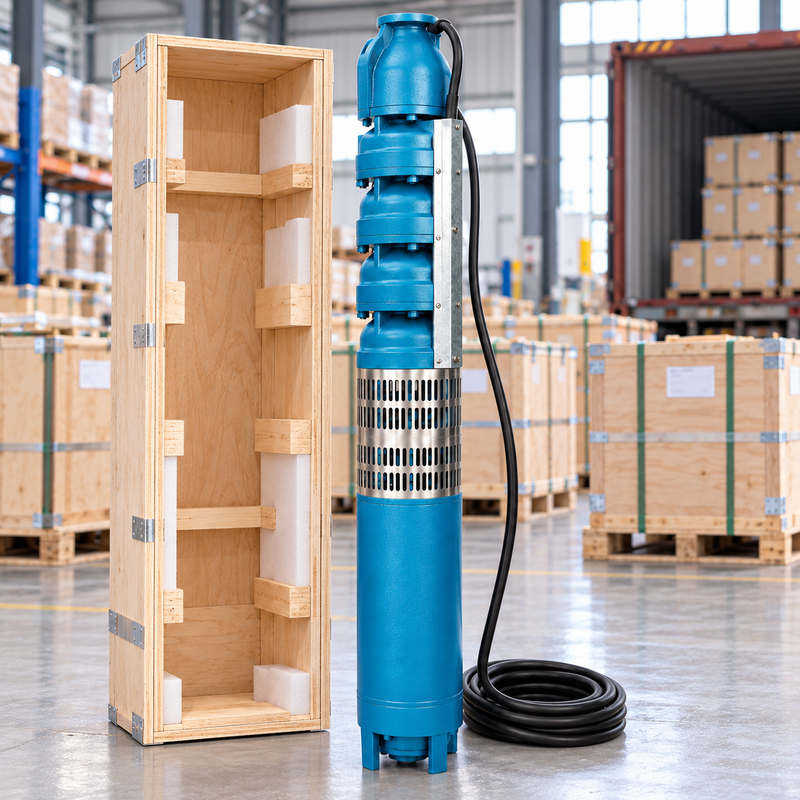

The scope of supply should be stated in the quotation. Provide the required cable length and control functions so the requested accessories can be included and priced clearly.

Send SLAPK your target flow and total head, well information, water conditions and available power supply. Include the quantity, cable length, accessory requirements and delivery destination.

If the total head is not yet known, provide the pumping water level, delivery height, pipe length and diameter, and required outlet pressure for selection review.
