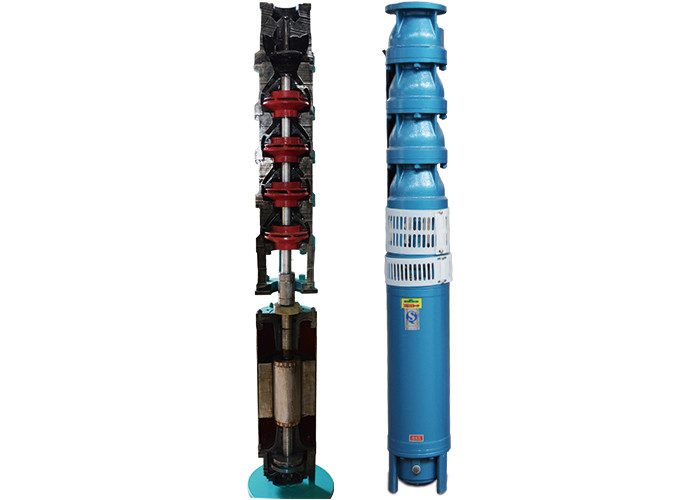

Vertical 8 Inch Borehole Submersible Pumps 12-465m Head High Performance

MOQ: 1 set
Price: Negotiable
Standard Packaging: Submersible borehole pumps are packed by wooden case or as your request.
Delivery Period: Within 2-5 working days upon receipt of payment
Payment Method: T/T, Western Union
Supply Capacity: 9863 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Henan China
Brand Name
APK
Certification
ISO;CE,BV; TUV; CCC
Model Number
QJ
Head:
15-465m
Flow::
13-86m3/h
Pump Diameter:
200mm
Power::
2.2kw-45kw
Voltage:
380v-1140v
Frequency::
3 Phase 50hz/60hz
Motor:
100% Copper Wire
Highlight:

borehole submersible pumps

,

submersible borehole deep well pumps

Product Description

Head 12-465m 7.5kw 22kw 30kw 37kw 45kw 8 Inch Water Submersible Borehole Pumps





A very competitive reputable OEM&ODM submersible pump manufacturer.


We manufacturing from raw material cast to finished production to package.



Vertical 8 Inch Borehole Submersible Pumps 12-465m Head High Performance 0

Submersible borehole pumps applications:

  1. Residential and commercial building services: circulation in heating and cooling systems, domestic hot water, water supply
  2. Desalination, offshore,jack-up, floating dock,shipyard
  3. Public utilities: water supply and district heating solutions
  4. Agriculture: irrigation systems solutions
  5. Aquaculture: water transport solutions
  6. Mining: water supply and dewatering solutions
Vertical 8 Inch Borehole Submersible Pumps 12-465m Head High Performance 1



Working conditions of submersible borehole pumps:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

  2. Motor must be filled with clean water.

  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.

  4. Water temperatureshould not higher than 20 ℃.

  5. Sand content of the water (by quality) not more than 0.01%.

  6. Water PH 6.5~8.5.

  7. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.

  8. The content of chloridion in water shouldnot be higher than 400mg/l.

  9. The water source must provide enough water for the pump to work continuously.

8 inch submersible borehole pumps parameters:

(It is regular submersible pump type in Shenlong pump factory, stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v, etc. Please kindly choose submersible pump type you are interested.)



Diameter Model Motor Power Flow range Meter range
Inch (") QJ Series (kw) hp m3/h m
8" 200QJ15-81/6 7.5 10 13-17 68-92
8" 200QJ20-189/14 22 30 18-22 160-217
8" 200QJ20-230/17 25 35 18-22 195-265
8" 200QJ20-338/25 37 50 18-22 287-388
8" 200QJ20-351/26 45 60 18-22 298-403
8" 200QJ25-154/11 18.5 25 23-27 138-184
8" 200QJ25-168/12 22 30 23-27 140-195
8" 200QJ25-308/22 37 50 23-27 260-355
8" 200QJ32-176/11 30 40 29-35 148-203
8" 200QJ32-182/14 30 40 29-35 154-210
8" 200QJ32-234/18 37 50 29-35 199-270
8" 200QJ32-273/21 45 60 29-35 232-313
8" 200QJ40-104/8 18.5 25 37-43 89-124
8" 200QJ40-117/9 22 30 37-43 94-140
8" 200QJ40-130/10 25 35 37-43 114-155
8" 200QJ40-169/13 30 40 37-43 144-201
8" 200QJ40-182/14 37 50 37-43 154-214
8" 200QJ40-195/15 37 50 37-43 166-232
8" 200QJ40-234/18 45 60 37-43 206-277
8" 200QJ50-45/3 10 14 46-54 36-54
8" 200QJ50-52/4 13 18 46-54 42-62
8" 200QJ50-104/8 25 35 46-54 84-124
8" 200QJ50-135/9 30 40 46-54 119-162
8" 200QJ50-143/11 37 50 46-54 121-165
8" 200QJ50-169/13 37 50 46-54 143-195
8" 200QJ50-195/13 45 60 46-54 165-225
8" 200QJ50-195/15 45 60 46-54 165-225
8" 200QJ63-28/2 7.5 10 58-68 24-33
8" 200QJ63-84/6 25 35 58-68 72-96
8" 200QJ63-98/7 30 40 58-68 84-114
8" 200QJ63-112/8 30 40 58-68 93-131
8" 200QJ63-126/9 37 50 58-68 100-147
8" 200QJ63-140/10 45 60 58-68 120-164
8" 200QJ63-154/11 45 60 58-68 130-180
8" 200QJ80-33/3 13 18 74-86 28-37
8" 200QJ80-44/4 15 20 74-86 37-50



Vertical 8 Inch Borehole Submersible Pumps 12-465m Head High Performance 2

Customer Case:

200QJ flow 63m3/h, head 80m, 4 sets, 22kw clean water supply for running water

1. Flow: 63m3/h

2. Head: 80m

3. Pump Power: 22kw
4. Application: Pumping clean water

Vertical 8 Inch Borehole Submersible Pumps 12-465m Head High Performance 3

Vertical 8 Inch Borehole Submersible Pumps 12-465m Head High Performance 4
