30hp -100hp Deep Well Submersible Water Pump 3 Phase 18-540m3/h Flow Rate

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Submersible well pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QJ

Detail Information

Head: 5-375m Flow:: 18-540m3/h
Pump Diameter: 175mm-350mm Power:: 30hp/35hp/40hp/50hp/60hp/75hp/85hp/100hp
Voltage: 380v/415v/420v/460v/480v/660v /1140v Frequency:: 3 Phase 50hz/60hz
Motor: 100% Copper Wire Protection Class: IP68
High Light:

submersible water pump

,

submersible underwater pumps

Product Description

30hp 35hp 40hp 50hp 60hp 75hp 85hp 100hp Water Deep Submersible Well Pump Price



Product overview :

QJ series submersible well pump including QJ deep well(borehole)submersible pumps, QJH stainless steel submersible well pumps, QJT bottom-suction submersible pumps and QJR submersible well pumps .



Submersible well pump materials:

  • Impeller: Cast iron HT200, or stainless steel
  • Pump bowl: Cast iron HT200 or stainless steel ss304 / ss316
  • Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
  • Motor Seal: Rubber O-ring seal,mechanical seal
  • Motor regulating sleeve: rubber

Submersible well pump applications:

  • Farmland irrigation, spray irrigation
  • Water supply system for industrial buildings and civil buildings
  • Water distribution system in mountain areas
  • Low-lying areas and dunes
  • Water supply and water drainage system for mines in urban or rural districts
  • Other water conservancy facilities

Submersible well pump overview:

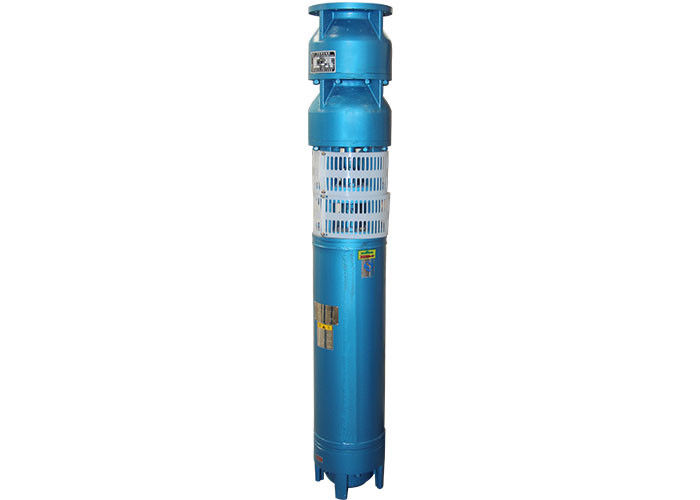

30hp -100hp Deep Well Submersible Water Pump 3 Phase 18-540m3/h Flow Rate 0

30hp -100hp Deep Well Submersible Water Pump 3 Phase 18-540m3/h Flow Rate 1

Submersible well pump parameters:

Model

Motor Power

Flow range

Meter range

Outlet size

Rated current

QJ Series (kw) (hp) (m3/h) (m) Inch (") A
175QJ10-121/9 7.5 10 9/11 96-140 1.2" 18.4
175QJ10-135/10 9.2 13 9/11 130-140 1.2" 22.1
175QJ10-150/11 9.2 13 9/11 144-146 1.2" 22.1
175QJ10-165/12 11 15 9/11 158-172 1.2" 26.1
175QJ10-180/13 11 15 9/11 173-187 1.2" 26.1
175QJ10-195/14 13 18 9/11 187-203 1.2" 30.1
175QJ20-143/11 15 20 18-22 120-165 2" 49.7
200QJ15-81/6 7.5 10 13-17 68-92 3" 18
200QJ20-93/7 10 14 18-22 79-107 2" 24.7
200QJ20-108/8 13 18 18-22 92-125 2" 29.7
200QJ20-121/9 13 18 18-22 103-140 2" 29.7
200QJ20-135/10 15 20 18-22 115-156 2" 33.9
200QJ25-182/13 22 30 23-27 150-210 2" 48.2
200QJ32-160/10 25 34 29-35 136-184 3" 54.5
200QJ40-182/14 37 50 37-43 154-214 3" 79.7
200QJ50-105/7 25 34 46-54 84-126 3" 54.5
200QJ50-117/9 25 34 46-54 94-140 3" 54.5
200QJ50-120/8 30 41 46-54 96-144 3" 65.4
200QJ50-143/11 37 50 46-54 121-165 3" 79.7
200QJ100-30/2 15 20 80-120 26-32 4" 33.9
250QJ50-200/10 45 61 46-54 170-230 3" 94.1
250QJ50-240/12 55 75 46-54 204-276 3" 127.9
250QJ50-280/14 63 86 46-54 268-322 3" 152.3
250QJ63-100/5 30 41 58-68 75-100 3" 64.2
250QJ63-200/10 55 75 58-68 170-230 3" 114.3
250QJ63-220/11 63 86 58-68 180-253 3" 127.9
250QJ63-260/13 75 102 58-68 220-299 3" 152.3
250QJ63-300/15 90 122 58-68 205-343 3" 182.8
250QJ140-60/4 37 50 130-150 52-69 5" 77.8
250QJ160-30/2 22 30 148-172 25-35 5" 47.9
250QJ160-45/3 30 41 148-172 38-51 5" 64.2
250QJ160-60/4 45 61 148-172 52-69 5" 94.1
250QJ160-75/5 55 75 148-172 65-86 5" 114.3
300QJ200-100/5 90 122 186-214 85-115 6" 183.8
300QJ200-120/6 110 150 186-214 100-138 6" 222.1
300QJ240-22/1 22 30 223-257 18-25 6" 249.5
300QJ240-44/2 45 61 223-257 37-51 6" 47.3
300QJ240-66/3 75 102 223-257 56-76 6" 95.4
300QJ240-88/4 100 136 223-257 75-101 6" 154.1
300QJ400-40/1 75 102 368-432 38-42 8" 152.3
300QJ400-80/2 160 218 368-432 76-84 8" 284.4
300QJ400-120/3 220 299 368-432 117-123 8" 439.2
300QJ500-60/4 140 190 460-540 57-63 8" 249.5
300QJ500-75/5 180 245 460-540 72-78 8" 317.5

If these submersible well pump parameters do not meet your demand, please feel free to contact us. We will choose one model for you.



Working conditions of submersible well pump:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

  2. Motor must be filled with clean water.

  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.

  4. Water temperatureshould not higher than 20 ℃.

  5. Sand content of the water (by quality) not more than 0.01%.

  6. Water PH 6.5~8.5.

  7. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.

  8. The content of chloridion in water shouldnot be higher than 400mg/l.

  9. The water source must provide enough water for the pump to work continuously.
