Stainless Steel Or Cast Iron Water Deep Well Submersible Pump 25hp 18.5kw

Minimum Order Quantity : 1 piece Price : Inquiry or E-mail, please
Packaging Details : 25hp submersible pump is packed with seaworthy export standard plywood case. Delivery Time : 7-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces/month
Place of Origin: China Brand Name: APK
Certification: ISO/CE/BV/TUV/SGS/ABS Model Number: 25hp Submersible Pump

Detail Information

Flow Rate: 18-214m3/h Head Rate: 17-210m
Motor Power: 18.5kw/25hp Submersible Pump Power Supply: 3phase; 380v/440v/660v; 50hz/60hz
Material: Cast Iron/SS304/SS316/SS316L Warranty: 12 Months
High Light:

deep well submersible water pump

,

submersible deep well pumps

Product Description



25hp 18.5kw Vertical Multistage Clean Water Deep Well Submersible Water Pump



25hp submersible water pump types:

(Flow rate, head meters, material, a available submersible water pump model will be chose)

Model Motor Power Flow Range Head Range
QJ(H) Series kw hp m3/h m
200QJ(H)20-175/13 18.5 25 18-22 150-210
200QJ(H)25-154/11 18.5 25 23-27 138-184
200QJ(H)32-117/9 18.5 25 29-35 90-132
200QJ(H)40-104/8 18.5 25 37-43 89-124
200QJ(H)50-78/6 18.5 25 46-54 63-93
200QJ(H)80-55/5 18.5 25 74-86 47-63
250QJ(H)50-80/4 18.5 25 46-54 68-92
250QJ(H)63-60/3 18.5 25 58-68 51-69
250QJ(H)125-32/2 18.5 25 116-134 27-37
250QJ(H)140-30/2 18.5 25 130-150 26-34
300QJ(H)200-20/1 18.5 25 186-214 17-23



 25hp submersible pump overview:

  25hp clean water submersible pump is powered by electricity, AC submersible motor normally. If you or your clients would like to powered by solar panels, connecting an inverter from AC to DC.

 25hp water submersible pump is pumping clean water or sea water, from deep well, river, tank, vessel, reservoir, lake and so on, which applied for agricultural farmland irrigation, hills and mountain, mine industry, clean drinking water, fountain  projects.

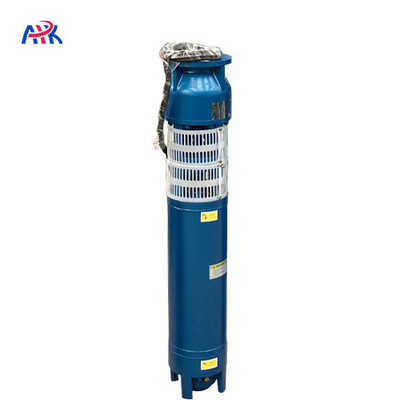

Stainless Steel Or Cast Iron Water Deep Well Submersible Pump 25hp 18.5kw 0

Notes for water submersible pump

1. Checking the power cable, no broken

2. Turning the impeller by wrench, confirm it can be turned smoothly

3. Checking the drain hole at the bottom of the water pump. If it is loose, tighten it

4. Fulling the motor with clean drinking water

5. Tighten the screws of the water injection hole and exhaust hole on the upper part of the motor

6. After installing the pump into the well, observe the flow rate and current. If the current is common and the flow is small, it may be reversed. Adjust the steering. If the current is still high and the flow is small, there may be water leakage from the pipeline connection. Check the pipeline.

Stainless Steel Or Cast Iron Water Deep Well Submersible Pump 25hp 18.5kw 1



Water submersible pump working conditions:

1. The motor needs to be filled fully with clean water before use and tighten the water injection bleed bolt.

2. Testing run on land shall not exceed one second

3. The motor must be completely submerged

4. Lead can cable joints shall be operated as required



Why choose Zhengzhou Shenlong Pump Industry CO.,Ltd?

Zhengzhou Shenlong Pump Industry CO.,Ltd created its own value chain. With trust, expertise, challenge, and pleasure as our core values. We listen to our customers' requirements and provide best solutions accordingly with minimized cost. APK grows together with ourselves, customers and society, looking partners all over the world.

1. Factory direct price

2. Professional knowledge and attentive service

3. Strict quality inspection and timely delivery

4. Highly value every order, no matter how small it is.

5. Offer confidentiality agreement "business secret contract"
