315KW 250KW 280KW Sewage Cutting Pump Sewage Treatment Plant 6000M3/H
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
Minimum Order Quantity : | 1 piece | Price : | please feel free to contact us |
---|---|---|---|
Packaging Details : | Submersible sewage pump is packed with wooden case or 20 inch container. | Delivery Time : | 2-5 working days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 8596 pieces per request |
Place of Origin: | China | Brand Name: | APK |
---|---|---|---|
Certification: | ISO; CE | Model Number: | Sewage Submersible Pump |
Detail Information |
|||
Flow: | 8m3/h 12m3/h | Head: | 22m 15m |
---|---|---|---|
Power: | 1.1kw | Speed: | 2900 R/min |
Material: | Cast Iron/stainless Steel | ||
Highlight: | submersible sewage water pump,submersible dirty water pump |
Product Description

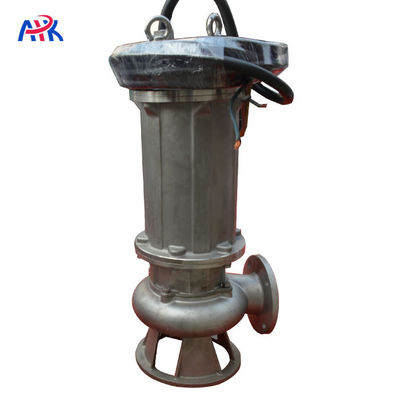

60m3/h 50m 22kw 30hp SS304 Sewage Drainage Non-Clogging Industrial Submersible Water Pump
Non clogging submersible water pump working conditions:
Proper medium: liquids with chemical property similar to pure water should be non-corrosive. Solid size should be no larger than 30% of the pump suction diameter. Fiber length should not be over 2.5 times of the pump suction diameter. When the medium density is more than 1.05, the motor power should be increased accordingly to prevent the motor from overload operation.
Non clogging submersible water pump applications:
It is especially suitable for underground water pumping in rural areas, field drainage and irrigation, garden irrigation and household water use, and can also be used to remove industrial water accumulation, water supply and drainage for construction and breeding industry.
Non clogging submersible water pump models:
Outlet diameter | Model | Discharge flow | Head | Power | |
mm | WQ type | m3/h | m | kw | hp |
50 | 50WQ15-20-2.2 | 15 | 20 | 2.2 | 3 |
65 | 65WQ25-20-3 | 25 | 20 | 3 | 4 |
80 | 80WQ50-13-4 | 50 | 13 | 4 | 5 |
80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 |
100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 |
100 | 100WQ100-15-7.5 | 100 | 15 | 7.5 | 10 |
150 | 150WQ145-9-7.5 | 145 | 9 | 7.5 | 10 |
100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 |
150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 |
200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 |
100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 |
150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 |
200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 |
100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 |
150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 |
200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 |
250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 |
100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 |
150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 |
200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 |
250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 |
150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 |
200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 |
250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 |
300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 |
150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 |
200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 |
250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 |
350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 |
Sewage water submersible pump installation:
The levelness of the coupling device should be calibrated by a level when coupling installation is adopted. Horizontal level
tolerance should not exceed 0.1mm/m. Use the measure gage to calibrate parallelism of two coupling rods to ensure the parallelism tolerance will not exceed 0.2mm/m.
Tighten the anchor bolt to make sure there is no looseness between the anchor bolt and concrete in case of bad influence on pump performance when starting.
For easy maintenance and safe use, install a regulating valve on the outlet pipe and a pressure gauge near the outlet to guarantee the normal operation within the rated performance range, which lengthens the lifetime of pumps. Rotate the impeller from the suction side after installation. Disassemble the pump and find out the reasons if there is friction or stuck pump.
The pump installation can be divided into three types, movable type, fixed type and coupling type
