Lake Rain Dirty Water Submersible Sewage Pump IP68 Resistant 11kw 15hp
  • name
  • name
  • name
  • name

Lake Rain Dirty Water Submersible Sewage Pump IP68 Resistant 11kw 15hp

MOQ: 1 piece
Price: Please feel free to contact us
Standard Packaging: Submersible sewage pump is packed with wooden case or 20 inch container.
Delivery Period: 2-5 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 8695 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Henan, China
Brand Name
APK
Certification
ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER
Model Number
WQ
Flow:
35m3/h 100m3/h 130m3/h 150m3/h 300m3/h Submersible Sewage Pump
Head:
50m 25m 15m 13m 7m Submersible Sewage Pump
Power:
11kw 15hp Sewage Pump
Voltage:
220v/380v/440v Or Other
Frequency:
3 Phase 50hz/60hz
Material:
Cast Iron/stainless Steel
Motor:
Copper Wire
Protection Class:
IP68
Highlight:

submersible sewage water pump

,

submersible dirty water pump

Product Description

11kw 15hp submersible sewage pump is maximum flow is 300m3/h, however, head is low. Main material is cast iron and stainless steel.



Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.



The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.



11kw 15hp submersible sewage pump overview:

  1. Flow: 35m3/h 100m3/h 130m3/h 150m3/h 300m3/h submersible sewage pump
  2. Head: 50m 25m 15m 13m 7m submersible sewage pump
  3. Power: 11kw 15hp submersible sewage pump
  4. Voltage: 380v/440v or as per request
  5. Frequency: 3 phase 50hz/60hz
  6. Material: Cast iron/stainless steel

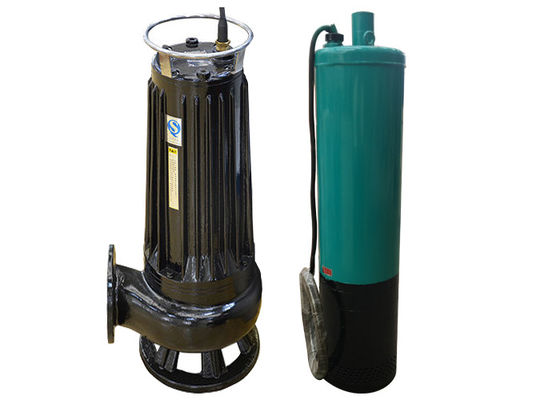

Lake Rain Dirty Water Submersible Sewage Pump IP68 Resistant 11kw 15hp 0



Lake Rain Dirty Water Submersible Sewage Pump IP68 Resistant 11kw 15hp 1



WQ submersible sewage pump parameters:



Model Outlet diameter Flow  Head Power Speed



WQ Series



 mm m3/h m kw hp r/min



WQ50-18-30-3



 50 18 30 3 4 2900



WQ50-40-15-4



 50 40 15 4 5.5 2900



WQ50-25-32-5.5



 50 25 32 5.5 7 2900



WQ50-20-40-7.5



 50 20 40 7.5 10 2900



WQ65-25-15-2.2



 65 25 15 2.2 3 2900



WQ65-25-30-4



 65 25 30 4 5 2900



WQ65-30-40-7.5



 65 30 40 7.5 10 2900



WQ65-35-50-11



 65 35 50 11 15 2900



WQ80-43-13-3



 80 43 13 3 4 2900



WQ80-40-15-4



 80 40 15 4 5 2900



WQ80-65-25-7.5



 80 65 25 7.5 10 2900



WQ100-110-10-5.5



 100 110 10 5.5 7 1450



WQ100-100-15-7.5



 100 100 15 7.5 10 1450



WQ100-80-20-7.5



 100 80 20 7.5 10 1450



WQ100-100-25-11



 100 100 25 11 15 1450



WQ125-130-15-11



 125 130 15 11 15 1450



WQ150-150-13-11



 150 150 13 11 15 1450



WQ200-300-7-11



 200 300 7 11 15 1450



It is one part of 11kw 15hp submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
