Construction Submersible Drainage Water Pumps Fecal Rain Sewage 37kw 50hp

Product Details:
Place of Origin: Henan, China
Brand Name: APK
Certification: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER
Model Number: WQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Please feel free to contact us
Packaging Details: Submersible sewage pump is packed with wooden case or 20 inch container.
Delivery Time: 2-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8695 pieces per month

Detail Information

Head: 30m 25m 12m Submersible Sewage Pump Flow: 200m3/h 350m3/h 600m3/h Submersible Sewage Pump
Power: 37kw 50hp Submersible Sewage Pump Frequency: 3 Phase 50hz/60hz
Voltage: 380v/440v Or As Per Request Material: Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904
Motor: Copper Wire Protection Class: IP68
High Light:

submersible sewage water pump

,

submersible dirty water pump

Product Description

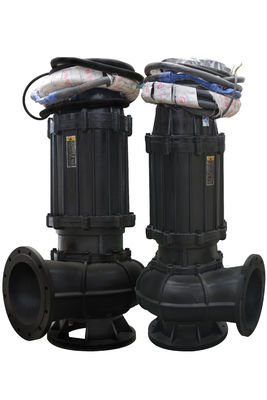

Construction Fecal Rain Drainage Submersible Sewage Water Pump 37kw 50hp





Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.



The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.



37kw 50hp submersible sewage pump overview:

  1. Flow: 200m3/h 350m3/h 600m3/h submersible sewage pump
  2. Head: 30m 25m 12m submersible sewage pump
  3. Power: 37kw 50hp submersible sewage pump
  4. Voltage: 380v/440v or as per request
  5. Frequency: 3 phase 50hz/60hz
  6. Material: Cast iron/ss304/ss316/ss316l/duplex stainless

Construction Submersible Drainage Water Pumps Fecal Rain Sewage 37kw 50hp 0



Construction Submersible Drainage Water Pumps Fecal Rain Sewage 37kw 50hp 1





WQ submersible sewage pump parameters:



Model Outlet diameter (mm) Flow (m3/h) Head (m) Power (kw) Speed (r/min)
WQ50-18-30-3 50 18 30 3 2900
WQ50-40-15-4 50 40 15 4 2900
WQ50-25-32-5.5 50 25 32 5.5 2900
WQ50-20-40-7.5 50 20 40 7.5 2900
WQ65-25-15-2.2 65 25 15 2.2 2900
WQ65-25-30-4 65 25 30 4 2900
WQ65-30-40-7.5 65 30 40 7.5 2900
WQ65-35-50-11 65 35 50 11 2900
WQ65-35-60-15 65 35 60 15 2900
WQ80-43-13-3 80 43 13 3 2900
WQ80-40-15-4 80 40 15 4 2900
WQ80-65-25-7.5 80 65 25 7.5 2900
WQ100-110-10-5.5 100 110 10 5.5 1450
WQ100-100-15-7.5 100 100 15 7.5 1450
WQ100-80-20-7.5 100 80 20 7.5 1450
WQ100-100-25-11 100 100 25 11 1450
WQ100-100-30-15 100 100 30 15 1450
WQ125-130-15-11 125 130 15 11 1450
WQ125-130-20-15 125 130 20 15 1450
WQ150-150-13-11 150 150 13 11 1450
WQ150-180-15-15 150 180 15 15 1450
WQ150-180-20-18.5 150 180 20 18.5 1450
WQ150-180-25-22 150 180 25 22 1450
WQ150-180-30-30 150 180 30 30 1450
WQ150-130-30-22 150 130 30 22 1450
WQ150-200-30-37 150 200 30 37 1450
WQ200-300-7-11 200 300 7 11 1450
WQ200-250-11-15 200 250 11 15 1450
WQ200-250-15-18.5 200 250 15 18.5 1450
WQ200-400-10-22 200 400 10 22 1450
WQ200-400-13-30 200 400 13 30 1450
WQ200-300-15-22 200 300 15 22 1450
WQ200-250-22-30 200 250 22 30 1450
WQ200-350-25-37 200 350 25 37 1450
WQ250-500-7-22 250 500 7 22 1450
WQ250-600-9-30 250 600 9 30 1450
WQ250-600-9-37 250 600 9 37 1450



It is one part of 37kw 50hp submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
