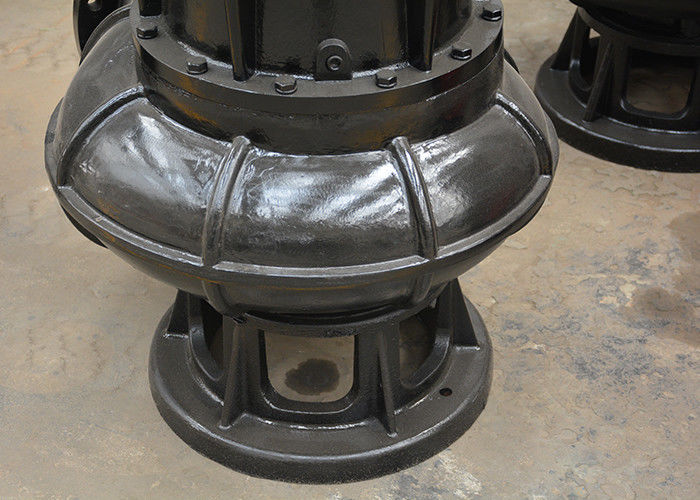

IP68 Submersible Wastewater Pump Non Clogging Stainless Steel Material

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Submersible sewage pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 8695 pieces per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE Model Number: Sewage Submersible Pump

Detail Information

Head: 30m 15m 12m Submersible Sewage Pump Flow: 400m3/h 800m3/h 600m3/h Submersible Sewage Pump
Power: 45kw 60hp Submersible Sewage Pump Frequency: 3 Phase 50hz/60hz
Voltage: 380v/440v Or As Per Request Material: Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904
Motor: Copper Wire Protection Class: IP68
High Light:

submersible sewage water pump

,

submersible dirty water pump

Product Description

45kw 60hp Non Clogging Waste Fecal Rain Drainage Submersible Sewage Water Pump





Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.



The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.

  • Single channel or double channel impeller
  • Non-clogging
  • Titanium alloy mechnical sealing
  • Stainless steel material, corrosive resistant

45kw 60hp submersible sewage pump overview:

  1. Flow: 400m3/h 800m3/h 600m3/h submersible sewage pump
  2. Head: 30m 15m 12m submersible sewage pump
  3. Power: 37kw 50hp submersible sewage pump
  4. Voltage: 380v/440v or as per request
  5. Frequency: 3 phase 50hz/60hz
  6. Material: Cast iron/ss304/ss316/ss316l/duplex stainless



IP68 Submersible Wastewater Pump Non Clogging Stainless Steel Material 0



IP68 Submersible Wastewater Pump Non Clogging Stainless Steel Material 1





WQ submersible sewage pump parameters:



Model Outlet diameter (mm) Flow (m3/h) Head (m) Power (kw) Speed (r/min)
WQ50-18-30-3 50 18 30 3 2900
WQ50-40-15-4 50 40 15 4 2900
WQ50-25-32-5.5 50 25 32 5.5 2900
WQ50-20-40-7.5 50 20 40 7.5 2900
WQ65-25-15-2.2 65 25 15 2.2 2900
WQ65-25-30-4 65 25 30 4 2900
WQ65-30-40-7.5 65 30 40 7.5 2900
WQ65-35-50-11 65 35 50 11 2900
WQ65-35-60-15 65 35 60 15 2900
WQ80-43-13-3 80 43 13 3 2900
WQ80-40-15-4 80 40 15 4 2900
WQ80-65-25-7.5 80 65 25 7.5 2900
WQ100-110-10-5.5 100 110 10 5.5 1450
WQ100-100-15-7.5 100 100 15 7.5 1450
WQ100-80-20-7.5 100 80 20 7.5 1450
WQ100-100-25-11 100 100 25 11 1450
WQ100-100-30-15 100 100 30 15 1450
WQ125-130-15-11 125 130 15 11 1450
WQ125-130-20-15 125 130 20 15 1450
WQ150-150-13-11 150 150 13 11 1450
WQ150-180-15-15 150 180 15 15 1450
WQ150-180-20-18.5 150 180 20 18.5 1450
WQ150-180-25-22 150 180 25 22 1450
WQ150-180-30-30 150 180 30 30 1450
WQ150-130-30-22 150 130 30 22 1450
WQ150-200-30-37 150 200 30 37 1450
WQ200-300-7-11 200 300 7 11 1450
WQ200-250-11-15 200 250 11 15 1450
WQ200-250-15-18.5 200 250 15 18.5 1450
WQ200-400-10-22 200 400 10 22 1450
WQ200-400-13-30 200 400 13 30 1450
WQ200-400-30-45 200 400 30 45 1450
WQ200-300-15-22 200 300 15 22 1450
WQ200-250-22-30 200 250 22 30 1450
WQ200-350-25-37 200 350 25 37 1450
WQ250-500-7-22 250 500 7 22 1450
WQ250-600-9-30 250 600 9 30 1450
WQ250-600-9-37 250 600 9 37 1450
WQ250-600-15-45 250 600 15 45 1450
WQ300-800-12-45 300 800 12 45 1450



It is one part of 45kw 60hp submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
