315KW 250KW 280KW Sewage Cutting Pump Sewage Treatment Plant 6000M3/H
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 piece | Price : | Inquiry or E-mail, please |
|---|---|---|---|
| Packaging Details : | Ex.proof sea water submersible pump is packed with seaworthy export standard plywood case | Delivery Time : | 7-25 working days after payment confirmation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 3000 pieces per month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | CE;ISO;ABS;SGS;BV | Model Number: | Ex. proof Submersible Pump |
|
Detail Information |
|||
| Flow: | 45m3/hr Submersible Pump | Head Meters: | 35m Submersible Pump |
|---|---|---|---|
| Power: | 7.5kw Submersible Pump | Voltage: | 380v-660v |
| Frequency: | 3phase 50hz/60hz | Material: | Cast Iron/stainless Steel |
| High Light: | 30m Head Submersible Sewage Pump,Sea Water Submersible Sewage Pump,45m3/h Submersible Sewage Pump |
||
Product Description

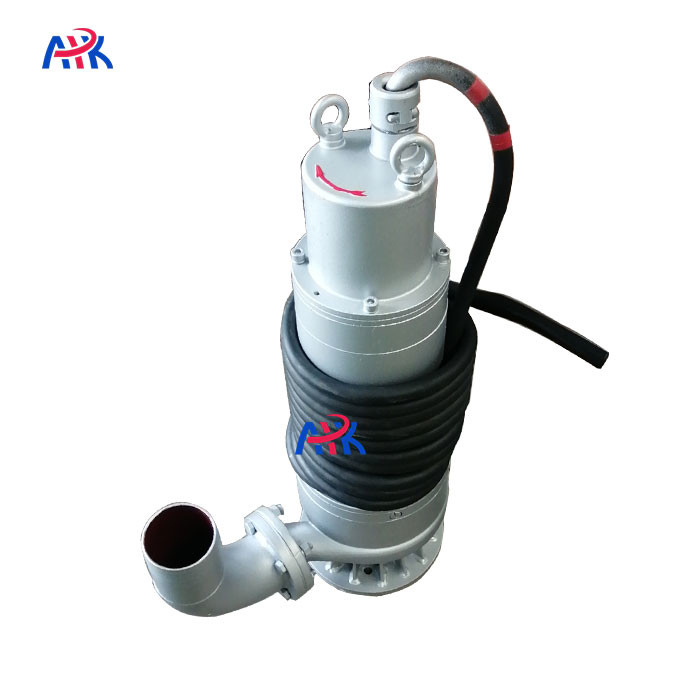

45m3/hr 50m3/hr 7.5kw Cast Iron Ex-Submersible Sea Water Pump with Soft Starter Control Panel
Ship Design office based in Greece , mainly designing ship boat installation. Their customer was looking for an ex. proof submersible sea water pump with 30m Head, 45m3/h to be installed inside a Ship's Fore Peak Tank delivering water to a ballast water treatment equipment.
Ballast water treatment industry has been historically one of the main industrial sectors in which APK solutions have met its demanding needs effectively. Numerous satisfied clients support APK Ex-submersible sea water pump made solutions. Our experience in the sector allows us to drive our clients towards efficiency improvement whichever process they are in.
Through overall and detailed communication, accordingly to client’s actual demands We recommend WQB50-30 Ex-submersible sea water pump, certificates BV class approval. Ex-Submersible Sea Water Pump has to be integrated with the main system Control Panet. Supplied electrical diagram.
Ex-submersible sea water pump type:
Model: WQB50-30-7.5kw
-- Flow rate: 50m3/hr
-- Head meters: 30m
-- Power: 7.5kw
-- Protection grade:IP68
-- Power supply: 3phase/ 440V/ 60Hz
-- Ex. Proof grade: EXDIIBT4
-- Discharge diameter: DN80mm

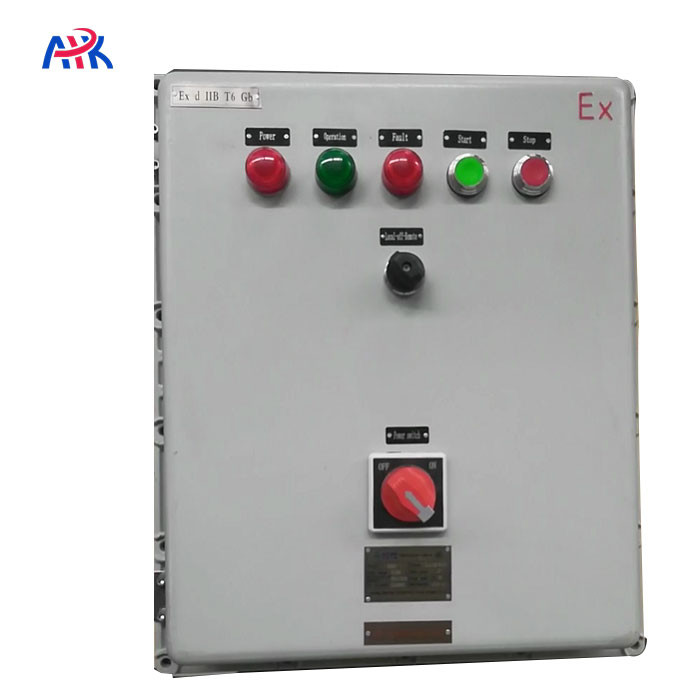

-- Control panel: EXDIIBT6 7.5KW soft starter with ABB or Schneider components
WQB series flame proof submersible sewage pump is a latest type of flame proof products developed by our company, flame proof performance is in accordance with GB3836.1-2010 Explosive Environment Part Ⅰ: General requirements for equipment and GB3836.2-2010 Explosive Environment Part Ⅱ: Flame-proof Shell ”d”Protection Equipment made of flame proof standards Explosion-proof mark: ExdllBT4/CT4. The whole series products have acquired explosion proof certification, type completed and convenient selection.
Ex-submersible pump types:
(Notice: flow rate, head meters, material, ODM OEM is available)
| Model | Flow | Head | Power | Outlt diameter |
| WQB Series | m3/hr | m | kw | mm |
| WQB15-22-2.2 | 15 | 22 | 2.2 | 50 |
| WQB35-7-2.2 | 35 | 7 | 2.2 | 50 |
| WQB25-15-3 | 25 | 15 | 3 | 50 |
| WQB40-12-3 | 40 | 12 | 3 | 65 |
| WQB52-7-3 | 52 | 7 | 3 | 80 |
| WQB15-32-4 | 15 | 32 | 4 | 50 |
| WQB20-30-4 | 20 | 30 | 4 | 50 |
| WQB50-15-4 | 50 | 15 | 4 | 80 |
| WQB75-8-4 | 75 | 8 | 4 | 100 |
| WQB12-50-5.5 | 12 | 50 | 5.5 | 50 |
| WQB20-40-5.5 | 20 | 40 | 5.5 | 50 |
| WQB30-30-5.5 | 30 | 30 | 5.5 | 50 |
| WQB40-20-5.5 | 40 | 20 | 5.5 | 50 |
| WQB70-15-5.5 | 70 | 15 | 5.5 | 80 |
| WQB100-0-5.5 | 100 | 10 | 5.5 | 100 |
| WQB25-50-7.5 | 25 | 50 | 7.5 | 50 |
| WQB50-30-7.5 | 50 | 30 | 7.5 | 50 |
| WQB75-20-7.5 | 75 | 20 | 7.5 | 80 |
| WQB100-15-7.5 | 100 | 15 | 7.5 | 100 |
| WQB145-10-7.5 | 145 | 10 | 7.5 | 100 |
| WQB20-65-11 | 20 | 65 | 11 | 50 |
| WQB40-40-11 | 40 | 40 | 11 | 80 |
| WQB50-35-11 | 50 | 35 | 11 | 80 |
| WQB80-20-11 | 80 | 20 | 11 | 100 |
| WQB150-15-11 | 150 | 15 | 11 | 150 |
| WQB200-10-11 | 200 | 10 | 11 | 150 |
| WQB40-50-15 | 40 | 50 | 15 | 80 |
| WQB100-22-15 | 100 | 22 | 15 | 100 |
| WQB200-15-15 | 200 | 15 | 15 | 150 |
| WQB300-10-15 | 300 | 10 | 15 | 200 |
| WQB80-35-18.5 | 80 | 35 | 18.5 | 100 |
| WQB150-30-22 | 150 | 30 | 22 | 150 |
| WQB300-15-22 | 300 | 15 | 22 | 200 |
| WQB400-15-30 | 400 | 15 | 30 | 200 |
| WQB150-45-37 | 150 | 45 | 37 | 150 |
| WQB500-20-45 | 500 | 20 | 45 | 200 |
| WQB800-20-75 | 800 | 20 | 75 | 300 |
| WQB600-28-75 | 600 | 28 | 75 | 250 |
| WQB300-60-90 | 300 | 60 | 90 | 200 |
| WQB900-20-90 | 900 | 20 | 90 | 300 |
| WQB400-60-110 | 400 | 60 | 110 | 200 |
| WQB600-40-110 | 600 | 40 | 110 | 250 |
| WQB700-32-10 | 700 | 32 | 110 | 250 |
| WQB1000-25-110 | 1000 | 25 | 110 | 300 |
| WQB1500-25-160 | 1500 | 25 | 160 | 400 |
