75kw 100hp Submersible Sewage Pump 3 Phase 50hz / 60hz IP68 Protection

MOQ:	1 piece
Price:	Please feel free to contact us
Standard Packaging:	Submersible sewage pump is packed with wooden case or 20 inch container.
Delivery Period:	2-5 working days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	8695 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Henan, China

Brand Name

APK

Certification

ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER

Model Number

Flow:

400m3/h 600m3/h 800m3/h 1000m3/h 1300m3/h 1500m3/h Submersible Sewage Pump

Head:

60m 25m 20m 15m 13m 10m Submersible Sewage Pump

Power:

75kw 100hp Submersible Sewage Pump

Frequency:

3 Phase 50hz/60hz

Voltage:

380v/440v Or As Per Request

Material:

Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904

Motor:

Copper Wire

Protection Class:

IP68

Highlight:

submersible sewage water pump

submersible dirty water pump

Product Description

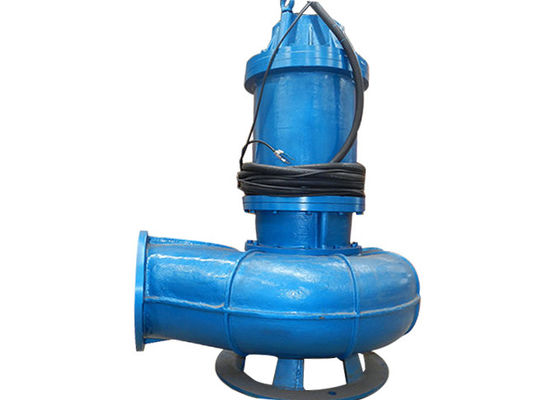

75kw 100hp Submersible Sewage Pump 3 Phase 50hz / 60hz IP68 Protection

Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.

The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.

Single channel or double channel impeller
Non-clogging
Titanium alloy mechnical sealing
Stainless steel material, corrosive resistant

75kw 100hp submersible sewage pump overview:

Flow: 400m3/h 600m3/h 800m3/h 1000m3/h 1300m3/h 1500m3/h submersible sewage pump
Head: 60m 25m 20m 15m 13m 10m submersible sewage pump
Power: 75kw 100hp submersible sewage pump
Voltage: 380v/440v or as per request
Frequency: 3 phase 50hz/60hz
Material: Cast iron/ss304/ss316/ss316l/duplex stainless/ss904

75kw 100hp Submersible Sewage Pump 3 Phase 50hz / 60hz IP68 Protection 0

75kw 100hp Submersible Sewage Pump 3 Phase 50hz / 60hz IP68 Protection 1

WQ submersible sewage pump parameters:

Model	Outlet diameter (mm)	Flow (m3/h)	Head (m)	Power (kw)	Speed (r/min)
WQ50-18-30-3	50	18	30	3	2900
WQ50-40-15-4	50	40	15	4	2900
WQ50-25-32-5.5	50	25	32	5.5	2900
WQ50-20-40-7.5	50	20	40	7.5	2900
WQ65-25-15-2.2	65	25	15	2.2	2900
WQ65-25-30-4	65	25	30	4	2900
WQ65-30-40-7.5	65	30	40	7.5	2900
WQ65-35-50-11	65	35	50	11	2900
WQ65-35-60-15	65	35	60	15	2900
WQ80-43-13-3	80	43	13	3	2900
WQ80-40-15-4	80	40	15	4	2900
WQ80-65-25-7.5	80	65	25	7.5	2900
WQ100-110-10-5.5	100	110	10	5.5	1450
WQ100-100-15-7.5	100	100	15	7.5	1450
WQ100-80-20-7.5	100	80	20	7.5	1450
WQ100-100-25-11	100	100	25	11	1450
WQ100-100-30-15	100	100	30	15	1450
WQ125-130-15-11	125	130	15	11	1450
WQ125-130-20-15	125	130	20	15	1450
WQ150-150-13-11	150	150	13	11	1450
WQ150-180-15-15	150	180	15	15	1450
WQ150-180-20-18.5	150	180	20	18.5	1450
WQ150-180-25-22	150	180	25	22	1450
WQ150-180-30-30	150	180	30	30	1450
WQ150-130-30-22	150	130	30	22	1450
WQ150-200-30-37	150	200	30	37	1450
WQ150-200-50-55	150	200	50	55	1450
WQ200-300-7-11	200	300	7	11	1450
WQ200-250-11-15	200	250	11	15	1450
WQ200-250-15-18.5	200	250	15	18.5	1450
WQ200-400-10-22	200	400	10	22	1450
WQ200-400-13-30	200	400	13	30	1450
WQ200-400-30-45	200	400	30	45	1450
WQ200-400-32-55	200	400	32	55	1450
WQ200-400-45-75	200	400	45	75	1450
WQ200-300-15-22	200	300	15	22	1450
WQ200-250-22-30	200	250	22	30	1450
WQ200-350-25-37	200	350	25	37	1450
WQ250-500-7-22	250	500	7	22	1450
WQ250-600-9-30	250	600	9	30	1450
WQ250-600-9-37	250	600	9	37	1450
WQ250-600-15-45	250	600	15	45	1450
WQ250-600-20-55	250	600	20	55	1450
WQ250-600-25-75	250	600	25	75	1450
WQ300-800-12-45	300	800	12	45	1450
WQ300-800-15-55	300	800	15	55	1450
WQ300-800-20-75	300	800	20	75	1450
WQ350-1100-10-55	350	1100	10	55	1450
WQ350-1000-15-75	350	1000	15	75	1450
WQ400-1500-8-55	400	1500	8	55	980
WQ400-1300-13-75	400	1300	13	75	1450
WQ400-1500-10-75	400	1500	10	75	980

It is one part of 75kw 100hp submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
