Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Deep well submersible pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 8578 pieces per month
Place of Origin: Henan, China Brand Name: APK
Certification: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER Model Number: QJ

Detail Information

Pump Size: 10 12 18 Inch Well Submersible Pump Flow: 46-850m3/h Submersible Pump
Head: 12-375m Power: 75kw 100hp Submersible Water Pump
Frequency: 3 Phase 60hz/50hz Voltage: 380v 420v 660v Or As Per Request
Material: Cast Iron/SS304/SS316/SS316L/Duplex Stainless/SS904 Quality Warranty: One Year Or More
Install: Vertical
High Light:

deep well submersible water pump

,

submersible deep well pumps

Product Description

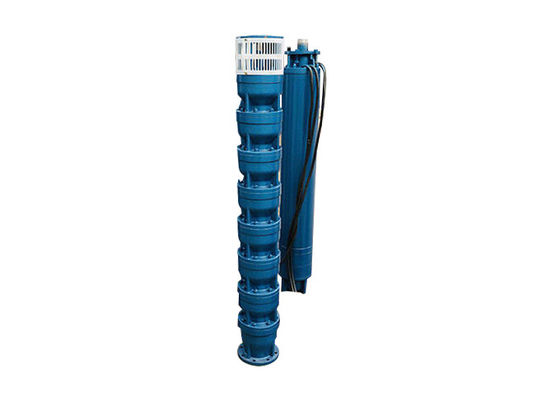

Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m



Submersible well water pump can be divided into two kinds, one is shallow well pump, the other is deep well submersible pump. Shallow well pump, as name suggests, used for shallow well. It is a kind of centrifugal pump with long transmission shaft, its structure is simple and high efficient. Compared with shallow one, deep well submersible pump is more broadly used.
Submersible well water pump is an important water supply device. It is used in residential water supply, agricultural irrigation, industrial cooling, sea water lift, geothermal heating and ship load.
It is consists of four main parts. They are water pump, submersible electric motor, water pipe and control switch.


Submersible well pump overview:

  1. Pump diameter: 10 12 18 Inch well submersible pump
  2. Flow rate: 46-850m3/h submersible pump
  3. Head rate: 12-375m
  4. Motor Power: 75kw100hp submersible water pump
  5. Voltage:380v/420v/440v/660v /1140v or as per request
  6. Frequency: 3 phase 50hz/60hz
  7. Material: Cast iron/ss304/ss316/ss316L/Duplex stainless/SS904 (pump sets or casting parts)
  8. Install: Vertical

Submersible well pump applications:

  1. Groundwater pumping
  2. Irrigation system
  3. Water supply system
  4. Clean water supply
  5. Fountain project
  6. Water drawing system in hills and mountain areas
  7. Drawing water from wells
  8. Water supply and drainage system for industrial or civil buildings
  9. Water supply and drainage system system for mines and factories in cities or villages
  10. Sea water, salt water

SUbmersible pump cable length could be request.

 Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m 0



Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m 1



75kw 100hp submersible  well pump stainless steel material:

Electric Submersible Borehole Deep Well Pumps 100hp 75kw 160m3/H 105m 2


75kw100hp Submersible well pump parameters:

Pump diameter Model Power Flow Range Head Range
Inch(") QJ Series kw hp m3/h m
10" 250QJ50-320/16 75 100 46-54 272-368
10" 250QJ50-340/17 75 100 46-54 315-375
10" 250QJ63-260/13 75 100 58-68 220-299
10" 250QJ80-200/10 75 100 74-86 170-230
10" 250QJ100-162/9 75 100 80-120 140-189
10" 250QJ125-128/8 75 100 116-134 109-147
10" 250QJ140-120/8 75 100 130-150 104-137
10" 250QJ160-105/7 75 100 148-172 90-120
12" 300QJ200-80/4 75 100 186-214 68-92
12" 300QJ240-66/3 75 100 223-257 56-76
12" 300QJ300-60/3 75 100 279-321 51-69
12" 300QJ400-40/1 75 100 368-432 38-42
12" 300QJ500-30/2 75 100 460-540 29-32
18" 450QJ800-16/1 75 100 750-850 12-30


It is one part of 75kw 100hp submersible well pump parameters. If you would like to know more, please feel

free to send an inquiry.
