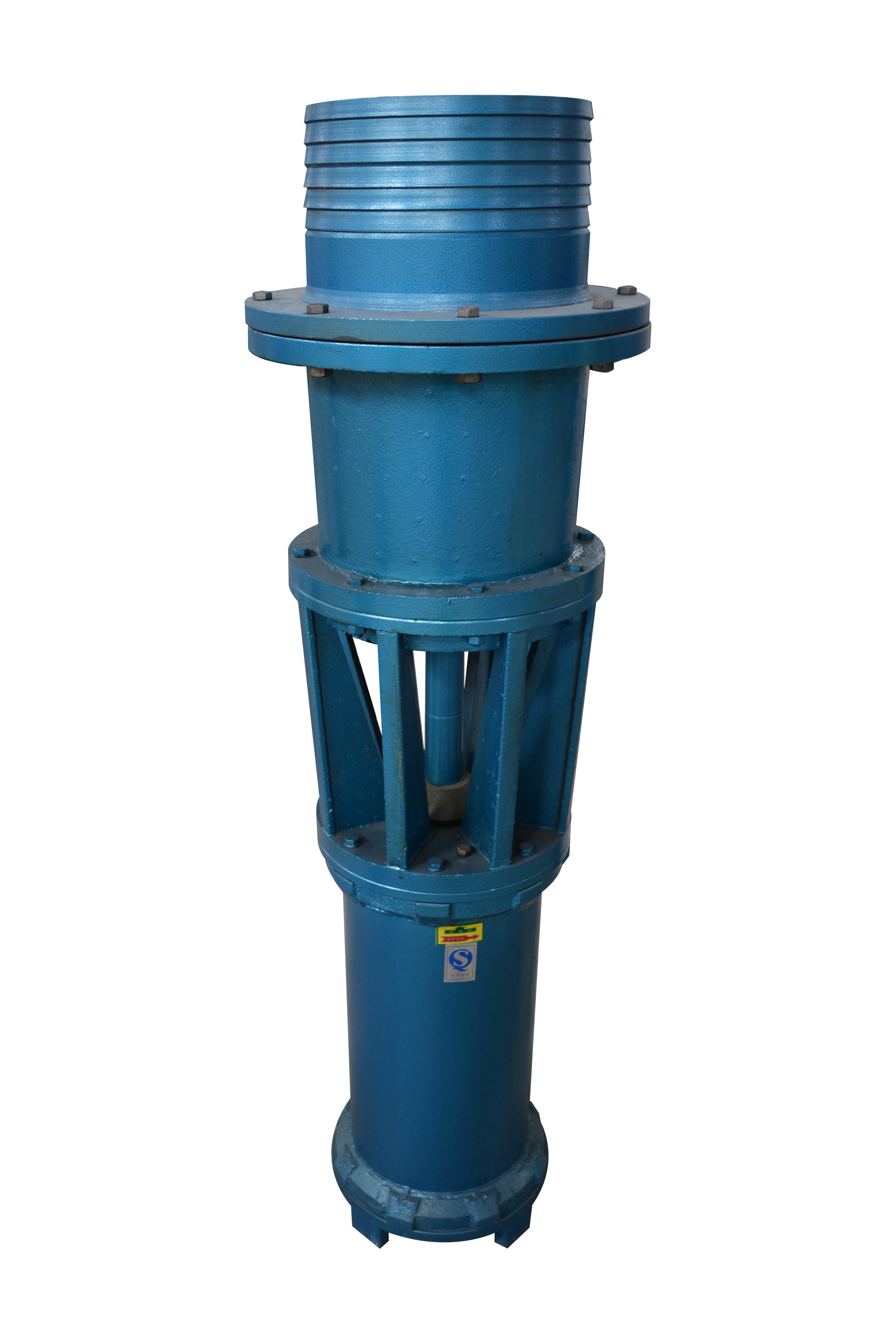

10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation
10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation
10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation 10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation 10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation 10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation 10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation
Contact Now

10kw High Flow Submersible Water Pump Axial Flow Water Pump Vertical / Horizontal Installation

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : High flow submersible pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3578 pieces per month
Place of Origin: Henan, China Brand Name: APK
Certification: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER Model Number: QSZ

Detail Information
Flow: 300m3/h 500m3/h 800m3/h 1000m3/h 1500m3/h Water Pump Head: 3m 4m 5m 6m Submersible Pump
Power: 10kw 13kw 18.5kw 22kw 30kw 37kw 45kw Submersible Pump Max.dia: 250mm 300mm 400mm 450mm 550mm 600mm 700mm 750mm
Flange Dia: 250mm 300mm 400mm 450mm 550mm 600mm 700mm 750mm Discharge Dia: 200mm 250mm 350mm 400mm 500mm 550mm 650mm 700mm
Install: Vertical/horizontal ODM OEM: Accept
Quality Warranty: One Year Or More
Highlight:

vertical deep well pump

,

electric submersible pump

Product Description

10kw 13kw 18.5kw 37kw axial flow impeller water pumps high flow submersible pump





Axial flow high flow submersble pump parameters:

Model Flow Head Power Current Max.Dia Flange.Dia Discharge Dia.
QSZ types m3/h m kw A mm mm mm
QSZ300-6-10 300 6 10 21.6 250 250 200
QSZ500-5-13 500 5 13 30.3 300 300 250
QSZ800-3-13 800 3 13 30.3 400 400 350
QSZ1000-3-18.5 1000 3 18.5 42.6 450 450 400
QSZ1500-4-22 1500 4 22 49.7 550 550 500
QSZ1250-5-30 1250 5 30 67.5 550 550 500
QSZ1600-4-30 1600 4 30 67.5 600 600 550
QSZ2100-3-30 2100 3 30 37.5 600 600 550
QSZ1600-5-37 1600 5 37 79.7 600 600 550
QSZ2000-4-37 2000 4 37 79.7 600 600 550
QSZ2500-3-37 2500 3 37 79.7 700 700 650
QSZ1900-5-45 1900 5 45 96.9 600 600 550
QSZ2400-4-45 2400 4 45 96.9 700 700 650
QSZ3000-3-45 3000 3 45 96.9 750 750 700
