55KW Fountain Submersible Pump For Sale
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Please feel free to contact us |
|---|---|---|---|
| Packaging Details : | Submersible fountain pump is packed by standard export wooden case | Delivery Time : | 15-25 working days after payment confirmation |
| Payment Terms : | T/T, Western Union, L/C, MoneyGram, D/P, D/A | Supply Ability : | 2000 pieces per month |
| Place of Origin: | China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO; CE | Model Number: | submersible fountain pump |
|
Detail Information |
|||
| Features: | Horizontal Submersible Pump | Flow: | 63m3/h Submersible Fountain Pump |
|---|---|---|---|
| Head: | 20m Submersible Fountain Pump | Power: | 5.5kw Submersible Fountain Pump |
| Material: | SS304 Submersible Fountain Pump | Warranty: | 24 Months |
| High Light: | 65m3/H Submersible Fountain Pump,5.5kw Submersible Fountain Pump,SS304 Submersible Fountain Pump |
||
Product Description

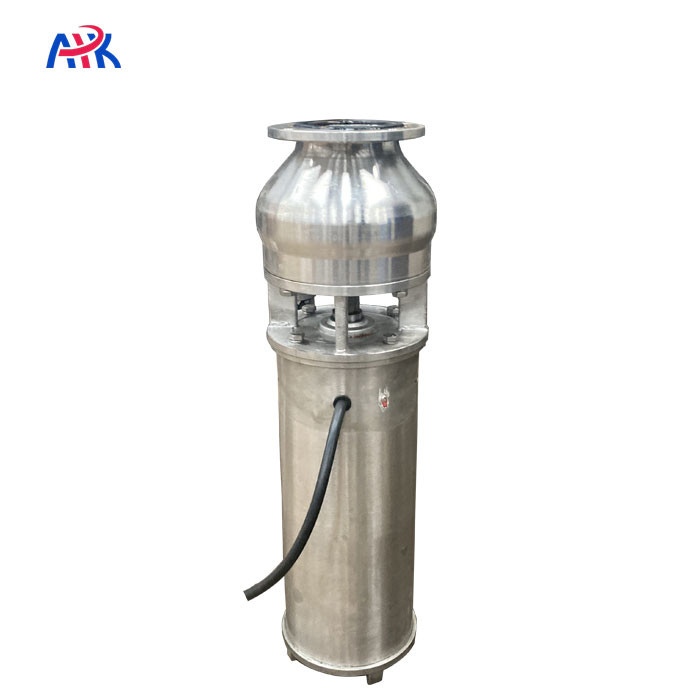

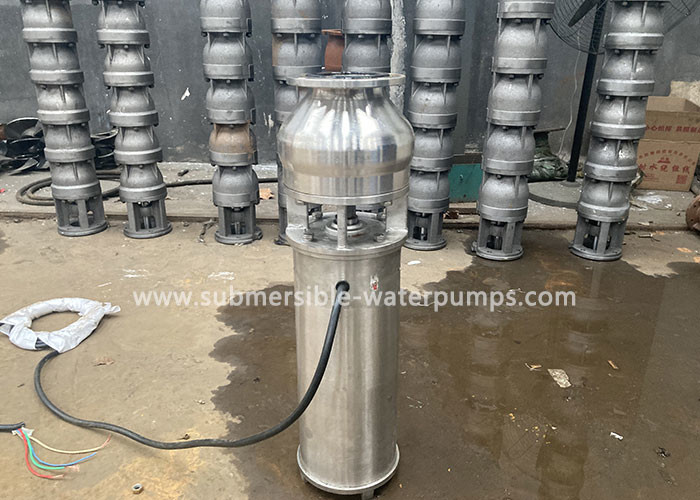

20m Head Meters 5.5kw 65m3/h SS304 Horizontal Submersible Fountain Pump
QSP fountain submersible pump's pump body, wet parts and external spare parts are made by cast iron or stainless steel, the motor is made by 100% copper wire.
Submersible fountain pump spare parts features:
| Mechanical Seal | Adopting casrborundum and alloy mechanical seal, double-end type with antional patent certificate; Use fluororubber "O" ringsto extend service life |
| Motor | Adopting 100% copper with low energy consumption cold rolled steel, ensure the pump with powerful performance |
| Rotor&Bearing | Using high percision 304/316 SS rotor spindle, process with anti-corrosive moisture-proof on the surface; Install 2 NSK bearing to ensure the stability |
| Impeller | Chanel impeller also called close impeller, casting with 304/316 SS material, suitable for pumping the liquid with large particles and fiber. It's characteristics is non-clog and over-current capacity |
Submersible fountain pump models:
| Model | Flow | Head | Power | Discharge Dia. |
| QS series | m3/h | m | kw | mm |
| QS25-12-1.5 | 25 | 12 | 1.5 | 65 |
| QS40-9-1.5 | 40 | 9 | 1.5 | 80 |
| QS10-40/3-2.2 | 10 | 40 | 2.2 | 50 |
| QS15-26-2.2 | 15 | 26 | 2.2 | 50 |
| QS25-17-2.2 | 25 | 17 | 2.2 | 65 |
| QS65-7-2.2 | 65 | 7 | 2.2 | 90 |
| QS15-34/2-3 | 15 | 34 | 3 | 50 |
| QS25-25-3 | 25 | 25 | 3 | 65 |
| QS100-6-3 | 100 | 6 | 3 | 90 |
| QS10-65/5-4 | 10 | 65 | 4 | 50 |
| QS10-81/6-4 | 10 | 81 | 4 | 50 |
| QS30-30/2-4 | 30 | 30 | 4 | 65 |
| QS65-13-4 | 65 | 13 | 4 | 90 |
| QS80-12-4 | 80 | 12 | 4 | 90 |
| QS10-95/7-5.5 | 10 | 95 | 5.5 | 50 |
| QS30-40/3-5.5 | 30 | 40 | 5.5 | 90 |
| QS65-18-5.5 | 65 | 18 | 5.5 | 90 |
| QS220-5-5.5 | 220 | 5 | 5.5 | 150 |
| QS10-121/9-7.5 | 10 | 121 | 7.5 | 50 |
| QS20-65/5-7.5 | 20 | 65 | 7.5 | 65 |
| QS30-54/3-7.5 | 30 | 54 | 7.5 | 65 |
| QS32-48/4-7.5 | 32 | 48 | 7.5 | 65 |
| QS50-36/3-7.5 | 50 | 36 | 7.5 | 90 |
| QS100-15-7.5 | 100 | 15 | 7.5 | 125 |
| QS250-8-7.5 | 250 | 8 | 7.5 | 150 |
Features of QSP submersible fountain pump:
1) QSP submersible fountain pump has automatic water filling function, the motor is self-circulation water filled motor.
2) All QSP submersible fountain pump use a stainless steel filter, can prevent big size sundries inside.
3) Use cast iron/cast stainless steel materials for whole submersible fountain pump, more durable
4) The special material of impeller can prevent impeller loosing during working
5) With earth leakage protection device, use fixed potential grounding device to make sure safety during operation.
6) After researching and testing of submersible fountain pump based on common pumps, we improved the raw material of high flow low head water pump and motor parts to make sure our submersible fountain pump can work perfectly even frequent starting, now all garden pump are certainly designed for Music Fountains.
Fountain submersible pump install cases:
| Model | Flow | Head | Power | Voltage | Material |
| QS80-22-7.5 | 80m3/h | 22m | 7.5kw | 380v/60hz | 304 stainless steel |
| QS30-54-7.5 | 30m3/h | 54m | 7.5kw | 380v/60hz | 304 stainless steel |
| 250QJ80-80-30 | 80m3/h | 80m | 30kw | 380v/60hz | 304 stainless steel |
| QS20-20-2.2 | 20m3/h | 20m | 2.2kw | 380v/60hz | cast iron |
| QS80-20-7.5 | 80m3/h | 20m | 7.5kw | 380v/60hz | cast iron |
| QS30-54-7.5 | 30m3/h | 54m | 7.5kw | 380v/60hz | cast iron |
| 250QJ80-40-15 | 80m3/h | 40m | 15kw | 380v/60hz | cast iron |
