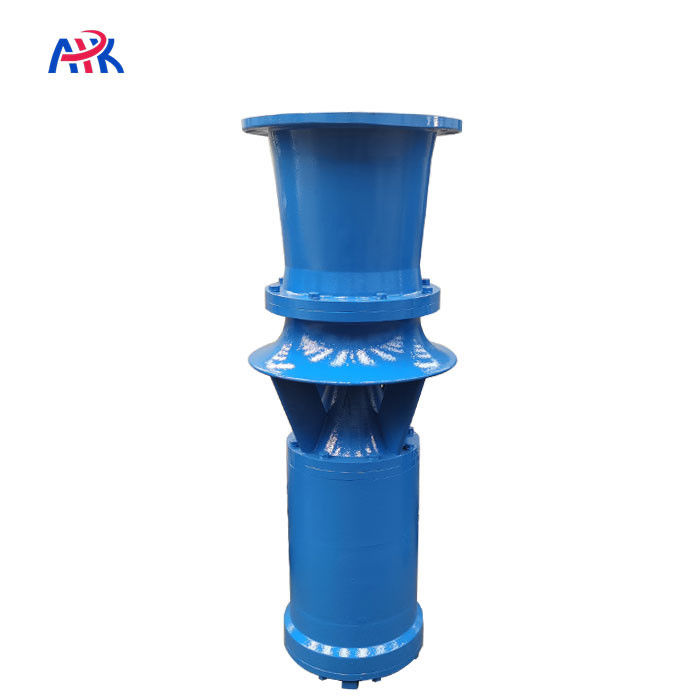

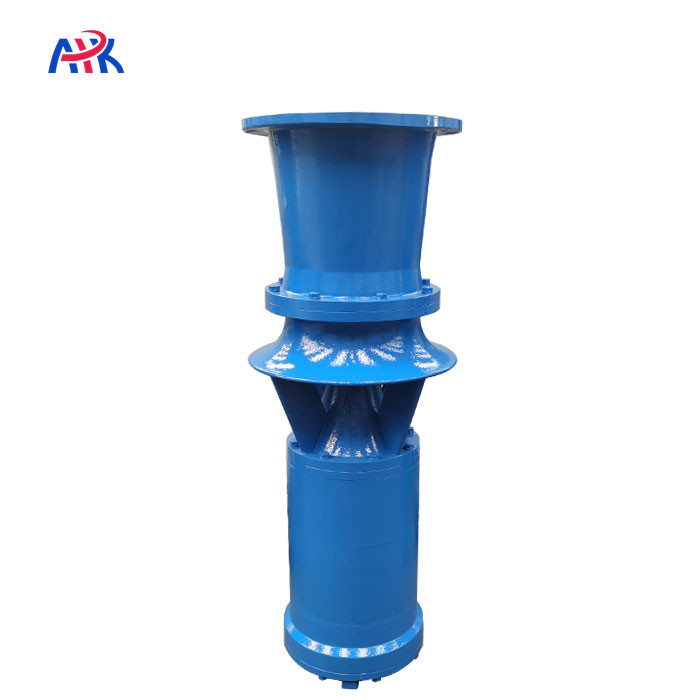

4m 5m 6m 10m Low Head Electric Submersible Water Pump

Minimum Order Quantity : 1 set Price : Please contact us as below
Packaging Details : Axial flow water submersible pump with export wooden case. Delivery Time : 7-15 working days
Payment Terms : T/T, L/C Supply Ability : 2530 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE Model Number: Submersible Water Pump

Detail Information

Flow: 1800m3/h 3600m3/h Water Submersible Pump Head: 4m 5m 6m 10m Submersible Pump
Power: 30kw 37kw 45kw 75kw Water Submersible Pump Voltage: 380v/400v/460v/480v Or As Per Request
Material: Cast Iron/SS304/SS316/SS316L Install: Vertical Or Horizontal Submersible Pump
Feature: Large Flow Low Head Submersible Water Pump Warranty: 24 Months
High Light:

Low Head Electric Submersible Water Pump


10m Head Submersible Water Pump


3600m3/h Submersible Water Pump

Product Description


4m 5m 6m 10m 1800m3/h 3600m3/h Low Head Electric Submersible Water Pump


Low head submersible water pump overview:

    Axial flow submersible water pump, which is a large flow low head water submersible pump type, the motor driving the pump is submerged type fully enclosed three phase asynchronous submersible motor. The submersible water pump and motor shaft are integrated. Low head electric subemrsible water pump is in long - term underwater operation, with a series of traditional units incomparable advantages.

    Because the submersible pump head and submersible motor together, large flow low head submersible pump can diving into the water at the same time.


Low head submersible water pump working conditions:

1, Power frequency 50hz 60hz,voltage 380v 440v 460v 480v ,three phase AC power supply.

2, The temperature of water is not higher than 40.

3, The PH value of the acid and base of water should be within the range of 5.5-8.5

4, The electric pump should be completely submerged in the water,and the depth of the submergence should not be less than 0.8 meters.

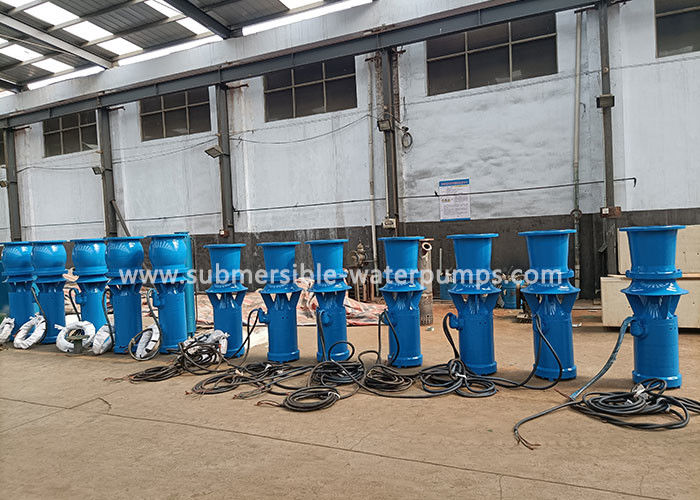

Low head water submersible pump image:

4m 5m 6m 10m Low Head Electric Submersible Water Pump 0

Low head submersible water pump types(If you are interested, please kindly inquiry):

Discharge Dia Model Flow range Head range Power
mm QSZ type m3/h m kw
200 QSZ300-6-10 300 6 10
250 QSZ500-5-13 500 5 13
350 QSZ800-3-13 800 3 13
400 QSZ1000-3-18.5 1000 3 18.5
350 QSZ1100-10-45 1100 10 45
500 QSZ1500-4-22 1500 4 22
500 QSZ1250-5-30 1250 5 30
550 QSZ1600-4-30 600 4 30
550 QSZ2100-3-30 2100 3 30
550 QSZ1600-5-37 1600 5 37
550 QSZ2000-4-37 2000 4 37
650 QSZ2500-3-37 2500 3 37
550 QSZ1900-5-45 1900 5 45
650 QSZ2400-4-45 2400 4 45
750 QSZ3000-3-45 3000 3 45
500 QSZ1800-10-75 1800 10 75


Low head submersible water pump applications:

1. Agriculture farm irrigation

2. Ice farmland

3. Fishery

4. Water transfer project

5. Shrimp factory

6. Flood control

7. Drainage


Low head submersible water pump service from APK team:

1. Any inquires will be replied within 0.5 working hours, leaving your WhatsApp and E-mail.

2. Professional submersible water pump manufacturer, welcome to visit our website and factory.

3. Customized design is available, OEM and ODM are welcomed.

4. High quality, reasonable & competitive price.

5. Fast lead time, 5-25 days for bulk pump production

6. Payment: we usually accept payment by T/T, L/C and western union.

7. We have strong cooperation with forwarder, you also can chose your own shipping forwarder.

8. After-sale service: all water submersible pumps will be 1 QC 1 Step. All submersible water pumps will be packed as request before shipping.

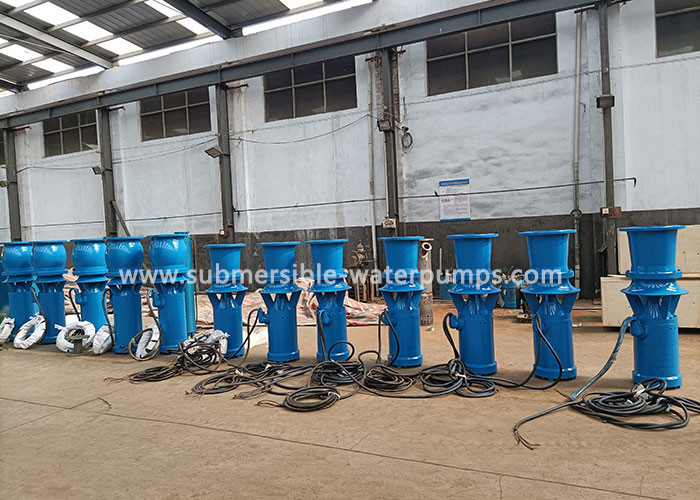

APK submersible water pump factory overview :

APK is a professional ODM OEM electric submersible water pump manufacturer in China since 1996, got CE, ABS and ISO certificates. Focusing on submersible water pumps, pumping clean water, sea water, salt water, sewage water and hot water, also pump accessories, including control panels, electric cables.

4m 5m 6m 10m Low Head Electric Submersible Water Pump 1




Q1: Are you a factory or just a trading company?
A1:We are a manufacturer that specializes in water submersible pumps and pump accessories in China since 1996.


Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.


Q3: How can I get the quotation?
A3: Leave us message with your purchase requirements and we will reply you within one hour in working time. Or,  contact us directly by Whatsapp or E-mail.


Q4: How long is the quality warranty?
A4: 24 months.


Q5: What about the deliver time for mass production?
A5: Honestly, It depends on the order you place the order. The normal delivery time is around 7-15 days.
