185kw Submersible Pump Farmland Irrigation Stainless Steel
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
Minimum Order Quantity : | 1 | Price : | Contact us |
---|---|---|---|
Packaging Details : | Industrial submersible pump is packed with seaworthy export standard plywood case | Delivery Time : | 7-25 days |
Payment Terms : | L/C, T/T | Supply Ability : | 5000 sets per month |
Place of Origin: | China | Brand Name: | APK |
---|---|---|---|
Certification: | CE;ISO;ABS | Model Number: | Submersible Pump |
Detail Information |
|||
Flow Rate: | 400 Gpm Submersible Pump | Head Meters: | 15m-216m |
---|---|---|---|
Voltage: | 380v/400v/440v/460v/480v Or As Per Request | Power Supply: | AC Electric Motor |
Frequency: | 3 Phase 50hz/60hz | Material: | Cast Iron/Bronze/SS304/SS316/SS316L/Duplex Stainless/SS904L |
Highlight: | 400Gpm Water Electric Submersible Pump,15m Head Submersible Water Pumps,SS904L Submersible Water Pumps |
Product Description

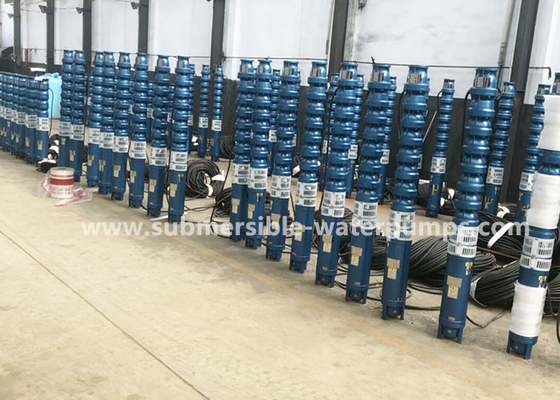

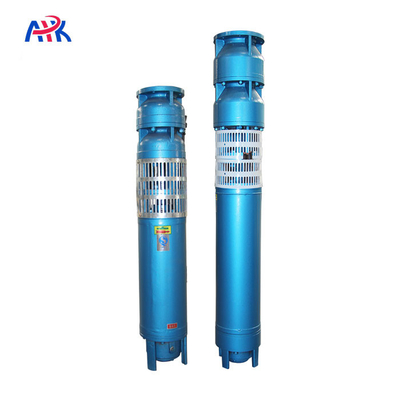

400 gpm 100m3/h AC Vertical Water Electric Submersible Pump
400 gpm submersible pump type:
1. Submersible water pump 12 inch we have cast iron submersible pump for farm irrigation, more economic;
2. Stainless steel submersible pump type for sea water lift pump offshore with Bronze, SS304, SS316, SS316L, Duplex stainless steel and SS904L, however, we will choose stainless steel submersible water pump for drinking water, corrosive resistant;
3. High temperature submersible pump, max temperature could be up to 120℃, with high temperature cables, high temperature motor, all is wear resistance.
400 gpm Submersible Pump Models:
We will share hundreds of industrial submersible pump models as below, choosing suitable type by yourself. Or, if you have other any requirements,e-mail please.
Model | Power | Flow range | Head range | |
QJ type | kw | hp | m3/h | m |
200QJ100-15/1 | 7.5 | 10 | 100 | 15 |
200QJ100-30/2 | 15 | 20 | 100 | 30 |
200QJ100-45/3 | 22 | 30 | 100 | 45 |
200QJ100-60/4 | 30 | 40 | 100 | 60 |
200QJ100-75/5 | 37 | 50 | 100 | 75 |
200QJ100-90/6 | 45 | 60 | 100 | 90 |
200QJ100-105/7 | 45 | 60 | 100 | 105 |
250QJ100-18/1 | 7.5 | 10 | 100 | 18 |
250QJ100-36/2 | 15 | 20 | 100 | 36 |
250QJ100-54/3 | 25 | 35 | 100 | 54 |
250QJ100-72/4 | 30 | 40 | 100 | 72 |
250QJ100-80/5 | 45 | 60 | 100 | 80 |
250QJ100-108/6 | 45 | 60 | 100 | 108 |
250QJ100-126/7 | 55 | 75 | 100 | 126 |
250QJ100-144/8 | 63 | 85 | 100 | 144 |
250QJ100-162/9 | 75 | 100 | 100 | 162 |
250QJ100-198/11 | 90 | 120 | 100 | 198 |
250QJ100-216/12 | 100 | 135 | 100 | 216 |
What will you do when you get water submersible pump?
1. Checking the power cable, no broken
2. Turning the impeller by wrench, confirm it can be turned smoothly
3. Checking the drain hole at the bottom of the water pump. If it is loose, tighten it
4. Fulling the motor will clean drinking water
5. Tighten the screws of the water injection hole and exhaust hole on the upper part of the motor
6. After installing the pump into the well, observe the flow rate and current. If the current is common and the flow is small, it may be reversed. Adjust the steering. If the current is still high and the flow is small, there may be water leakage from the pipeline connection. Check the pipeline.
Why ordering submersible pump from APK?
APK submersible water pump factory is a competitive reputable OEM&ODM pump manufacturer in China since 1986. Got CE; ISO; ABS and 11 National Patents.
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
