4kw Vertical Single Stage Pipeline Tank Water Booster Pressure Pump

Minimum Order Quantity : 1 set Price : Please contact us as below
Packaging Details : Pipeline water pump is packed with seaworthy export standard plywood case. Delivery Time : Within 7-15 working days upon receipt of payment
Payment Terms : T/T, Western Union, L/C, MoneyGram, L/C Supply Ability : 3000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO;CE Model Number: Booster Water Pump

Detail Information

Head: 12m-160m Flow Rate: 20m3/h-550m3/h
Voltage: 380v/400v/440v/460v/480v Or As Per Request Power: 4kw-220kw
Install: Vertical Or Horizontal Material: Cast Iron/Stainless Steel
High Light:

20m3/h Tank Water Booster Pump

,

220kw Tank Water Booster Pump

,

160m Head Tank Water Booster Pump

Product Description



25 m3/h 3.2bar 4kw Farm Crops Tank Water Booster Pressure Pump Vertical





Booster water pump parameters:

(Notice: flow rate, head meters, power supply and meterial, all will be customized according to your local site.)

Model Flow Head Power
SLW/SLG m3/h m kw
SLW/SLG32-200 5 50 3
SLW/SLG40-160 6.3 32 2.2
SLW/SLG40-200 6.3 50 4
SLW/SLG40-250 6.3 80 7.5
SLW/SLG50-160 12.5 32 3
SLW/SLG50-250 12.5 80 11
SLW/SLG65-250 25 80 15
SLW/SLG65-315 25 125 30
SLW/SLG80-315 50 125 37
SLW/SLG80-350 50 150 55
SLW/SLG100-125 100 20 11
SLW/SLG100-200 100 50 22
SLW/SLG100-250 100 80 37
SLW/SLG100-350 100 150 90
SLW/SLG125-100 160 12.5 11
SLW/SLG125-125 160 20 15
SLW/SLG125-315 160 125 90
SLW/SLG150-125 160 20 15
SLW/SLG150-500 200 80 90
SLW/SLG200-250 200 20 18.5
SLW/SLG200-500 200 80 90
SLW/SLG250-250 550 20 45
SLW/SLG300-250 720 20 55
SLW/SLG300-500 720 80 250
SLW/SLG350-250 1200 20 90
SLW/SLG350-400 1200 50 250
SLW/SLG400-400 1080 12.5 55
SLW/SLG500-625 1200 32 160
SLW/SLG500-500 1200 20 110



   First at all,the customer said that he met some problems. He have a farm and a 200m deep water tank. He wants to use the water in the tank to water for crops. The current water pump is not enough to meet the current demand. Because the water pump flow rate is a bit little. He wants a booster pump so that the water flow can increase. I fully understand customer’s problem by drawing schematic diagram. The customer express affirmation. The customer said that you want a flow rate 25m3/h,head 32m and power 4kw pump.I recommend suitable type pump for customer.

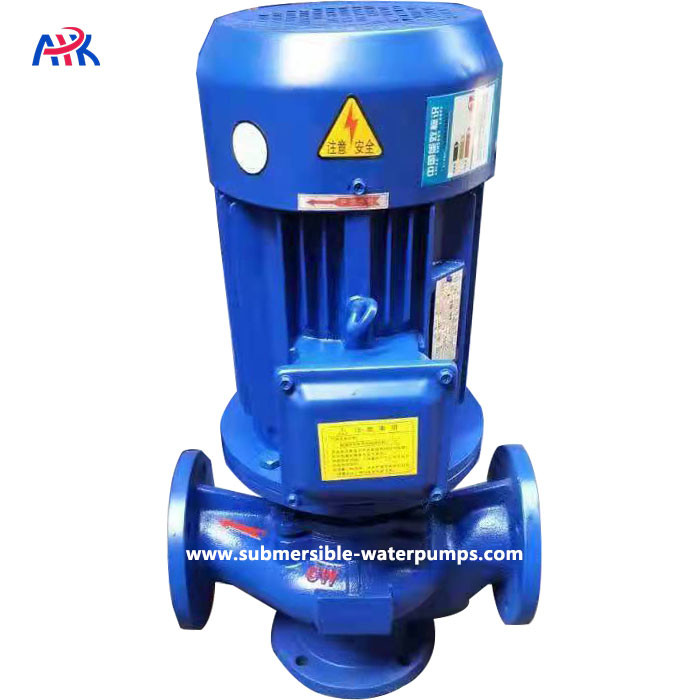

   4kw Vertical Single Stage Pipeline Tank Water Booster Pressure Pump 0

   After this customer suddenly connected me one day. He said he wanted a flow rate of 30tons per hour. The other parameters are the same as before.The customer said he want to collect water in tank and the booster pump will install out side with tank. So he can run more sprinklers for agricultural farm. He said he can run 20 pieces sprinklers now. If he have the booster pump,he can run 30 pieces sprinklers so that he can save time. I recommend a suitable pump to the customer again. The parameters information is flow rate 32 cubic meters per hour,head 27m,motor speed 2900 rpm,voltage 380V 50hz and water inlet and out 2.5 inch. The customer felt that this pump satisfies he needs very well.

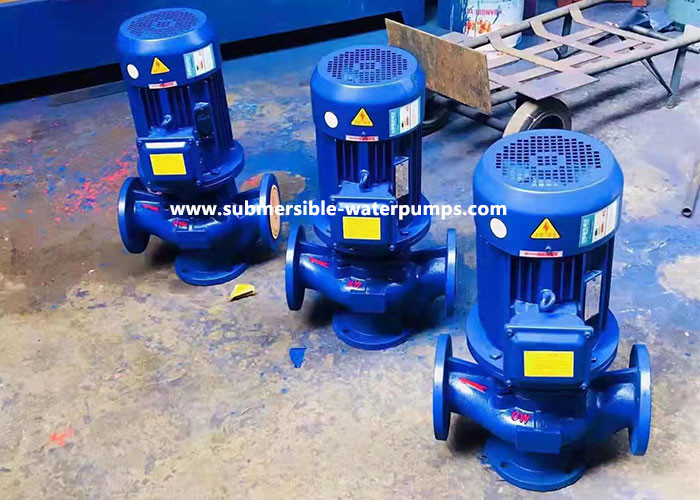

 4kw Vertical Single Stage Pipeline Tank Water Booster Pressure Pump 1



How to know more about Zhengzhou Shenlong Pump Industry CO.,Ltd?

  Zhengzhou Shenlong Pump Industry CO.,Ltd have been exported to more than 70 countries and regions, such as Southeast Asia, Europe, Africa, South America and Oceania and so on. It is the leader in the submersible pump industry in domestic, always stressing on quality and credibility. The company has participated in national standards and plays an important role in amending the national standards, such as CE, ABS.

Why choose us?

1. Specialized production Manufacturer for Submersible Pump

2. Focus on technological innovation, Over Industry leading level

3. Good experience at Domestic and oversea market

4. Carefully paint for Good appearance

5. Years of International service standards, Engineer one-to-one service



4kw Vertical Single Stage Pipeline Tank Water Booster Pressure Pump 2
