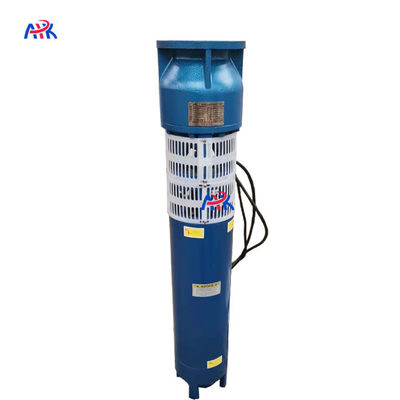

35 Liter/Sec 40°C Vertical Multistage Water Submersible Pump For Drilling
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
|Minimum Order Quantity :||1 piece||Price :||Please feel free to contact us|
|Packaging Details :||Submersible pump is packed with seaworthy export standard plywood case.||Delivery Time :||7-15 working days|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||5000 pieces per month|
|Place of Origin:||China||Brand Name:||APK|
|Certification:||CE;ISO;ABS||Model Number:||Submersible Pump|
|Power:||25kw||Head:||100ft Submersible Pump|
|Flow:||800gpm Submersible Pump||Pump Diameter:||10 Inch Submersible Pump|
|Material:||Cast Iron Submersible Pump||Powered:||Electricity|
800gpm Submersible Well Pump,
100ft Submersible Well Pump,
25kw Submersible Well Pump
Soft Starter 800gallons Per Minute 100ft 25 Meters Cable Ground Water Submersible Well Pump
We received an inquiry in 21st October from Jamaica customer. He said, I need a pump that can pull water from a well about 100ft below ground and deliver about 800gallons per minute
Firstly, our sale manager reply Jamaica email asap. Glad to received your inquiry for submersible water pump for well, and this kind of pumps are exactly what we are good at.
According to your required specification, we suggest 250QJ200-30-25KW, the details as below:
1. Model: 250QJ200-30-25KW
2. Flow rate: 200m3/hr(880 Gallons per minute)
3. Head: 30 meters
4. Pump diameter: 234mm
5. Discharge dia: 6"(150mm)
6. Pump material: Cast iron or SS304
7. Power supply: 3phase/380V/50Hz
10 inch ground water submersible pump types:
(Flow rate, head meters, material, all could be customized. ODM OEM is acceptable)
|Pump Diameter||Model||Power||Flow range||Head range|
|Inch (")||QJ type||kw||hp||m3/h||m|
We will choose one suitable ground water submersible pump according to customer's local site. Notes: Please pay attention on the pump diameter and confirm if the pump can put into your well easily. Jamaica customer was satisfied with our service and 800gpm 100 feet ground water pump submersible type we chose. Then, he inquiryed again: I also need 4 other pumps to load water trucks at about 400 gallons per minute from tanks that the well pump will fill.
Recently, sea freight and air cost is unstable, Jamaica customers confirmed the deliver time and cost again before purchasing order as below:
1. If we order this week, how soon can the submersible pump be shipped from China?
About 7 working days for ground water submersible pump
2. How long will it take to reach Jamaica?
It will take about 50 days from loading port to Jamaica by sea. If by plane, it will take about 10 days.
3. What is the brand name of the pump?
APK, a famous brand in China
4. How long will it last?
Usually, so long as follow our instruction, the pumps can last at least 2-5 years.
Otherwise, Jamaica ordered 800gpm 100 feet ground water submersible pump, also including 30kw electrical soft starter control panel with CHINT electric elements. One electric control panel will control one ground water submersible pump.
What will you do before running ground water submersible pump?
1. Checking the power cable, no broken
2. Turning the impeller by wrench, confirm it can be turned smoothly
3. Checking the drain hole at the bottom of the water pump. If it is loose, tighten it
4. Fulling the motor with clean drinking water
5. Tighten the screws of the water injection hole and exhaust hole on the upper part of the motor
6. After installing the pump into the well, observe the flow rate and current. If the current is common and the flow is small, it may be reversed. Adjust the steering. If the current is still high and the flow is small, there may be water leakage from the pipeline connection. Check the pipeline.
Why choose us?
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data or drawings , we will select suitable pump and seal .
Q:How long is warranty?
A:About 24 months.
Q:How long is production lead time?
A:Depends on quantity, the normal small amount production is about 10 days.
Q:What’s type of shipping?
A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way
Q:What is the shipping terms you can provide?
A:Depends on customer's requirements, we can provide different transportation terms,
such as EXW, FOB, CIF.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
