185kw Submersible Pump Farmland Irrigation Stainless Steel
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsAPP : +8617537187726
Minimum Order Quantity : | 1 piece | Price : | Please feel free to contact us |
---|---|---|---|
Packaging Details : | Submersible water pump is packed with seaworthy export standard plywood case. | Delivery Time : | 7-15 working days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000 pieces per month |
Place of Origin: | China | Brand Name: | APK |
---|---|---|---|
Certification: | CE;ISO;ABS; SGS; BV | Model Number: | Water Submersible Pump |
Detail Information |
|||
Motor Power: | 37kw 50hp Submersible Pump | Head: | 65m Submersible Pump |
---|---|---|---|
Flow: | 35 Liter/sec Submersible Pump | Pump Diameter: | 10 Inch Submersible Pump |
Material: | Cast Iron Submersible Pump | ODM OEM: | Accept |
Highlight: | Vertical Multistage Submersible Water Pumps,50hp Multistage Submersible Water Pumps,65m Head Submersible Water Pumps |
Product Description

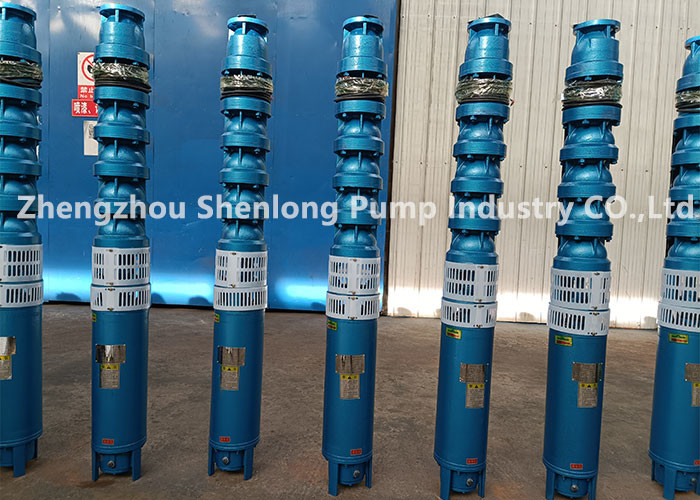

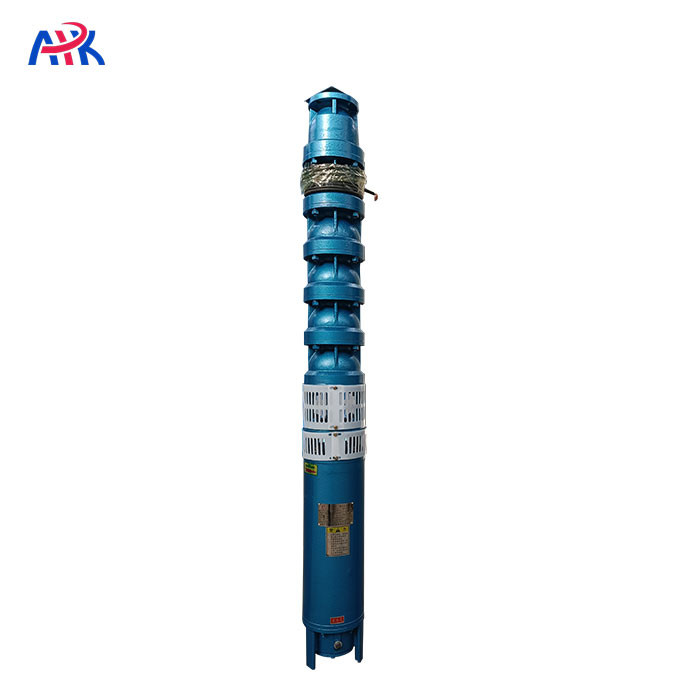

Qatar Drilling Company Vertical Multistage 10 Inch Deep Well Water Submersible Pump
Qatar customer looking for a submersible pump with the following characteristics: Flow = 35 liter/sec - HMT = 65m - Out side Diameter of the pump = 10 inch, Working Temperature = 40°C, who are working in a water drilling company
According to customers’ details and technical drawing, we chose submersible pump models finally:
Submersible pump type: 250QJ125-65
-- Flow rate: 35 liter/sec
-- Head: 65m
-- Motor power: 37kw 50hp
-- Pump diameter: 234mm
-- Outlet dia: 125mm
-- Pump material: Cast iron
-- Power supply: 3phase/380V/50Hz
-- Application: clean water lifting
35 liter/sec submersible pump types:
(Flow rate, head meters, material, all could be customized. ODM OEM is acceptable)
Model | Power | Flow rate | Head meters | Outlet diameter | |
QJ type | kw | hp | m3/h | m | Inch(") |
250QJ125-16/1 | 9.2 | 13 | 125 | 16 | 5" |
250QJ125-32/2 | 18.5 | 25 | 125 | 32 | 5" |
250QJ125-48/3 | 25 | 35 | 125 | 48 | 5" |
250QJ125-64/4 | 37 | 50 | 125 | 64 | 5" |
250QJ125-80/5 | 45 | 60 | 125 | 80 | 5" |
250QJ125-96/6 | 55 | 75 | 125 | 96 | 5" |
250QJ125-112/7 | 63 | 85 | 125 | 112 | 5" |
250QJ125-128/8 | 75 | 100 | 125 | 128 | 5" |
250QJ125-144/9 | 90 | 120 | 125 | 144 | 5" |
250QJ125-160/10 | 90 | 20 | 125 | 160 | 5" |
250QJ125-176/11 | 100 | 35 | 125 | 176 | 5" |
250QJ125-192/12 | 110 | 150 | 125 | 192 | 5" |
Notes for submersible pump:
1. Motor cavity MUST BE fill with clean water when pump working
2. DO NOT use the cable as sling when install, should wear ropes on the handle
3. The first stage impeller should go down the water level
4. After shut down the power, should wait for more than 3mins when restart the pump
5. When the pump finish work, it's better to cut off the power
Why choose Zhengzhou Shenlong Pump Industry CO.,Ltd?
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
FAQ
Q:How long is production lead time?
A:Depends on quantity, the normal small amount production is about 10-25 days.
Q:What’s type of shipping?
A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way
Q:What is the shipping terms you can provide?
A:Depends on customer's requirements, we can provide different transportation terms,
such as EXW, FOB, CIF.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
Q: How To Get Water Submersible Pump Price Quickly?
A: (1) Water medium: clean water, sea water, hot water, sewage water
(2) Sources of water: deep well, borehole, river, lake, vessel, tank and so on
(3) Pump diameter limited or not
(4) Flow rate (m3/hr, l/s, l/min, gpm)
(5) Head meters (m, bar, psi)
(6) Power supply: 3phase, 380v-1140v, 50hz/60hz
(7) Material: cast iron; bronze; SS304; SS316; SS316L; duplex stainless; SS904L
(8) If replace exacting pump model, share nameplate or technical specifications
(9) Pump accessories: control panel, frequency inverter, submersible cables and so on.
