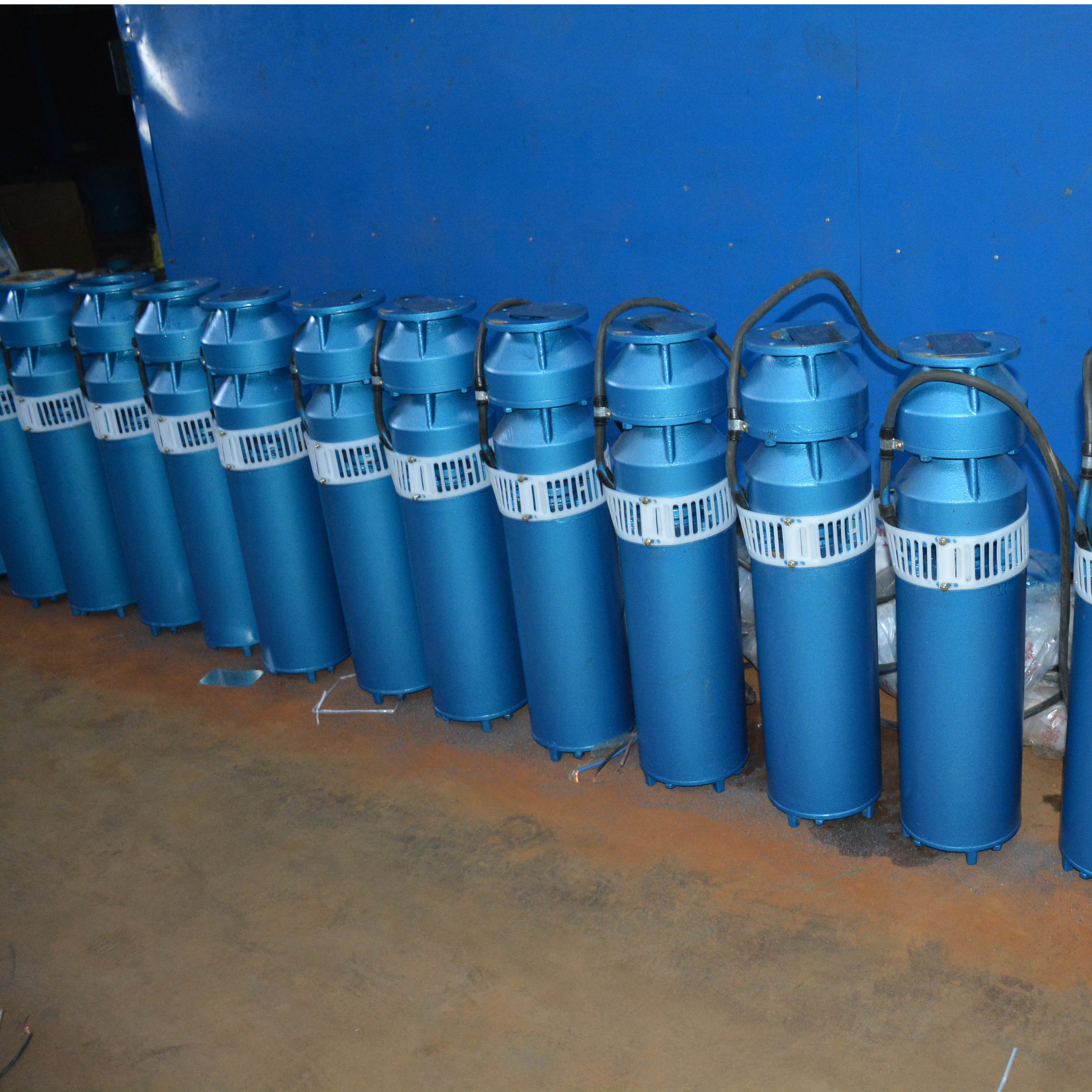

25m3/H 7.5kw Submersible Water Pump For Deep Well Irrigation

Product Description

25m3/h 7.5kw water pump for deep well irrigation

25m3/h 13kw water pump for deep well irrigation Model meaning:

175QJ25-65/5

25-25m3/h

175-175mm pump diameter

65-65m lift

5-5 pole Number of impeller stages

25m3/h 13kw water pump for deep well irrigation features:

We also manufacture submersible pump casting parts, such as control cabinet, frequency converter, cables, pipe, etc.

25m3/h 13kw water pump for deep well irrigation RFQ:

1. Are flanges included within the scope of delivery when ordering circulator pumps or do these need to be ordered separately?

Flanges and seals need to be ordered separately. The type and size of the flanges and seals must be specified when ordering.

2. Can the SP pumps also be operated in a horizontal position?

SP submersible pumps with a Grundfos or other submersible motor can be operated in any position from horizontal to vertical. The motor is arranged below the pump. A cooling jacket is generally required for these installation positions. See separate entry on this issue.

3. Displays on the operating panel are lit despite the fact that the electrical power supply is switched off.

Possible cause of fault: there is medium flowing through the pump and turning the impeller. This generates current, causing the display to illuminate

Remedy: these faults can only be remedied by a specialist company.

4. Do I have to follow the instructions for Grundfos pumps?

Yes, absolutely. The installation and operating instructions contain basic instructions which must be followed in connection with the installation, operation, and maintenance of the system. Hence, they must be read by the installer and the relevant personnel/owner prior to installation and commissioning. In addition, they must be available to personnel on site at all times.

5. Does the built-in excess temperature protection of the UPS pump need to be used?

If excess temperature protection is not properly connected or bridged, the pump may be permanently damaged. In addition, this will also void the pump’s warranty.

6. Does the SQ/SQE have a soft start?

Yes, the pump has an integrated soft start feature in order to reduce start-up current, thus assuring even, continuous acceleration.

Why choose us:

We have our factory and our professional salesman. We could provide you professional knowledge guidance. If you don’t know how to choose this pump, you could provide the model and we wil help you choose what you need.
