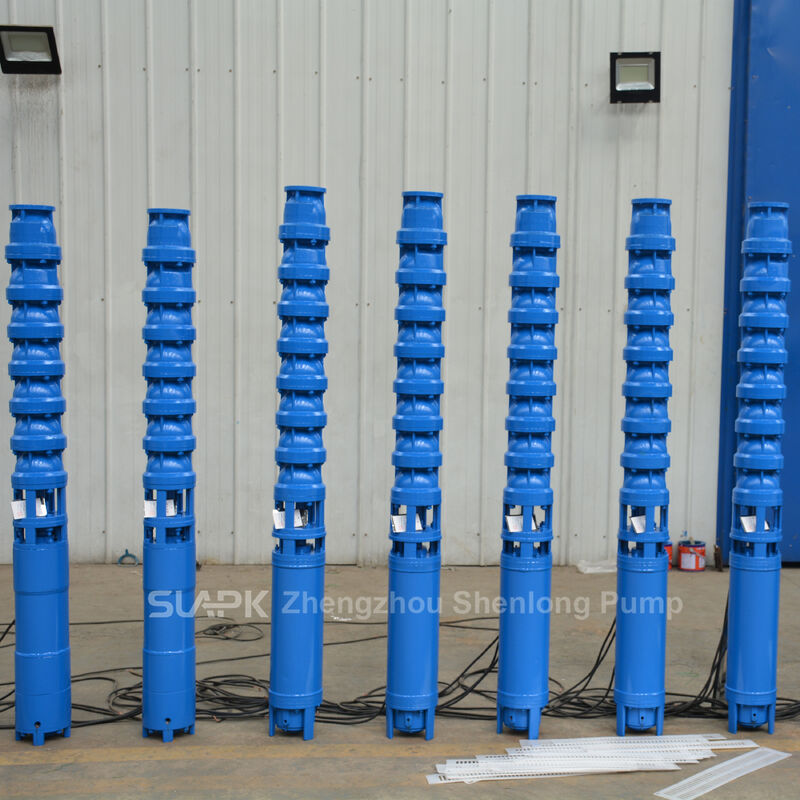

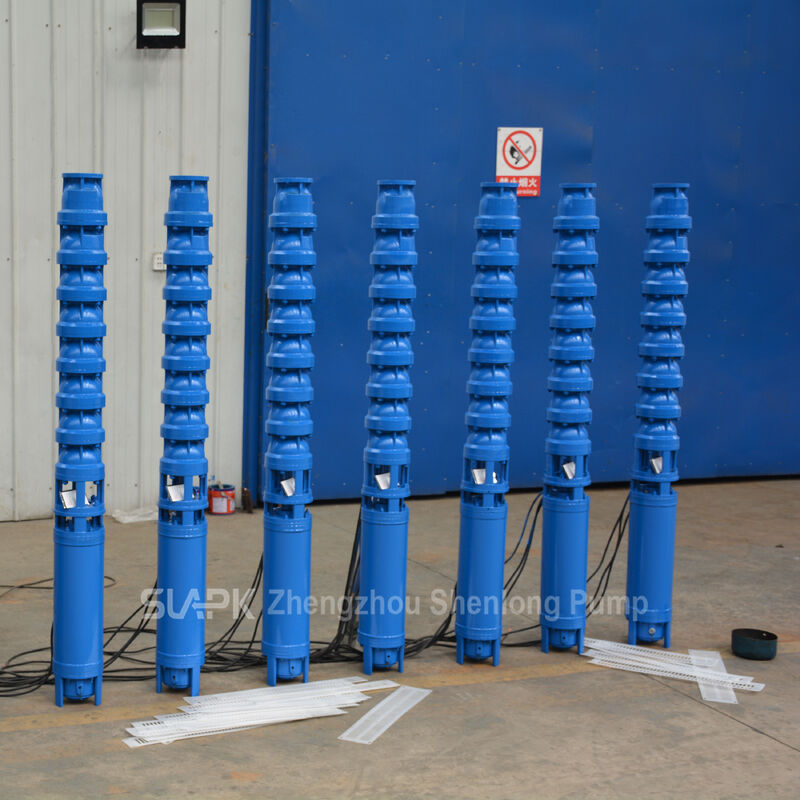

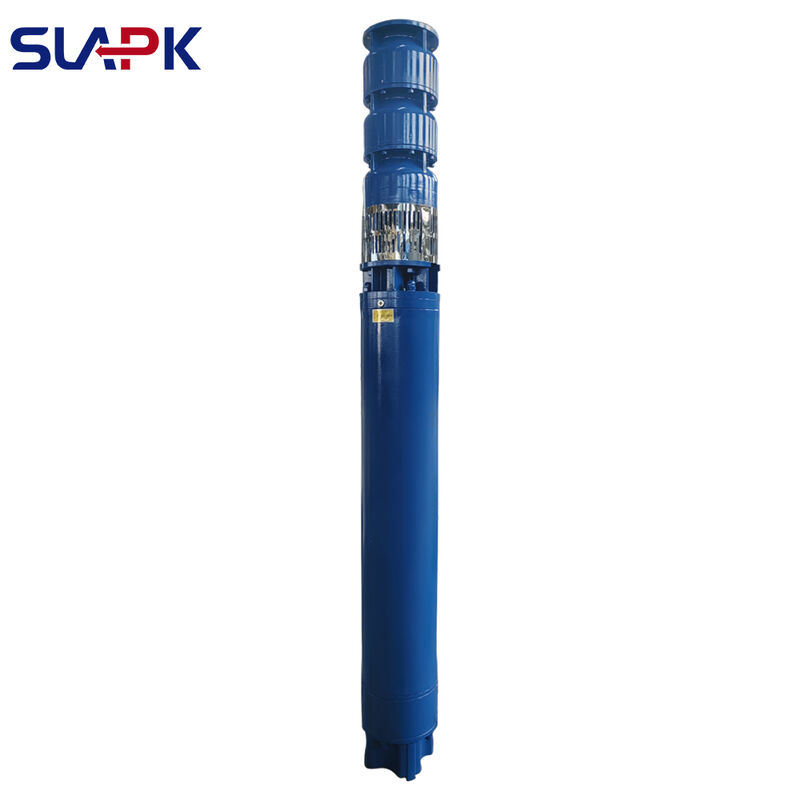

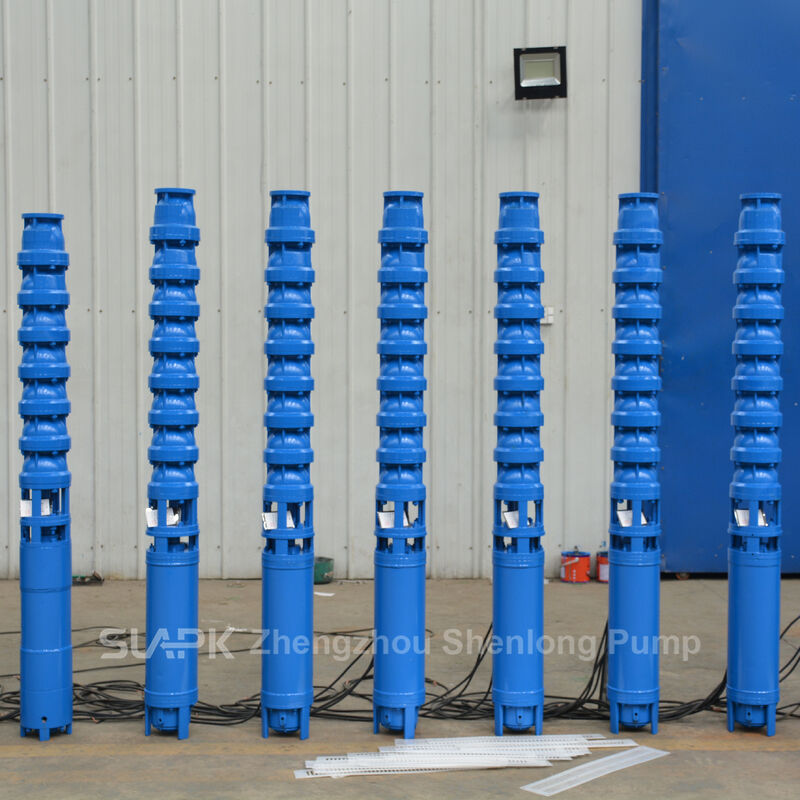

200QJ65-90 Cast Iron Submersible Well Pump with 65m³/h Flow and 90m Head for Deep Well Applications

MOQ: 1 set
Price: Please feel free to contact us
Standard Packaging: Deep well submersible pump is packed by wooden case or as your request.
Delivery Period: 2-5 working days after payment confirm
Payment Method: L/C,D/A,D/P,T/T,
Supply Capacity: 8563 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Henan, China
Brand Name
SLAPK
Certification
ISO;CE,BV; TUV; CCC; SGS; SASO
Model Number
QJ
Pump Material:
Cast Iron/Stainless Steel
Motor Power:
37kw 50hp
Frequency:
3 Phase 50hz/60hz
Pump Diameter:
7 8 10 12 Inches
Flow:
18-214m3/h
Volatge:
380v/440v/660v Or As Your Request
Head:
35-388m
ODM/OEM:
Accept
Highlight:

65m³/h Flow Submersible Well Pump

,

90m Head Deep Well Pump

,

Cast Iron Construction Submersible Water Pump

Product Description
200QJ65-90 Cast Iron Submersible Deep Well Pump
The 200QJ65-90 is a high-flow, high-head cast iron submersible well pump designed for deep-well water extraction, agricultural irrigation and industrial water-supply projects. The pump body and motor operate below the water level, reducing installation space and avoiding the suction-head limitations associated with surface pumps. Its durable cast iron construction and powerful three-phase motor make it suitable for continuous water lifting and transfer applications.
Technical Specifications
Product Name Cast iron submersible well pump
Model 200QJ65-90
Rated Flow 65m³/h
Rated Head 90m
Motor Power 27kW
Rated Voltage 380V
Frequency 50Hz
Phase Three phase
Rated Current 65.4A
Rated Speed 3000rpm
Discharge Diameter 100mm
Nominal Efficiency 76%
Pump Body Material Cast iron
Installation Vertical submerged installation
Applicable Standard GB/T 2816-2014
The specifications above are based on the product nameplate. Final specifications may vary according to operating conditions and customization requirements. Please confirm the technical data before ordering.
Product Features
  • High Flow and High Head: The combination of a 65m³/h rated flow and a 90m head makes the pump suitable for deep-well water lifting, large-area irrigation and medium- to long-distance water delivery.
  • Durable Cast Iron Construction: The cast iron pump body provides high mechanical strength for use in boreholes, reservoirs, storage tanks and general industrial water-supply installations.
  • Powerful 27kW Motor: The pump is equipped with a 27kW, 380V, 50Hz three-phase motor, providing stable power for continuous water-supply applications.
  • Submerged Operation: The pump operates directly in the water and does not require a long suction pipeline. This arrangement reduces ground-level installation space and eliminates conventional suction-lift limitations.
  • 100mm Discharge Outlet: The 100mm discharge connection is suitable for high-volume water delivery and can be matched with corresponding riser pipes, check valves and control equipment.
  • Flexible Configuration: Pump selection can be based on borehole diameter, well depth, dynamic water level, delivery distance, power supply and required total head.
Applications
  • Deep-well and groundwater extraction
  • Farmland, orchard and greenhouse irrigation
  • Industrial process and circulation water supply
  • Municipal and rural water-supply systems
  • Reservoir, tank and water-tower filling
  • Sprinkler and drip-irrigation systems
  • Construction and mining water supply
  • Livestock-farm and landscape water supply
Operating Conditions
The pump is recommended for clean water or liquids with similar physical and chemical properties. If the water contains significant sand, fibres, corrosive substances or large solid particles, provide the water-quality information before ordering.
Before operation, confirm that the borehole diameter is sufficient for installation, the required duty point is within the recommended operating range, and the available voltage and frequency match the motor nameplate. Adequate water flow should be maintained around the motor to ensure proper cooling during operation.
Pump Selection Guide
For accurate pump selection, please provide:
  • Required flow rate
  • Required total dynamic head
  • Borehole diameter and well depth
  • Static and dynamic water levels
  • Delivery distance and pipe diameter
  • Water quality and sand content
  • Available voltage and frequency
  • Required cable length
  • Daily operating hours
  • Order quantity
The total dynamic head should include the vertical lifting height, pipe-friction losses, losses through fittings and valves, and the required outlet pressure.
Installation Instructions
Inspect the pump body, cable insulation, fasteners and rotating components before installation. Use a properly rated riser pipe or lifting device. Never lift or suspend the pump by its electrical cable.
Install the pump vertically and fit check valves according to the well depth and pipeline conditions. The control system should include overload, phase-loss, short-circuit, leakage and dry-running protection. After initial startup, check the operating current, outlet flow, pressure, vibration and noise before beginning continuous operation.
Maintenance
Regularly inspect the cable, electrical terminals, pipeline connections and check valves. Stop the pump immediately if the flow decreases significantly or if abnormal current, vibration or noise occurs.
For water containing sand, shorten the inspection interval and check the impellers, guide components and bearings for wear. If the pump will remain unused for an extended period, clean it and inspect its insulation before storage.
Frequently Asked Questions
  • Can this pump be installed in a 90-metre-deep well?
    The rated head alone cannot determine the allowable well depth. Dynamic water level, discharge elevation, pipeline loss and required outlet pressure must be included in the calculation.
  • Can the pump handle sandy water?
    High sand content may accelerate wear of the impellers, guide components and bearings. Please provide the sand concentration and particle-size information before ordering.
  • Are other voltages available?
    The nameplate configuration is 380V, 50Hz and three phase. Alternative voltages or frequencies may be available upon technical confirmation.
  • How can I obtain an accurate quotation?
    Provide the required flow, head, borehole diameter, well depth, voltage, cable length, water quality, order quantity and delivery destination.
Request a Quote
To request a quotation for the 200QJ65-90 cast iron submersible well pump, send us your operating conditions and purchasing requirements. Pump selection support and matching recommendations for cables, control panels, riser pipes and check valves are available.
