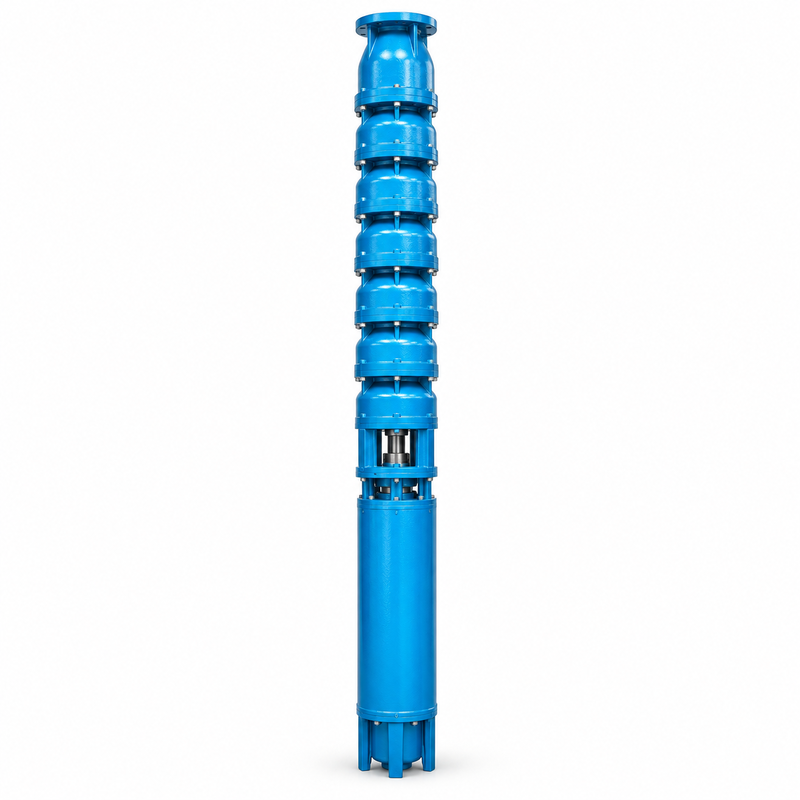

15kW Motor Deep Well Submersible Pump with 3-Inch Outlet and 50-60m Head for Borehole Water Extraction

The SLAPK 200QJ50-60/4 is a 15kW deep well submersible pump designed for borehole water extraction and water supply projects. This model offers a flow range of 46–54 m³/h, head range of 48–72 m, and features a 3-inch outlet.

Ideal for agricultural irrigation, storage tank filling, and industrial water supply applications where the required duty point matches the pump performance curve.

• Defined Performance Range: Catalog flow and head ranges provide a starting point for selecting a pump for your water supply system
• 15kW Motor Configuration: Site electrical supply, starting method and protection equipment must match the final motor configuration
• 3-Inch Outlet: Confirm connection standard and required adapters before ordering pipework

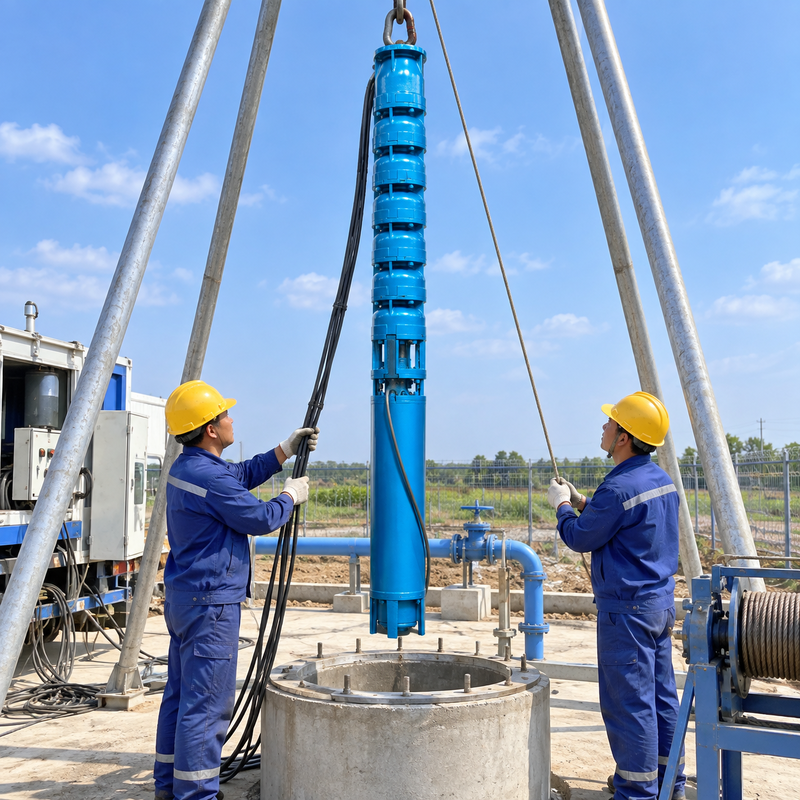

• Submersible Well Installation: Operates below water level; confirm well's internal diameter, pump assembly dimensions, and motor cooling requirements

Subject to water quality and duty-point verification, the 200QJ50-60/4 can be considered for:

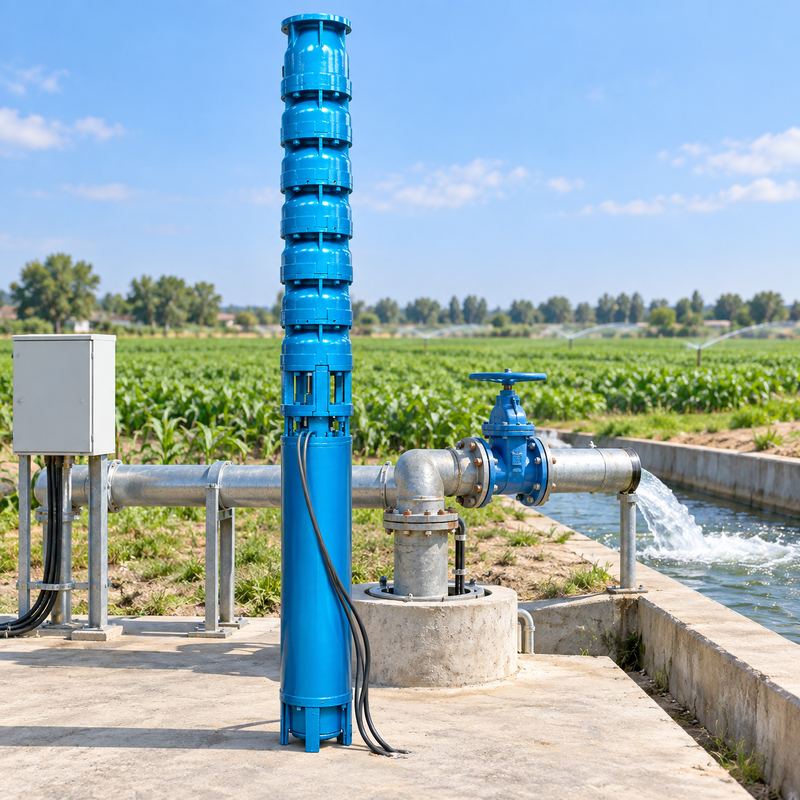

• Borehole water extraction for agricultural irrigation
• Storage tank filling

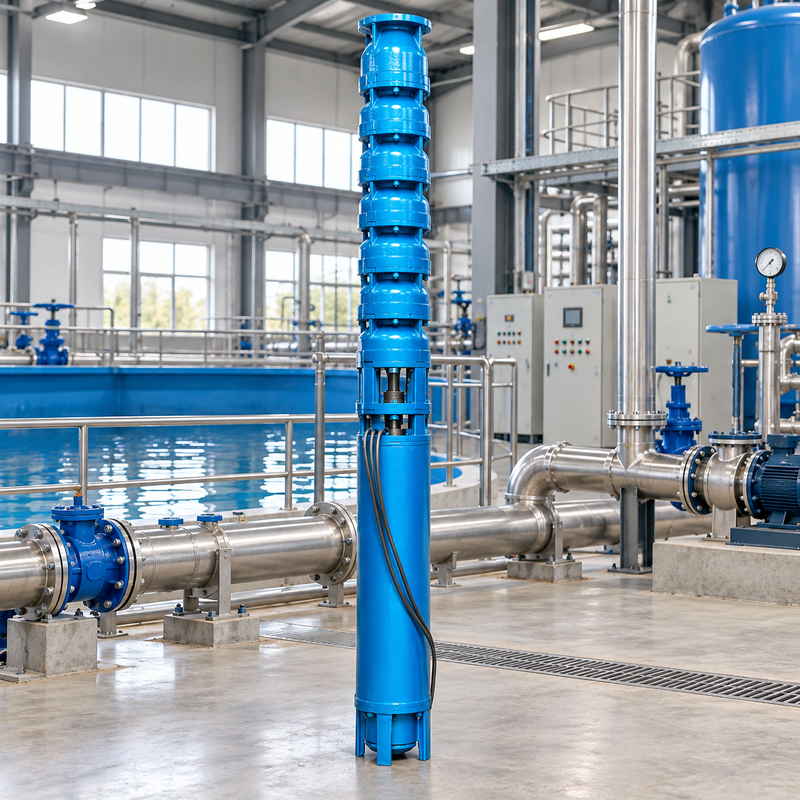

• Industrial utility water supply
• Rural water supply projects
• Well-to-distribution-system water transfer

Suitability for drinking-water service, corrosive water or water containing solids requires separate confirmation.

Start with the required flow and total dynamic head. For a well supplying an open tank, consider the vertical distance from the dynamic water level to the delivery point, together with pipeline and fitting losses.

A requirement near 50 m³/h at 60 m total dynamic head can be submitted for checking against this model's performance curve. The model designation alone does not confirm suitability.

Alternative Model: If the required flow is similar but the system needs greater head, compare the 200QJ50-90/6. That model has a 22kW motor, the same catalog flow range of 46–54 m³/h and a higher catalog head range of 72–108 m.

• Pump body, impeller and shaft materials
• Supply voltage, frequency and phase
• Pump outside diameter and minimum well diameter
• Overall dimensions and installation depth limits
• Outlet connection standard
• Permitted water temperature and sand content
• Motor cooling and minimum submergence requirements
• Cable length, control panel and protection functions

Optional materials and electrical configurations should be identified separately from the configuration included in the quotation.
