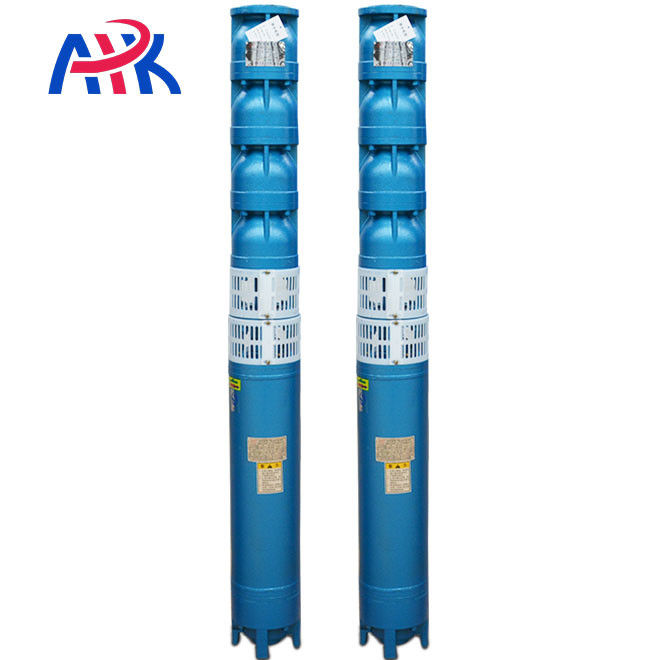

High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity
High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity
Contact Now

High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity

Minimum Order Quantity : 1 set Price : Negotiable

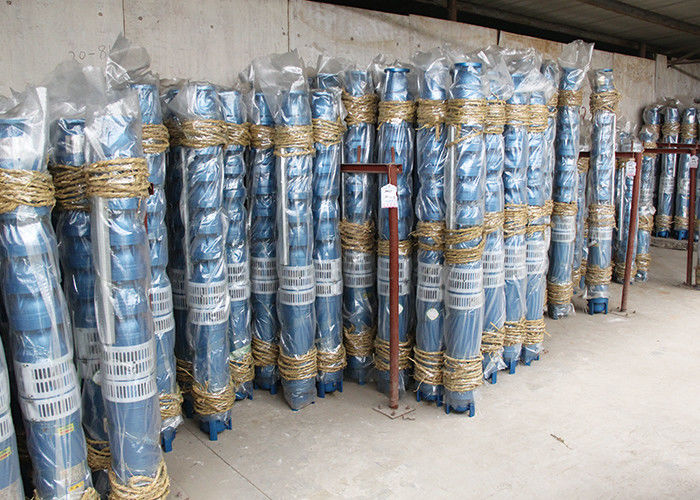

Packaging Details : Deep well submersible pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QJ

Detail Information
Head: 5-600m Flow:: 5-2000m3/h
Pump Diameter: 175mm-600mm Power:: 7.5-410kw
Voltage: 380v-1140v Frequency:: 3 Phase 50hz/60hz
Motor: 100% Copper Wire Certificates:: ISO, CE,BV, TUV, CCC
High Light:

submersible deep well pumps

,

deep well water pump

Product Description

30hp 35hp 40hp 50hp 60hp 75hp 85hp 100hp Water Deep Well Submersible Pump Price



Pump overview :

QJ deep well submersible pump is widely used in farmland irrigation, spray irrigation, water supply system for industrial buildings and civil buildings, water distribution system in mountain areas, low-lying areas and dunes, water supply and water drainage system for mines in urban or rural districts, and other water conservancy facilities.



Deep well submersible pump materials:

  1. Impeller: Cast iron HT200, or stainless steel
  2. Pump bowl: Cast iron HT200 or stainless steel ss304 / ss316
  3. Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
  4. Motor Seal: Rubber O-ring seal,mechanical seal
  5. Motor regulating sleeve: rubber

Deep well submersible pump features:

  1. Large capacity, high head
  2. Motor and pump are integrated, simple structure
  3. Easy to install, use, disassemble and maintain
  4. Taking little floor space
  5. No pollution to water source
  6. Most of the pump parts are made by ourselves, including mould and casting
  7. Our pump price is competitive based on same pump parameter manufacturer

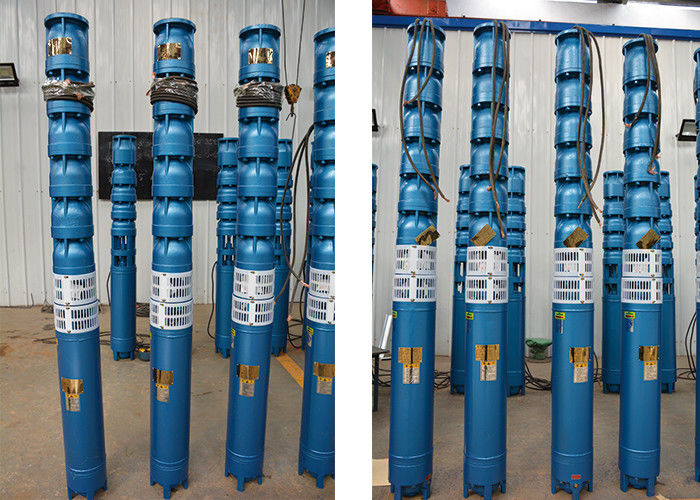

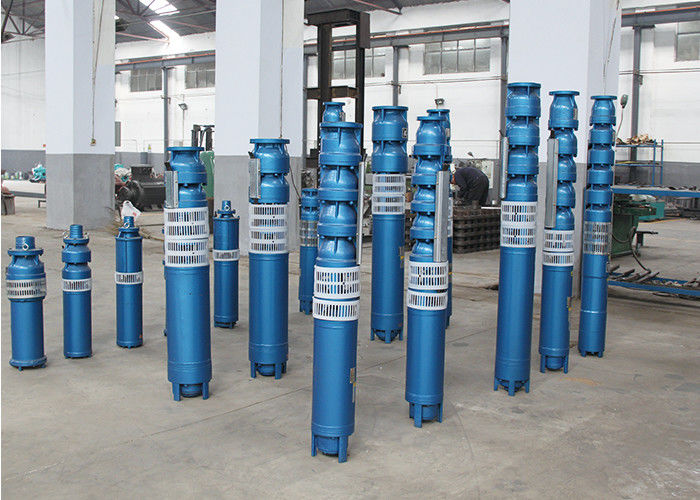

​Deep well submersible pump pictures:

High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity 0

​Deep well submersible pump parameters:

Model Motor Power Flow range Meter range Outlet size Rated current
QJ Series (kW) HP m3/h (m) Inch (") A
175QJ10-121/9 7.5 10 9/11 96-140 1.2" 18.4
175QJ10-135/10 9.2 13 9/11 130-140 1.2" 22.1
175QJ10-150/11 9.2 13 9/11 144-146 1.2" 22.1
175QJ10-165/12 11 15 9/11 158-172 1.2" 26.1
175QJ10-180/13 11 15 9/11 173-187 1.2" 26.1
175QJ10-195/14 13 18 9/11 187-203 1.2" 30.1
175QJ20-143/11 15 20 18-22 120-165 2" 49.7
200QJ15-81/6 7.5 10 13-17 68-92 3" 18
200QJ20-93/7 10 14 18-22 79-107 2" 24.7
200QJ20-108/8 13 18 18-22 92-125 2" 29.7
200QJ20-121/9 13 18 18-22 103-140 2" 29.7
200QJ20-135/10 15 20 18-22 115-156 2" 33.9
200QJ25-182/13 22 30 23-27 150-210 2" 48.2
200QJ32-160/10 25 34 29-35 136-184 3" 54.5
200QJ40-182/14 37 50 37-43 154-214 3" 79.7
200QJ50-105/7 25 34 46-54 84-126 3" 54.5
200QJ50-117/9 25 34 46-54 94-140 3" 54.5
200QJ50-120/8 30 41 46-54 96-144 3" 65.4
200QJ50-143/11 37 50 46-54 121-165 3" 79.7
200QJ100-30/2 15 20 80-120 26-32 4" 33.9
250QJ50-200/10 45 61 46-54 170-230 3" 94.1
250QJ50-240/12 55 75 46-54 204-276 3" 127.9
250QJ50-280/14 63 86 46-54 268-322 3" 152.3
250QJ63-100/5 30 41 58-68 75-100 3" 64.2
250QJ63-200/10 55 75 58-68 170-230 3" 114.3
250QJ63-220/11 63 86 58-68 180-253 3" 127.9
250QJ63-260/13 75 102 58-68 220-299 3" 152.3
250QJ63-300/15 90 122 58-68 205-343 3" 182.8
250QJ140-60/4 37 50 130-150 52-69 5" 77.8
250QJ160-30/2 22 30 148-172 25-35 5" 47.9
250QJ160-45/3 30 41 148-172 38-51 5" 64.2
250QJ160-60/4 45 61 148-172 52-69 5" 94.1
250QJ160-75/5 55 75 148-172 65-86 5" 114.3
300QJ200-100/5 90 122 186-214 85-115 6" 183.8
300QJ200-120/6 110 150 186-214 100-138 6" 222.1
300QJ240-22/1 22 30 223-257 18-25 6" 249.5
300QJ240-44/2 45 61 223-257 37-51 6" 47.3
300QJ240-66/3 75 102 223-257 56-76 6" 95.4
300QJ240-88/4 100 136 223-257 75-101 6" 154.1
300QJ400-40/1 75 102 368-432 38-42 8" 152.3
300QJ400-80/2 160 218 368-432 76-84 8" 284.4
300QJ400-120/3 220 299 368-432 117-123 8" 439.2
300QJ500-60/4 140 190 460-540 57-63 8" 249.5
300QJ500-75/5 180 245 460-540 72-78 8" 317.5

Working conditions of deep well submersible pump:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

  2. Motor must be filled with clean water.

  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.

  4. Water temperatureshould not higher than 20 ℃.

  5. Sand content of the water (by quality) not more than 0.01%.

  6. Water PH 6.5~8.5.

  7. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.

  8. The content of chloridion in water shouldnot be higher than 400mg/l.

  9. The water source must provide enough water for the pump to work continuously.

High Head Submersible Deep Well Pumps / Submersible Clean Water Pump Large Capacity 1
