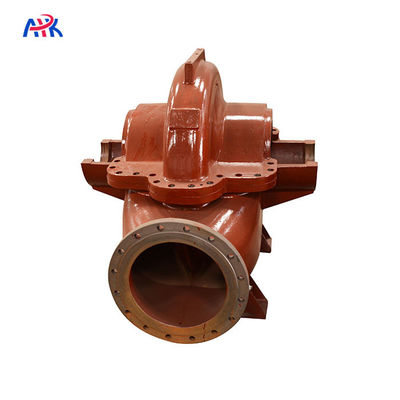

River Water Double Suction Pump Single Stage

Minimum Order Quantity : 1 set Price : Please feel free to contact us
Packaging Details : Double suction water pump is packed with seaworthy export standard plywood case. Delivery Time : 15-25 working days after payment confirmation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE;ISO Model Number: Double Suction Water Pump

Detail Information

Head: 1 Bar-22 Bar Flow: 110m3/h-12500m3/h
Power Supply: Electric Motor Or Diesel Engine Generator Install: Horizontal; Vertical
Warranty: 24 Months ODM OEM: Accept
High Light:

horizontal split case centrifugal pump

,

double suction horizontal split case pump

Product Description



Horizontal Electric Motor Diesel Generator Double Suction Split Case Water Pump Single Stage



Horizontal double suction pump specifitions:
1. Capacities: Q 110 to 12500 m3/h
2. Heads: H 10 to 220m
3. Pressures: P up to 2.5 MPa
4. Temperature: 0-105℃
5. Outlet diameter: φ80~φ800mm



Double suction water pump models:

(Notice: We will choose one suitable split case type according to your local site, inquiry, please)

Type Capacity Head Motor power
split case pump m3/h l/s m kw
OS80-210 131 36.4 60.5 37
164 45.6 55
197 54.6 50
OS80-210 106 29.4 47.7 30
133 37.1 43.5
159 44.5 37
OS80-270 80 22.2 21.3 11
99 27.8 19
120 33.3 17
OS80-270 166 46.1 97.5 75
207 57.5 90
248 69 79
OS100-250 230 64 83 90
288 80 75
346 96 67
OS100-250 85 23.6 13.7 7.5
106 29.4 12.5
128 35.5 11.3
OS100-310 242 67.2 98 110
302 83.9 90
363 100.8 80
OS125-230 426 118.4 68 132
541 150.3 60
639 177.6 48
OS125-300 397 110.3 97 160
497 138 88
596 165.6 75
OS200-520 565 156.9 67 200
706 196.1 62.5
847 235.2 55
OS250-480 800 222.4 50 185
1000 278 45.5
1200 333.6 38
OS250-600 772 214.4 98 315
965 268.1 90
1158 321.6 80
OS300-30 835 232 23.5 75
1044 290 19.8
1253 348 15
OS300-560 1258 350 68 355
1573 437 62
1888 524 54
OS300-700 1388 386 147 900
1735 482 136
2082 578 125
OS350-360 1354 376 32 160
1692 470 26.5
2030 564 20
OS350-430 1987 552 27 220
2484 690 21.5
2981 828 15
OS350-510 1786 496 57.5 400
2232 620 50
2678 744 40
OS350-620 1020 283.3 94 560
1700 472.2 83
2150 597.2 69
OS400-540 1110 308.3 54 315
1850 513.9 43
2340 650 33
OS400-620 1440 400 94 710
2400 667 82
3020 839 66
OS500-510 1465 407 31.3 220
2775 771 22.5
3600 1000 14
OS500-700 1800 500 60 560
3005 835 49
3905 1085 35



  Single stage split case double suction centrifugal water pump is horizontally installed, the casing and the cover of pump are divided along the axis. The pump cover is above the shaft and the casing is under the shaft. The inlet and the outlet are under the shaft. The center line of inlet and outlet is perpendicular to the axis. The rotor elements will be removed without disturbing the inlet piping and the outlet piping, only dismantling the pump cover while maintenance. The shaft seal uses packing seal or mechanical seal.

  Large flow high pressure single stage split case centrifugal pump horizontal, single stage, axially split case, double suction, between bearing, centrifugal pumps.



3 phase asynchronous electric motor double suction water pump:

River Water Double Suction Pump Single Stage 0



High voltage electric motor double suction water pump:

River Water Double Suction Pump Single Stage 1



Diesel engine generator double suction water pump:

River Water Double Suction Pump Single Stage 2



Double suction water pump applications



1. Water supply and distribution

2. Irrigation, drainage and flood control

3. District cooling/heating

4. Fire fighting

River Water Double Suction Pump Single Stage 3
