Sea Water Lifting Fish Farm Split Case Water Pump Seaculture Mariculture Marine

Product Description

Sea Water Lifting Seaculture Mariculture Marine Fish Farm Split Casing Double Suction Water Pump

Location: Philippines

Mainly usage: Pumping seawater for fish farm

The original requirements:

500-1000GPM, surface kind double suction pump for seawater. The water will go 900 m , 5 meters height, have 7 pcs 45℃ elbows via 6 inches pipe. The installation site is as below.

  Due to the water is a little salt, with corrosive. So we suggested SS316 material. This material is anti-corrosive, reasonable cost.

After calculated by our engineer, the TDH (Total Dynamic Head) is 60 meters.

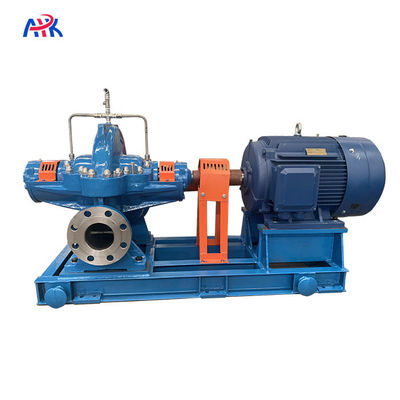

  The pump model is OS200-370-60HP(45KW) with flow rate 600GPM at head 60 meters, 4 pole,1750RPM, power supply 3phase 380V 60HZ, with packing seals. Because the hot weather, the seawater will evaporate, leaving solid salt particles during operation. In this situation, packing seals is better than mechanical seals for seawater pump.

After 40 working days, the test and production work has finished.

After 30 days waiting, the goods have arrived at Manila at 12th, August. The customer is satisfied with the good outlook and performance.

Split case water pump parameters:

(Notice: We will choose one suitable split case type according to your local site, inquiry, please)

Horizontal split case pump features:
1.High efficiency, lower noise

2.Rotor parts comply with API610

3.Rotation can be either Clockwise or Counter-Clockwise

4.Bearing lubricating is grease, oil type is also available

5.Impeller is balanced with ISO

6.Shaft seal can be either packing seal or mechanical seal

7.Rotation can be either Clockwise or Counter-Clockwise

8.Both can be interchanged, no need any modification

Split case pump materials:

1.Bronze, cast iron, carbon steels

2.Stainless steel 304, 316, 316L

3.Duplex stainless steel

4.Super duplex
