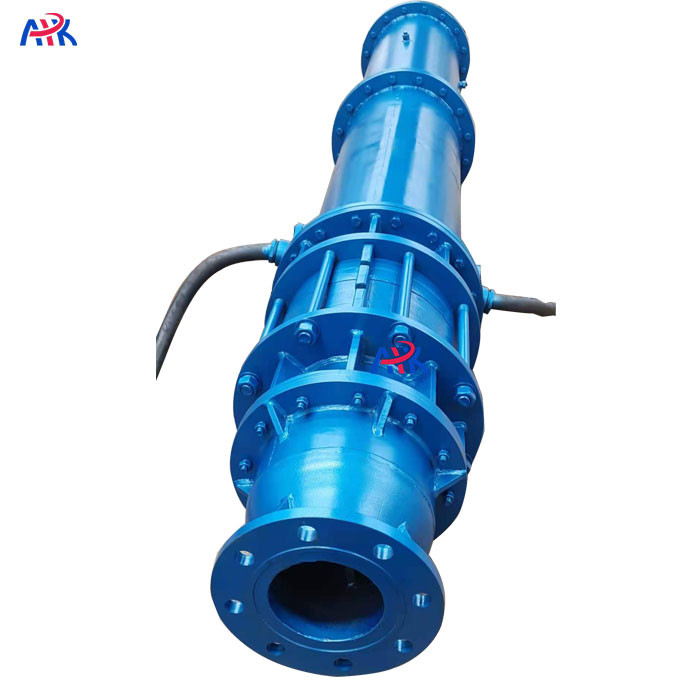

High Pressure Electrical Mine Drainage Water Submersible Pump

Minimum Order Quantity : 1 piece Price : please kindly contact
Packaging Details : Mine water submersible pump is packed with seaworthy export standard plywood case. Delivery Time : 15-35 working days
Payment Terms : T/T , Western Union , L/C , D/A , D/P , MoneyGram Supply Ability : 3000 Unit/Units per Month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;SGS Model Number: Submersible Mine Pump

Detail Information

Flow Rate: 200m3/h Water Submersible Pump Head: 600m Water Submersible Pump
Power: 600kw Water Submersible Pump Voltage: 380v/440v/460v/3000v/6000v Or As Per Request
Material: Cast Iron/stainless Steel OEM ODM: Accept
High Light:

Mine Drainage Water Submersible Pump

,

200m3/h Water Submersible Pump

,

600kw Water Submersible Pump

Product Description



High Pressure 380v 460v 1100v 3000v 6000v Electrical Mine Drainage Water Submersible Pump



How to get a formal quotation quickly?

1. What's flow rate and head meters you want?

2. Is it clean water or drainage water?
3. If it is drainage water, is there too much solid in the water?



Mine water submersible pump types:

(Notice: flow rate, head meters, voltage and material or other SPECIAL specifications, ODM OEM is acceptable)

Type Flow rate Head meter Power
QK100-240/3-120 80 300 120
QK100-400/5-180 100 400 180
QK100-640/8-300 100 640 300
QK150-320/4-220 150 320 220
QK150-480/6-350 125 576 350
QK150-560/7-410 180 464 410
QK150-640/8-470 125 768 470
QK150-720/9-520 150 720 520
QK150-800/10-600 150 800 600
QK200-200/2-200 220 175 200
QK200-300/3-300 220 273 300
QK200-400/4-410 400 400 410
QK200-500/5-470 500 500 470
QK200-600/6-600 200 600 600
QK200-700/7-600 200 700 600
QK200-800/8-720 20 728 720
QK200-900/9-850 200 900 850
QK200-100/10-1000 220 910 1000
QK300-100/2-140 300 100 140
QK300-800/16-1150 300 800 1150
QK400-200/4-350 400 200 350
QK400-400/8-720 400 400 720
QK560-255/3-620 560 255 620
QK560-340/4-850 630 303 850
QK1120-85/2-420 1120 85 420
QK1120-170/4-850 1120 170 850
QK1120-255/6-1300 1400 234 1300
QK1120-340/8-1700 1120 340 1700
QK1120-425/10-2200 1400 390 2200
QK1120-510/12-2400 1120 510 2400



  Mine water submersible pump is widely applied in the fields of mine production drainage, emergency rescue drainage of permeable accident, mine restorative drainage, which makes a good guarantee for mine production drainage and rescue. Zhengzhou Shenlong Pump Industry CO.,Ltd produces mine submersible pumps with a flow of 80-2000 cubic meters per hour and a lift of 16-900 meters; The motor power supply is up to 4200kw.

--Flow rate: 80m3/h-2000m3/h

--Head meters: 16m-900m

--Voltage: 380v/440v/460v/480v/660v/1100v/3000v/6000v or as per request

--Frequency: 3 phase 50hz/60hz

--Material: cast iron or stainless steel, or as per request

--Install: Vertical or horizontal



Special submersible mine pump specifications, inquiry or E-mail please. We have casting molds workshops and R&D centers to design and manufacture a new water pump type according to your local site.

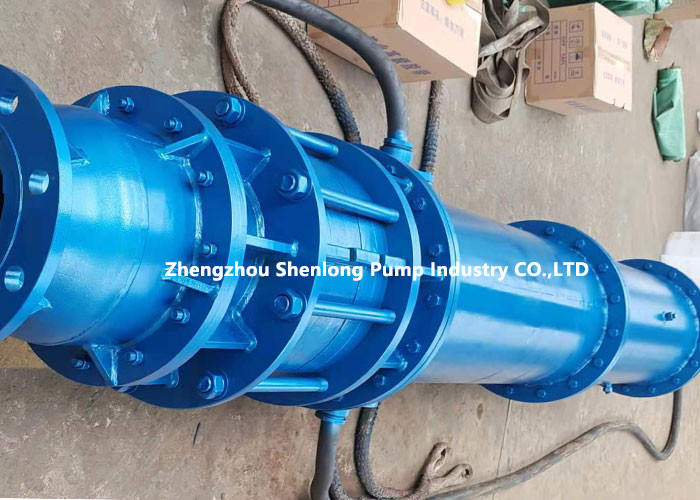

High Pressure Electrical Mine Drainage Water Submersible Pump 0



What you have to do before running mine submersible water pump?

1. The motor must be filled with clean water fully.

2. The instructions must be read carefully before installation and use. Or contact us directly.

3. Ensure the flow rate of water on the surface of the motor. If it cannot be guaranteed, install a deflector (cooling water cover).

5. The water pump fully submerged into water, and the minimum water level shall be 2m higher than the pump inlet during operation.

6. If it is necessary that testing running the submersible pump on the ground, the pump cavity must be filled with water. Otherwise, the sliding bearing will be damaged.



FAQ



Q:How to customize pumps and mechanical seals ?

A:Customers could send us application data or drawings , we will select suitable pump and seal .



Q:How long is production lead time?

A:Depends on quantity and water pump types, the normal small amount production is about 7-25 days.



Q:What’s type of shipping?

A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way



Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,

such as EXW, FOB, CIF.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
