Large Capacity Multistage Electric Mining Industry Water Submersible Pump

Minimum Order Quantity : 1 piece Price : please kindly contact
Packaging Details : Mine water submersible pump is packed with seaworthy export standard plywood case. Delivery Time : 15-35 working days
Payment Terms : T/T , Western Union , L/C , D/A , D/P , MoneyGram Supply Ability : 3000 Unit/Units per Month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;SGS Model Number: Mining Submersible Pump

Detail Information

Flow Rate: 1120m3/h Head: 170m
Power: 850kw Voltage: 380v/440v/460v/3000v/6000v Or As Per Request
OEM ODM: Accept Warranty: 24 Months
High Light:

Multistage Mine Submersible Pump

,

850kw Mine Submersible Pump

,

170m Head Submersible Water Pump

Product Description



600m3/h 1120m3/h 150m 175m  Horizontal Mining Industry Water Submersible Mine Pump



Mining water submersible pump types:

(Notice: flow rate, head meters, voltage and material or other SPECIAL specifications, ODM OEM is acceptable)

Type Flow rate Head meter Power
QK100-240/3-120 80 300 120
QK100-400/5-180 100 400 180
QK100-640/8-300 100 640 300
QK150-320/4-220 150 320 220
QK150-480/6-350 125 576 350
QK150-560/7-410 180 464 410
QK150-640/8-470 125 768 470
QK150-720/9-520 150 720 520
QK150-800/10-600 150 800 600
QK200-200/2-200 220 175 200
QK200-300/3-300 220 273 300
QK200-400/4-410 400 400 410
QK200-500/5-470 500 500 470
QK200-600/6-600 200 600 600
QK200-700/7-600 200 700 600
QK200-800/8-720 20 728 720
QK200-900/9-850 200 900 850
QK200-100/10-1000 220 910 1000
QK300-100/2-140 300 100 140
QK300-800/16-1150 300 800 1150
QK400-200/4-350 400 200 350
QK400-400/8-720 400 400 720
QK560-255/3-620 560 255 620
QK560-340/4-850 630 303 850
QK1120-85/2-420 1120 85 420
QK1120-170/4-850 1120 170 850
QK1120-255/6-1300 1400 234 1300
QK1120-340/8-1700 1120 340 1700
QK1120-425/10-2200 1400 390 2200
QK1120-510/12-2400 1120 510 2400



It’s a professional electric submersible pump type for mine, running continuously 24 hours for mine dewatering.

-- Flow rate: 80m3/h-2000m3/h

-- Head meters: 16m-900m

-- Voltage: 380v/440v/460v/480v/660v/1100v/3000v/6000v or as per request

-- Frequency: 3 phase 50hz/60hz

-- Material: cast iron or stainless steel

-- Install: Vertical or horizontal

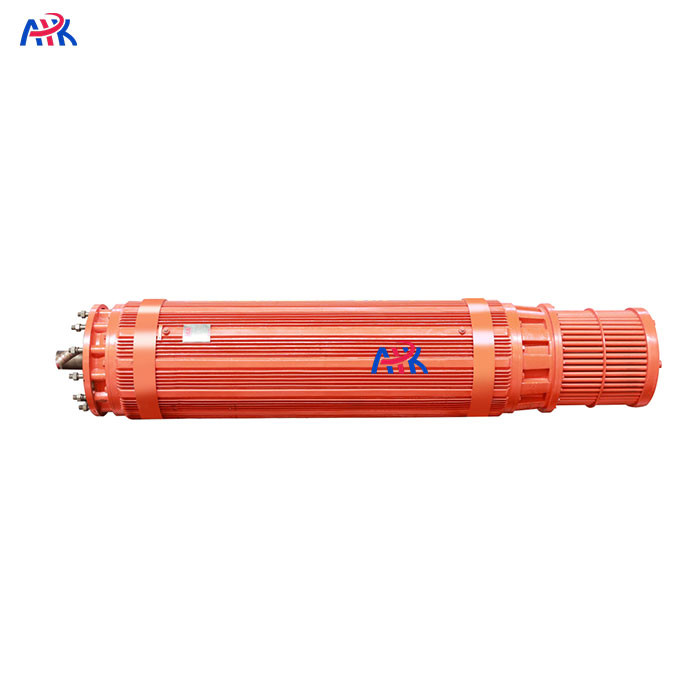

Large Capacity Multistage Electric Mining Industry Water Submersible Pump 0

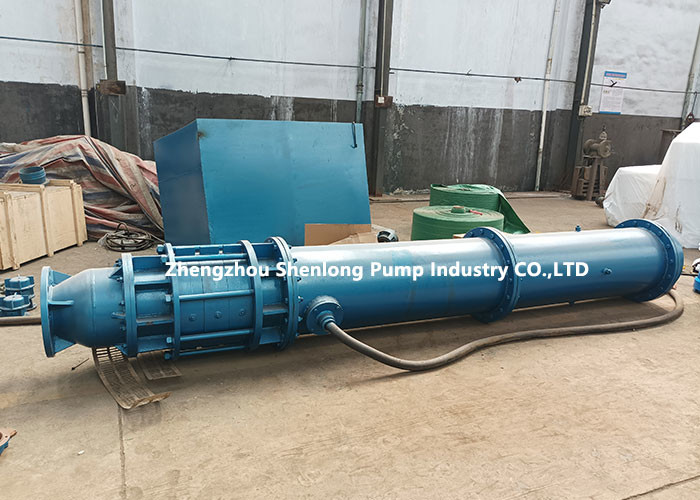

Large Capacity Multistage Electric Mining Industry Water Submersible Pump 1

Notes for mine industry submersible water pump:

1. The motor must be filled with water.

2. The instructions must be read before installation and use.

3. Ensure the flow rate of water on the surface of the motor. If it cannot be guaranteed, install a deflector (cooling water cover).

4. The electric pump must be reliably grounded for non well applications.

5. The electric pump must fully submerge into the water, and the minimum water level shall be 2m higher than the pump inlet during operation.

6. If it is necessary to test run the submersible pump on the ground, the pump cavity must be filled with water or other lubricating fluid. Otherwise, the sliding bearing will be damaged.



How to get quotation quickly?

1. What's flow rate and head meters?

2. Is the water clean or dirty?
3. Is there too much solid in the water? What's the max size of the solid?
4. Is there any limits on the pump outside diameter?
5. Is the water corrosive?
