Bottom Suction Deep Well Submersible Pump For Mine Dewatering Water 180 Mtr Head

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Submersible mine water pump is packed with seaworthy export standard plywood case. Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE; ISO;ABS; SGS Model Number: Mine Dewatering Submersible Pump

Detail Information

Motor Power: 75kw Submersible Pump Head Meters: 180m Submersible Pump
Flow Rate: 70M3/Hr Submersible Pump Power Supply: 3phase 415v 50hz
Material: Cast Iron Warranty: 24 Months
High Light:

Bottom Suction Mine Submersible Pump

,

Mine Dewatering Deep Well Submersible Pump

,

180m Head Mine Submersible Pump

Product Description





India Head 180 Mtr Discharge 70M3/Hr Bottom Suction Water Submersible Pump for Mine Dewatering Water



   This India client is a water pump supplier in their local market and they have their own factory producing water pumps. But their plant can only manufacture those with power lower than 45KW and head no more than 90 meters. He sent an inquiry "We are in requirement of 02 Nos Bottom suction deep well submersible pumps for mine dewatering, head 180 Mtr and discharge 70M3/Hr, 2900 rpm, motor with mechanical seal arrangement, kindly share the rates for the same" to our website.

   However, their techniques was hard to meet the power and head of the their customer’s request.so the client find us and ask us if we can provide the pump.our bottom suction multistage centrifugal pump matched the application of pumping water in the mine and we can meet the client’s technical need. Therefore, we provided the client with our offer and data sheet like performance curves and outline drawing.

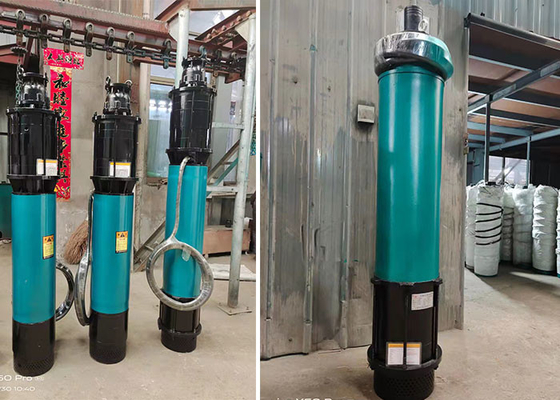

   Bottom Suction Deep Well Submersible Pump For Mine Dewatering Water 180 Mtr Head 0

Mine dewatering water submersible pump types:

( Head meters, power supply, material, all could be customized. ODM OEM is acceptable)

Model Flow rate Head Power
WQX series m3/h m kw hp
WQX12.5-100-7.5 12.5 100 7.5 10
WQX12.5-120-9.2 12.5 120 9.2 13
WQX12.5-140-11 12.5 140 11 15
WQX12.5-160-15 12.5 160 15 20
WQX12.5-200-18.5 12.5 200 18.5 25
WQX12.5-300-30 12.5 300 300 40
WQX15-130-11 15 130 11 15
WQX15-170-15 15 170 15 20
WQX15-180-18.5 15 180 18.5 25
WQX20-120-15 20 120 15 20
WQX20-270-45 20 270 45 60
WQX30-80-15 30 80 15 20
WQX30-105-15 30 105 15 20
WQX30-150-22 30 150 22 30
WQX30-220-45 30 220 45 60
WQX40-80-15 40 80 15 20
WQX40-100-22 40 100 22 30
WQX50-60-15 50 60 15 20
WQX50-70-18.5 50 70 18.5 25
WQX50-80-22 50 80 22 30
WQX50-120-30 50 120 30 40
WQX50-140-37 50 140 37 50
WQX80-40-18.5 80 40 18.5 25
WQX80-60-22 80 60 22 30
WQX80-80-30 80 80 30 40
WQX80-100-45 80 100 45 60
WQX100-30-15 100 30 15 20
WQX100-60-30 100 60 30 40
WQX120-60-37 120 60 37 50
WQX150-20-18.5 150 20 18.5 25
WQX150-60-45 150 60 45 60
WQX200-20-22 200 20 22 30
WQX200-30-30 200 30 30 40
WQX200-40-37 200 40 37 50
WQX300-12-22 300 12 22 30
WQX350-20-45 350 20 45 60
WQX400-15-37 400 15 37 50

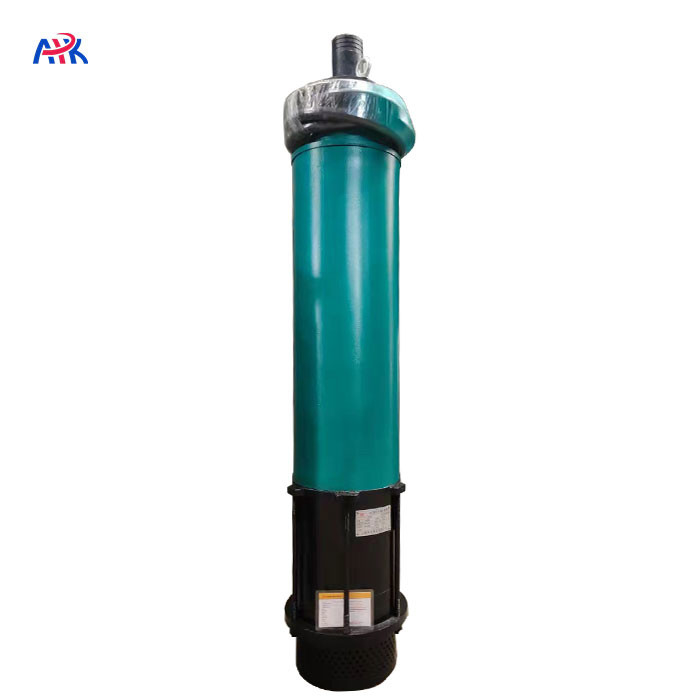

Bottom Suction Deep Well Submersible Pump For Mine Dewatering Water 180 Mtr Head 1

Delivered submersible water pump model to India:

Type: WQD70-180/3-75KW

--Flow rate: 70m3/hr

--Head meters: 180m

--Motor power: 75kw

--Power supply: 3phase 415v 50hz

--Material: Cast iron

--Speed: 2900rpm

--Discharge diameter: DN100

--Shaft seal: mechanical seal

--Pump inlet: Filter

--Max allowed particle size: 10mm

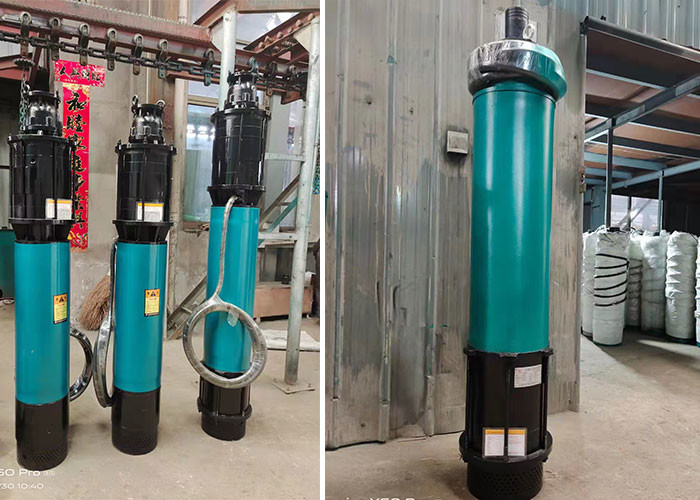

Bottom Suction Deep Well Submersible Pump For Mine Dewatering Water 180 Mtr Head 2

   Zhengzhou Shenlong Pump Industry CO.,Ltd is a manufacturer with more than 30 years’ production experience in the submersible pump and bottom suction multistage centrifugal pump was one of our best sellers.We have many models and we have exported to many countries in the world, the quality is tested and proved by actual application. So the client had a few days consideration and decided to start with one pump to test the quality,this pump works very well,so the client ordered another two sets in the following year and they became one of our stable clients.



Bottom Suction Deep Well Submersible Pump For Mine Dewatering Water 180 Mtr Head 3



FAQ



Q:How long is production time?

A: The normal production time of bottom suction submersible pump is about 7-15 days. Some models are in stock. Inquiry, please, we will confirm asap.



Q:What’s origin of water submersible pump?
A: He'nan Province, China



Q:What is the shipping terms you can provide?

A: EXW, FOB, CIF, DDP, FCA.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 30%, 50% or 100% down payment once PI confirmed, the balance will be paid after inspection and before shipment.

     L/C at sight.
