UAE 75 Kilo Watts 146Amps 415V Vessel Jack Up Sea Water Submersible Pump

Minimum Order Quantity : 1 piece Price : Inquiry or E-mail, please
Packaging Details : Sea water submersible pump is packed with seaworthy export standard plywood case. Delivery Time : 10-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;ABS Model Number: Sea Water Submersible Pump

Detail Information

Power: 75 Kilo Watts Submersible Pump Head: 40 Meters Submersible Pump
Flow: 370m3 Per Hour Submersible Pump Material: Stanless Steel 316
Power Supply: 3phase/415V/60Hz Warranty: 24 Months
High Light:

415V Vessel Electric Submersible Pump

,

40m Head Sea Water Submersible Pump

,

SS316 Sea Water Submersible Pump

Product Description



ABS Approval 370m3 per Hour at 40 Meters of Head Sea Water Submersible Pump



  UAE drilling company was established in the Abu Dhabi, UAE in 1977, operates a modern fleet of highly versatile self-propelled lift boats, across international markets. Their vessels provide a stable platform for delivering a wide range of safe and efficient services, primarily in the offshore oil, gas and renewable energy sectors.

  UAE drilling company are looking for a replacement sea water submersible pump for their fleet of jack up barges. This submersible pump needs to provide 370m3 per hour at 40 meters of head. Also, they need connection flange details and typical connection details.

They required the sea water lifting submersible pump to come with a non-return valve, 415V, 3 phase, 60HZ, 75 Kilo watts, 146Amps, with cable length - 8 meters. please note that pump will need to come with ABS Class approval.





All details had been approved, we chose one suitable submersible pump and sent a formal quotation.

Model 300QJH370-40
Flow rate 370m3/hr
Head meters 40m
Motor power 75kw, 100hp
Power supply 3phase/415V/60Hz
Pump dia 280mm
Out let dia 200mm
Pump material SS316
Suction casing SS316(1.4401)
Pump bowl SS316(1.4401)
Cat ring SS316(1.4401)
Impeller SS316(1.4401)
Shaft Duplex material (1.4462)
Bearing bush rubber
Giant bearing SS316(1.4401)
Motor SS316(1.4401)
Coupling Duplex material(1.4462)
Bolting A4-70
Suction strainer SS316(1.4401)

Kindly note:
1. The offered pump with SS316 material with duplex material pump shaft as required.
2. The offer includes 5m submersible power cable.

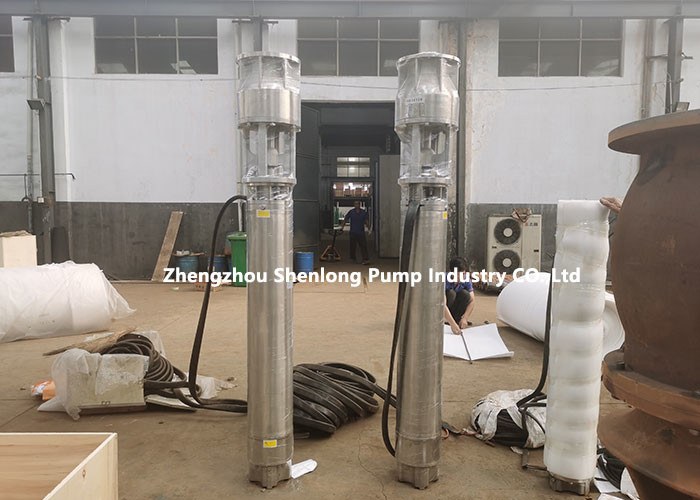

UAE 75 Kilo Watts 146Amps 415V Vessel Jack Up Sea Water Submersible Pump 0

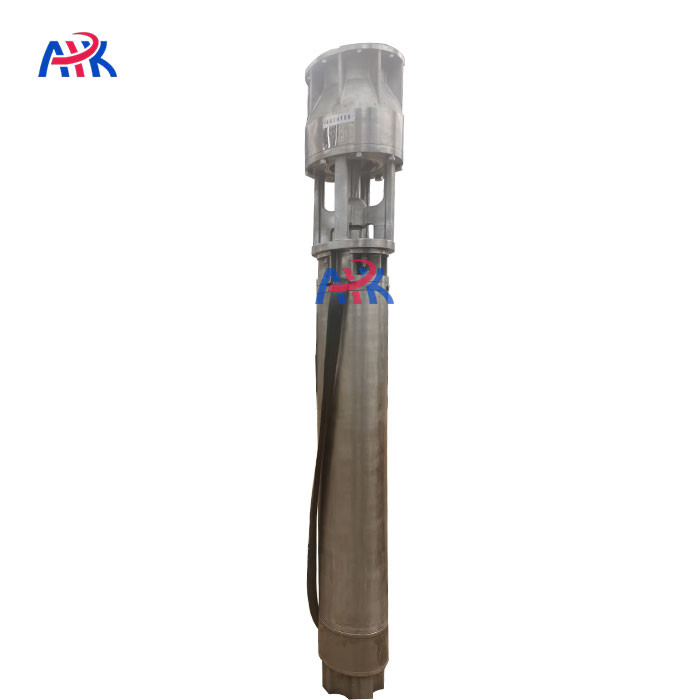

UAE 75 Kilo Watts 146Amps 415V Vessel Jack Up Sea Water Submersible Pump 1



ABS Class approval as below:

UAE 75 Kilo Watts 146Amps 415V Vessel Jack Up Sea Water Submersible Pump 2

100 hp sea water submersible pump types:

(Notice: flow rate, head meters, voltage and materials, all could be customized)

Model Power Flow range Head range
QJ type kw hp m3/h m
250QJ50-340/17 75 100 50 340
250QJ63-260/13 75 100 63 260
250QJ80-200/10 75 100 80 200
250QJ100-162/9 75 100 100 162
250QJ125-128/8 75 100 125 128
250QJ140-120/8 75 100 140 120
250QJ160-105/7 75 100 160 105
300QJ200-80/4 75 100 200 80
300QJ240-66/3 75 100 240 66
300QJ300-60/3 75 100 300 60
450QJ800-16/1 75 100 800 16

What will you do when you running water submersible pump?

1. Checking the power cable, no broken

2. Turning the impeller by wrench, confirm it can be turned smoothly

3. Checking the drain hole at the bottom of the water pump. If it is loose, tighten it

4. Fulling the motor with clean drinking water. We will share video if you don’t know how to do. The submersible water pump will be burnt if submersible motor not filled fully water.

5. Tighten the screws of the water injection hole and exhaust hole on the upper part of the motor

6. After installing the pump into the well, observe the flow rate and current. If the current is common and the flow is small, it may be reversed. Adjust the steering. If the current is still high and the flow is small, there may be water leakage from the pipeline connection. Check the pipeline.

7. We have video if you don't know how to do. E-mail or Message to Whatsapp, please.



Why choose us?

1. Specialized production Manufacturer for Submersible Pump

2. Focus on technological innovation, Over Industry leading level

3. Good experience at Domestic and oversea market

4. Carefully paint for Good appearance

5. Years of International service standards, Engineer one-to-one service

6. CE; ISO; ABS

UAE 75 Kilo Watts 146Amps 415V Vessel Jack Up Sea Water Submersible Pump 3
UAE 75 Kilo Watts 146Amps 415V Vessel Jack Up Sea Water Submersible Pump 3
