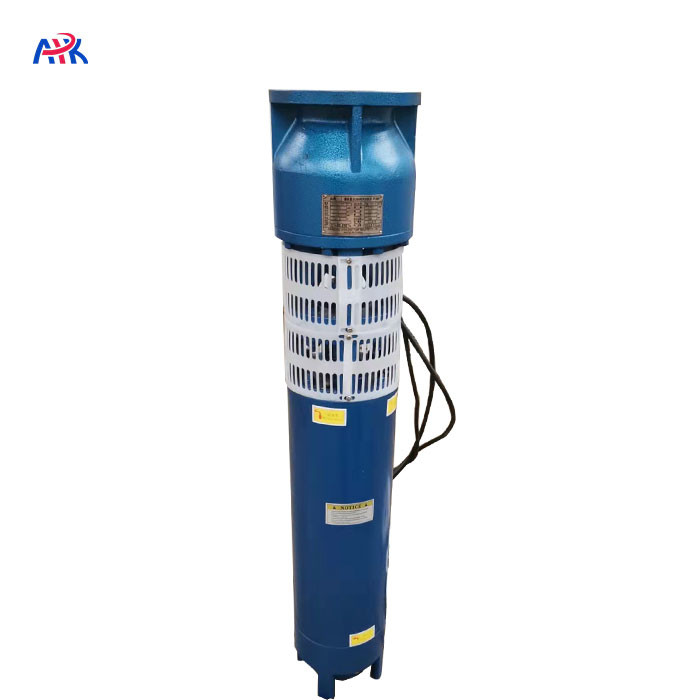

800GPM Tank Water Submersible Pump And Pipeline Pump For Water Truck System

Minimum Order Quantity : 1 piece Price : Please feel free to contact us
Packaging Details : Submersible water pump is packed with seaworthy export standard plywood case. Delivery Time : 15-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE; ISO;ABS; SGS Model Number: 800gpm Submersible Pump

Detail Information

Motor Power: 25kw Submersible Pump Head Meters: 30m Submersible Pump
Flow Rate: 800gpm Submersible Pump Power Supply: 3phase 380v 50hz
Material: Cast Iron Warranty: 24 Months
High Light:

800GPM Tank Water Submersible Pump

,

Water Truck Submersible Pipeline Pump

,

25kw Tank Water Submersible Pump

Product Description





Jamaica 800GPM Submersible Pump Pull Water from Well to Fill Tank





Project overview:

1. This submersible pump pulls water from the well and fills 24 tanks.

2. These 4 pumps will pull water from the tanks and fill water trucks 5 meters high

3. The well starts 9 meters below ground and is 25 meters deep.

4. The drawing was enclosed.

5. Capacity: 800GPM

6. Head: 25 meters

800GPM Tank Water Submersible Pump And Pipeline Pump For Water Truck System 0

  According to the requirements, we suggest 250QJ200-30-25KW. with cast iron material.

  During the communication, the customer wants to know the price of SS304 material to compare the cost as well. We also quoted SS304 submersible deep well pump for ref.

  Compare with the cast iron material, the SS304 material has good corrosion resistance, has longer working life, mostly used in drinking water.

   Due to mainly usage of the pump, it’s for watering car, the customer chose cast iron material as economic choice. Before making the payment, customer has some concerns about our product quality and delivery. We provided the contact information of our European and American cooperation customers to him. After communication, these concerns were dispelled.

   Besides, we have a lot of cast iron spare parts in stock, which can ensure delivery within a week. The customer asked for a 25 meters submersible power cable. We made special submersible motor. The new motor with 25 meters motor leads submersible power cable, no joints. In this situation, there is no joint in the middle to prevent the possibility of short circuit caused by the connector to protect the motor.



800gpm water submersible pump types:

( Head meters, power supply, material, all could be customized. ODM OEM is acceptable)

Model Power   Flow Head
QJ type kw hp m3/h m
300QJ200-20/1 18.5 25 186-214 17-23
300QJ200-30/1 25 35 186-214 27-33
300QJ200-40/2 37 50 186-214 35-45
300QJ200-60/3 55 75 186-214 51-69
300QJ200-80/4 75 100 186-214 68-92
300QJ200-100/5 90 120 186-214 85-115
300QJ200-120/6 110 150 186-214 100-138

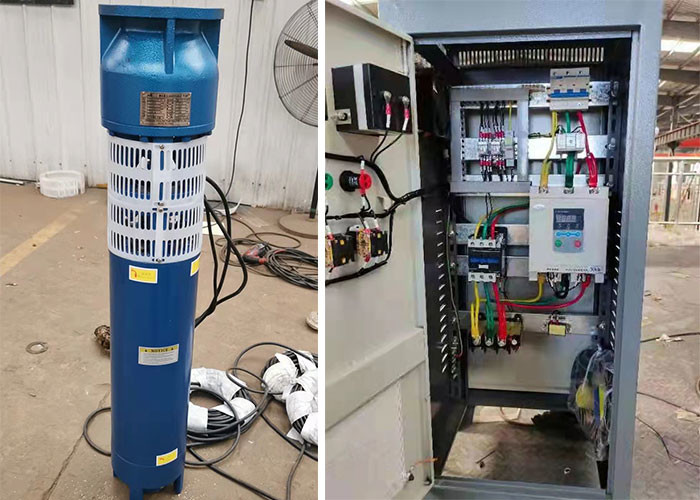

Delivered submersible water pump model to Jamaica:

Type: 250QJH200-30-25kw

--Flow rate: 800gpm

--Head meters: 30m

--Motor power: 25kw

--Power supply: 3phase 380v 50hz

--Material: Cast iron

--IP Class: IP68

--Insulation Class: F

--Motor Working: S1

--Winding Type: re-winding, double layer insulation wire PE2+PA

--Cooling Method: water cooling

--Medium: less than 50 degree clean water



800GPM Tank Water Submersible Pump And Pipeline Pump For Water Truck System 1



  Zhengzhou Shenlong Pump Industry CO.,Ltd in China, created its own value chain. With trust, expertise, challenge, and pleasure as our core values. We listen to our customers' voice and provide best solutions accordingly with minimized cost. Zhengzhou Shenlong Pump Industry CO.,LTD grows together with ourselves, customers and society, also looking partners all over the world.



800GPM Tank Water Submersible Pump And Pipeline Pump For Water Truck System 2



FAQ



Q:How long is production time?

A: The normal production time of electric submersible pump is about 7-25 days. Some models are in stock. Inquiry, please, we will confirm asap.



Q:What’s origin of water submersible pump?
A: He'nan Province, China



Q:What is the shipping terms you can provide?

A: EXW, FOB, CIF, DDP.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 30%, 50% or 100% down payment once PI confirmed, the balance will be paid after inspection and before shipment.

     L/C at sight.
