VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture

Minimum Order Quantity : 1 piece Price : Inquiry or E-mail, please
Packaging Details : Sea water submersible pump is packed with seaworthy export standard plywood case. Delivery Time : 10-25 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;ABS; SGS; TUV;BV Model Number: Sea Water Submersible Pump

Detail Information

Head: 60m Submersible Pump Flow: 1000gpm Submersible Pump
Motor Power: 63kw 85hp Submersible Pump Material: Stanless Steel 316L
Power Supply: 3 Ph 440v 60Hz Warranty: 24 Months
High Light:

900gpm Water Submersible Pump

,

Stainless Steel 304 Water Submersible Pump

,

60hp Water Submersible Pump

Product Description



VFD 1000GPM 60m SS316L Submersible Seawater Pump 10 Inch 440v 60hz for Venezuela Mariculture





Location: Venezuela

The project requirements of submersible seawater pump:

First, the deep well or borehole well was located besides beach, with 60 meters deep, the dynamic water level is 50 meters.

Second, the inner diameter of the deep well is 16”

Third, the required flow rate or capacity is 1000GPM, that’s mean 226m3/hr.

Last, the local power supply is 3phase/440V/60Hz.

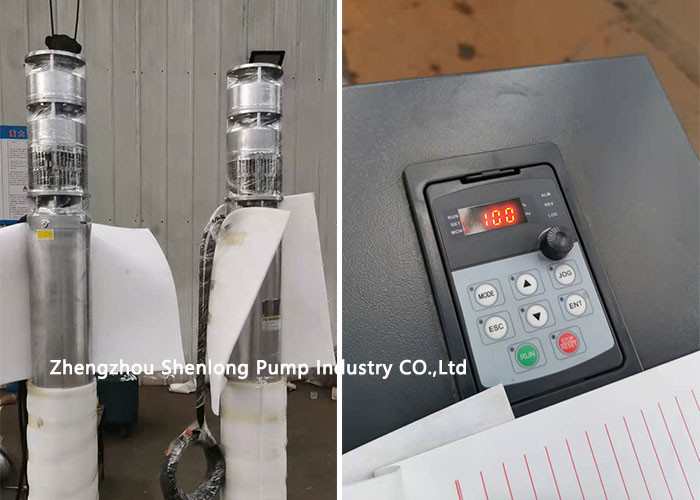

One more thing, due to the lack of Municipal power supply, the customer decided to use diesel generator. In order to reduce the cost of the generator, we suggest VFD (Frequency starter )

If with VFD control panel, the power of generator only need 1.5 times of submersible motor power.

VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture 0

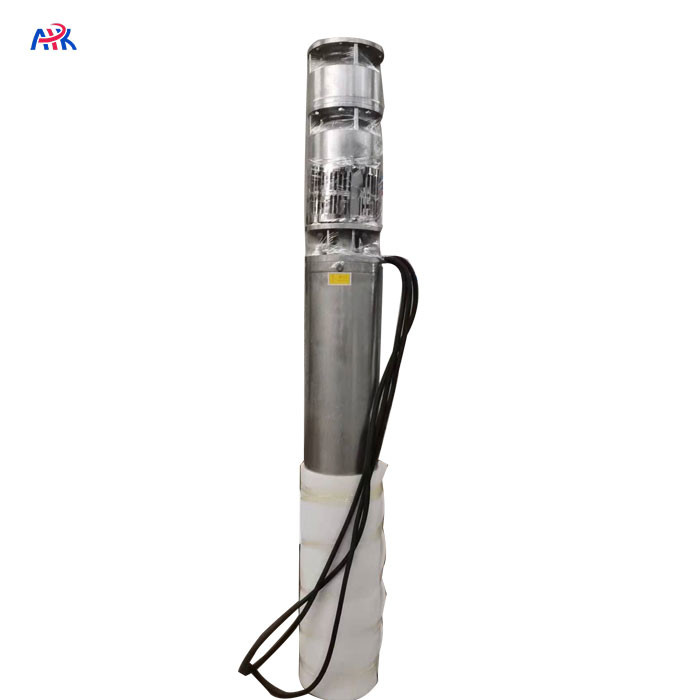

After calculating by our engineer, finally we suggest submersible deep well pump with SS316L material, special for sea water.

The model is 250QJH230-60-63KW, with power supply 3phase/440V/60Hz.

VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture 1

For the discharge pipe, in order to reduce the cost, we use carbon steel material pipe with PE liner, the liner is anti-corrosive type. The outside of the pipe use marine paint to protect the pipe.

VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture 2

For all the screw and nuts, we use A4-70 (SS316L material as well).

VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture 3

Finally, the customer decided to buy three pcs of pumps, and two units of pumps.

Now the production work of the pumps is finished, the tests result is good as well.

Expecting these submersible pumps can serve our customer successfully.



Installation drawing of seawater submersible pump:

VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture 4

Seawater submersible pump models:

(Notice:flow rate, head meters, power supply, material, ODM OEM is available)

Model Power Flow rate Head meters Outlet diameter
QJ type kw hp m3/h m Inch(")
200QJ20-135/10 15 20 20 135 2"
200QJ20-175/13 18.5 25 20 175 2"
200QJ20-202/15 22 30 20 202 2"
200QJ20-283/21 30 40 20 283 2"
200QJ20-338/25 37 50 20 338 2"
200QJ25-182/13 22 30 25 182 2"
200QJ25-294/21 37 50 25 294 2"
200QJ32-104/8 18.5 25 32 104 3"
200QJ32-144/9 22 30 32 144 3"
200QJ32-195/15 30 40 32 195 3"
200QJ32-234/18 37 50 32 234 3"
200QJ40-117/9 22 30 40 117 3"
200QJ40-208/16 37 50 40 208 3"
200QJ50-78/6 18.5 25 50 78 3"
200QJ50-91/7 22 30 50 91 3"
200QJ63-112/8 30 40 63 112 3"
200QJ80-44/4 15 20 80 44 4"
200QJ80-88/8 30 40 80 88 4"
200QJ100-75/5 37 50 100 75 4"
250QJ50-80/4 18.5 25 50 80 3"
250QJ50-340/17 75 100 50 340 3"
250QJ63-60/3 18.5 25 63 60 3"
250QJ63-100/5 30 40 63 100 3"
250QJ63-260/13 75 100 63 260 3"
250QJ100-72/4 30 40 100 72 4"
250QJ125-128/8 75 100 125 128 5"
250QJ160-105/7 75 100 160 105 5"
300QJ200-20/1 18.5 25 200 20 6"
300QJ240-22/1 22 30 240 22 6"
300QJ300-20/1 25 35 300 20 6"
300QJ300-40/2 55 75 300 40 6"
300QJ300-60/3 75 100 300 60 6"
300QJ300-80/4 110 150 300 80 6"
300QJ300-100/5 140 190 300 100 6"
300QJ300-120/6 160 220 300 120 6"
300QJ300-140/7 185 250 300 140 6"
300QJ300-160/8 220 300 300 160 6"
350QJ320-40/2 63 85 320 40 8"
350QJ320-90/3 140 190 320 90 8"
350QJ320-120/4 185 250 320 120 8"
400QJ400-50/1 90 120 400 50 8"
450QJ500-80/2 185 250 500 80 8"
450QJ800-16/1 75 100 800 16 12"
450QJ1000-16/1 90 120 1000 16 12"
500QJ640-56/2 185 250 640 56 10"
550QJ1200-18/1 110 150 1200 18 16"
600QJ800-50/2 220 300 800 50 12"
600QJ800-75/3 300 400 800 75 12"
600QJ1000-20/1 110 150 1000 20 12"
600QJ1000-40/2 220 300 1000 40 12"
600QJ1000-60/3 300 400 1000 60 12"



Notes:

1. Motor cavity MUST BE fill with clean water when pump working
2. DO NOT use the cable as sling when install, should wear ropes on the handle
3. The first stage impeller should go down the water level
4. After shut down the power, should wait for more than 3mins when restart the pump
5. When the pump finish work, it's better to cut off the power.



Feature:

1. good performance, safety and reliable operation
2. nice appearance, highly energy-saving
3. low noise, little vibration, simple construction
4. Corrosive resistant



Why choose us?

1. Specialized production Manufacturer for Submersible Pump

2. Focus on technological innovation, Over Industry leading level

3. Good experience at Domestic and oversea market

4. Carefully paint for Good appearance

5. Years of International service standards, Engineer one-to-one service

6. CE; ISO; ABS

VFD 1000GPM SS316L Submersible Seawater Pump 440v 60hz for Mariculture 5



FAQ



Q:How long is warranty?

A:About 24 months.



Q:How long is production lead time?

A:Depends on quantity, the normal small amount production is about 10-25 days.



Q:What’s type of shipping?

A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way



Q:What is the shipping terms you can provide?

A:Depends on customer's requirements, we can provide different transportation terms,

such as EXW, FOB, CIF.



Q:How can I pay for my items? What is the payment you can provide?

A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
