Drip Irrigation System Surface Centrifugal Clean Water Pump Assembled Diesel Engine

Minimum Order Quantity : 1 piece Price : Inquiry or E-mail, please
Packaging Details : Diesel engine centrifugal water pump is packed with seaworthy export standard plywood case Delivery Time : 7-25 working days after payment confirmation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 3000 pieces per month
Place of Origin: China Brand Name: APK
Certification: CE;ISO;SGS;ABS;TUV;BV;COO Model Number: Diesel Engine Water Pump

Detail Information

Power Supply: Diesel Engine Flow Rate: 6.3m3/hr-400m3/hr
Install: Horizontal Type Of Connection: Flange
Shaft Seal Type: Packing Seal, Mechanical Seal Material: Cast Iron/stainless Steel
High Light:

Drip Irrigation Split Case Pump

,

400m3/H Centrifugal Water Pump

,

Anti Cavitation Centrifugal Water Pump

Product Description

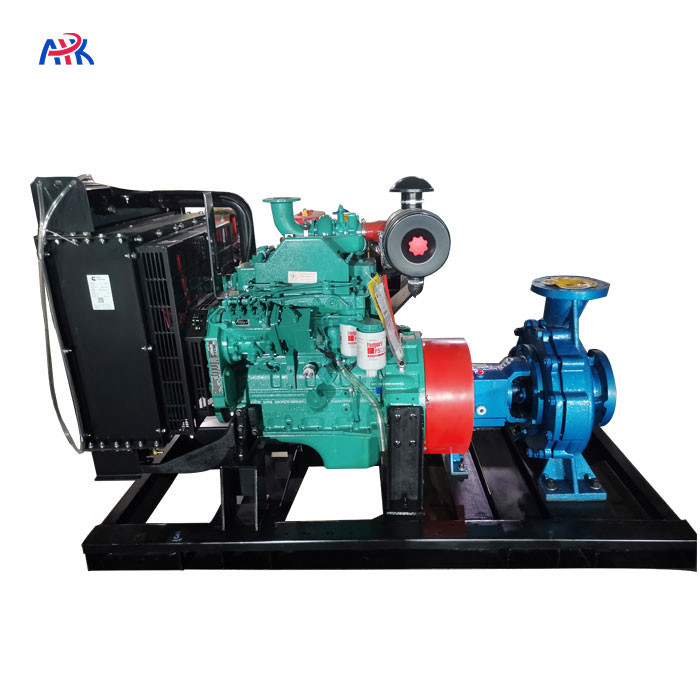

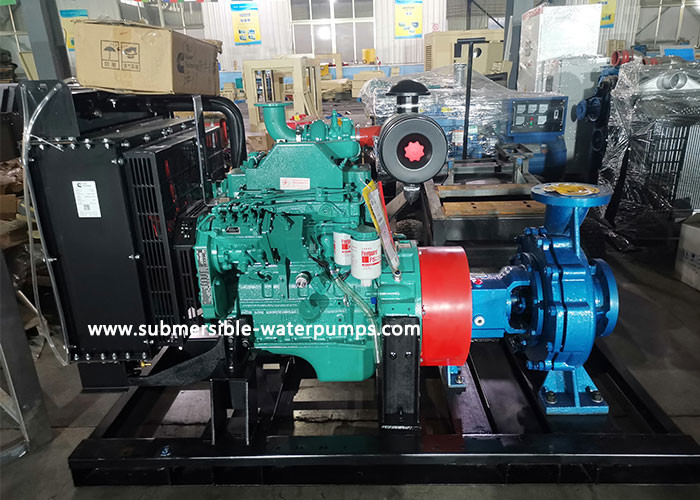

IS Series Drip Irrigation System Surface Centrifugal Clean Water Pump Assembled With Diesel Engine



Diesel engine centrifugal end suction water pump is a single stage, single suction water pump applies to work in system of industry and city water supply & drainage, water supercharging of high rise building, park spray irrigation, water pressurize in fire control, remote water delivery, cycle refrigeration of heating and ventilation, circulatory supercharger of cold-warm water in bathroom, etc.



Diesel engine centrifugal end suction water pump is designed as back pull out construction, which can help the end user maintenance much easier, mainly applied in the hot water circulation, which allowed the medium to 105 ℃



It also have many different materials design for meeting different working conditions.



IS end suction centrifugal pump features:

1. Simple, reliable, small, light

2. Good anti-cavitation performance

3. Little power consumption

4. Easy to maintain



End suction centrifugal water pump, powered by electric motor, or diesel engine(Special brand: WECHAI; Cummins)

Drip Irrigation System Surface Centrifugal Clean Water Pump Assembled Diesel Engine 0

Diesel engine centrifugal water pump models:

(Note: flow rate, head meters, material and power supply, ODM OEM is available)

Model Flow Head Power Speed
IS type m3/h l/s m kw r/min
IS50-32-125 7.5 2.08 22 2.2 2900
12.5 3.47 20
15 4.17 18.5
IS50-32-250 7.5 2.08 82 11
12.5 3.47 80
15 4.17 78.5
IS65-50-125 15 4.17 21.8 3
25 6.94 20
30 8.33 18.5
IS65-50-160 15 4.17 35 5.5
25 6.94 32
30 8.33 30
IS65-40-200 15 4.17 53 7.5
25 6.94 50
30 8.33 47
IS65-40-250 15 4.17 82 15
25 6.94 80
30 8.33 78
IS65-40-315 15 4.17 127 30
25 6.94 125
30 8.33 123
IS80-65-160 30 8.33 36 7.5
50 13.9 32
60 16.7 29
IS80-50-250 30 8.33 84 22
50 13.9 80
60 16.7 75
IS80-50-315 30 8.33 128 37
50 13.9 125
60 16.7 123
IS100-80-125 60 16.7 24 11
100 27.8 20
120 33.3 16.5
IS100-80-160 60 16.7 36 15
100 27.8 32
120 33.3 28
IS100-65-200 60 16.7 54 22
100 27.8 50
120 33.3 47
IS100-65-250 60 16.7 87 37
100 27.8 80
120 33.3 74.5
IS100-65-315 60 16.7 133 75
100 27.8 125
120 33.3 118
IS100-65-315B 90.8 25.2 102 45
IS125-100-200A 187 52 44 37
IS125-100-250A 187 52 70 55
IS125-100-315 120 33.3 132.5 110
200 55.6 125
240 66.7 120
IS125-100-315B 181.5 50.4 103 90
IS65-40-250 7.5 2.08 21 2.2 1450
12.5 3.47 20
15 4.17 19.4
IS65-40-315 7.5 2.08 32.3 4
12.5 3.47 32
15 4.17 31.7
IS65-40-315B 11.3 3.2 25.8 3
IS80-50-200 15 4.17 13.2 2.2
25 6.94 12.5
30 8.33 11.8
IS80-50-250 15 4.17 21 3
25 6.94 20
30 8.33 18.8



Widely Application of end suction centrifugal water pump:

1.industry and urban water supply

2. drainage system

3. agricultural water irrigation

4. fire fighting water system



This pump is suitable to transfer the liquid medium like water or the physical and chemical feature like water. The temperature lower than 105°c



Advantages of end suction centrifugal water pump:

1) Compact structure, an integrally horizontal structure, beautiful appearance and less area of occupied land, comparing with the ordinary ones, is reduced by 30%

2) Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.

3) No leakage. A mechanical seal of anti septic carbide alloy is used for the shaft sealing so as to get rid of the serious leakage of filings of centrifugal pumps and ensure the operating room clean and neat.

4). Convenient service. Service can be easily done without removing any pipeline because of the back-door structure.
