Anti - Abrasive Submersible Mining Pump , Industrial Dewatering Pumps Horizontal

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Mine submersible pump is packed by wooden case or as your request Delivery Time : 3-5 working days after payment confirmation
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 2369 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QK

Detail Information

Flow Rate: 30-500m3/h Head: 100-900m
Material: Cast Iron/Stainless Steel Power: 30-2200kw
Motor: 100% Copper Wire Warranty: One Year
Install: Horizontal
High Light:

mining water pump

,

coal mine pumps

Product Description

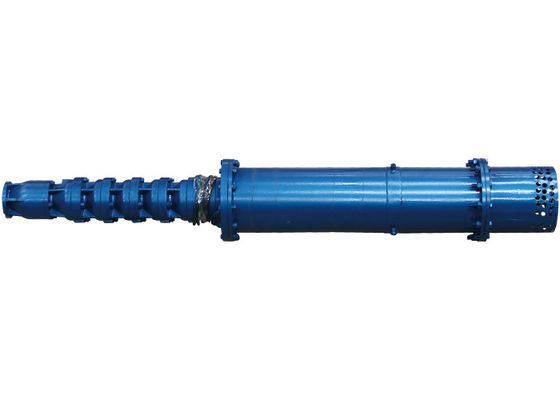

Flow 30-500m3/h Horizontal Anti-abrasive Dewatering Water Mine Submersible Pump



Mine submersible pump overview:

  1. Flow: 30-500m3/h
  2. Head: 100-900m
  3. Power: 30-2200kw
  4. Temperature: <20℃

Mine submersible pump applications:

  1. Draw underground water from deep wells
  2. Drain water in mines, such as gold ores, silver ores, coal mines

The electric mine submersible pump is mainly used for the drainage of the central pump house of the coal mine, the rescue drainage after the flood disaster of the coal mine or the re-mining drainage.

Due to its small diameter and light weight, it is also used for explosion-proof purposes in coal mines with high gas concentration, and has a wider range of applications

Mine submersible pump install conditions:

  1. Power supply: three-phase AC, voltage: 380 volts (deviation ± 5%), frequency 50 Hz.
  2. The water temperature is lower than 20 ° C
  3. The sediment content (mass ratio) does not exceed 0.01%
  4. PH: 6.5-8.5
  5. Oil free in water

Mine submersible pump overview:

Anti - Abrasive Submersible Mining Pump , Industrial Dewatering Pumps Horizontal 0

Mine submersible pump parameters:

 Model

Flow

(m3/h)

Lift

(m)

Power

(kw)

 460QK30-110

30

110

30

 460QK30-495

 30

495

120

 460QK30-605

30

605

140

 460QK30-1210

30

1210

410

 460QK50-200

 50

 200

 45

460QK50-500

50

500

140

570QK60-222

60

370

140

570QK80-690

80

690

300

570QK160-260

160

260

200

570QK300-325

300

325

450

570QK350-300

350

300

450

570QK400-110

400

110

200

570QK400-275

400

275

450

800QK250-200

250

200

260

800QK300-567

300

567

850

800QK350-305

350

305

470

800QK400-375

400

375

850

800QK400-900

400

900

2200

800QK500-180

500

180

470

800QK500-660

500

660

1900

If these mine submersible pump parameters do not meet your require, please feel free to contact us. We will choose one suitable model for you.



Customer Case:

1. Flow: 1200m3/h

2. Head: 40m

2. Pump Power: 220kw
3. Voltage: 380v/50hz
4. Application: Drain water in mines

Anti - Abrasive Submersible Mining Pump , Industrial Dewatering Pumps Horizontal 1
