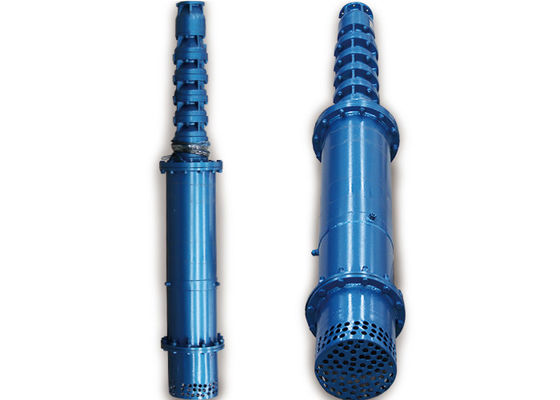

Cast Iron Water Coal Mine Submersible Pump Horizontal Install 30kw-2200kw

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Mine submersible pump is packed by wooden case or as your request Delivery Time : 3-5 working days after payment confirmation
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 1369 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: QK

Detail Information

Flow Rate: 30-500m3/h Head: 100-900m
Material: Cast Iron/Stainless Steel Voltage: 380v/660v/3kv/6kv/10kv
Power: 30-2200kw Motor: 100% Copper Wire
Install: Horizontal
High Light:

submersible dewatering pumps

,

coal mine pumps

Product Description

Flow 30-500m3/h 30kw-2200kw Explosion Proof Water Coal Mine Submersible Pump



Mine submersible pump overview:

  1. Flow: 30-500m3/h
  2. Head: 100-900m
  3. Power: 30-2200kw
  4. Temperature: <20℃
  5. Materials: Cast iron/stainless steel

Mine submersible pump applications:

This series of product are designed and manufactured according to the explosive environment depicted in GB3836.1-2010.
Part 1: General requirements for equipment and explosive environment;
Part 2: Suitable for normal drainage of mines with explosive gas atmosphere containing methane or coal dust as well as rescue and disaster relief and drainage for mine recovery in flooded mines.



Mine submersible pump parameters:

 Model

Flow

m3/h

Lift

m

Power

kw

 460QK30-110

30

110

30

 460QK30-495

 30

495

120

 460QK30-605

30

605

140

 460QK30-1210

30

1210

410

 460QK50-200

 50

 200

 45

460QK50-500

50

500

140

570QK60-222

60

370

140

570QK80-690

80

690

300

570QK160-260

160

260

200

570QK300-325

300

325

450

570QK350-300

350

300

450

570QK400-110

400

110

200

570QK400-275

400

275

450

800QK250-200

250

200

260

800QK300-567

300

567

850

800QK350-305

350

305

470

800QK400-375

400

375

850

800QK400-900

400

900

2200

800QK500-180

500

180

470

800QK500-660

500

660

1900

If these mine submersible pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable model for you.



Customer Case:

1. Flow: 1200m3/h

2. Head: 40m

2. Pump Power: 220kw
3. Voltage: 380v/50hz
4. Application: Drain water in mines

Cast Iron Water Coal Mine Submersible Pump Horizontal Install 30kw-2200kw 0

Mine submersible pump overview:

Cast Iron Water Coal Mine Submersible Pump Horizontal Install 30kw-2200kw 1
