Electric Cast Iron Multistage Submersible Pump For Mining Dewatering Water

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Mine submersible pump is packed seaworthy export standard plywood case. Delivery Time : 15-35 working days after payment confirmation
Payment Terms : T/T, Western Union, MoneyGram, L/C Supply Ability : 3000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO;CE,BV; TUV; SGS Model Number: Mine Submersible Pump

Detail Information

Flow Rate: 80-2000m3/h Head: 100-900m
Material: Cast Iron/Stainless Steel Power: 30-2200kw
Install: Horizontal/Vertical Usage: Water
High Light:

submersible dewatering pumps

,

coal mine pumps

Product Description



Cast Iron Multistage Mining Dewatering Water Mine Submersible Pump For Gold Ores





QK mine submersible pump applications:

  1. Draw underground water from deep wells
  2. Drain water in mines, such as gold ores, silver ores, coal mine and so on, in emergency.

Advanced technology:
Axial force self-balancing structure which efficiently reduces thrust-bearing load, stable operating performance, long service life. Wear-resistant materials which adapt to water of high sand concentration are selected for flow passage components.



QK mine submersible pump working conditions:

1. Three-phase power supply; Voltage 380V (deviation no more than 5%); Frequency 50Hz (deviation no more than 1%).

2. Motor must be filled with clean water.

3. Water temperature should not be more than 20°C.

4. Sand content of the water (by mass) should not be more than 0.01%.

5. PH value of water 6.5-8.5.

QK mine submersible pump overview:

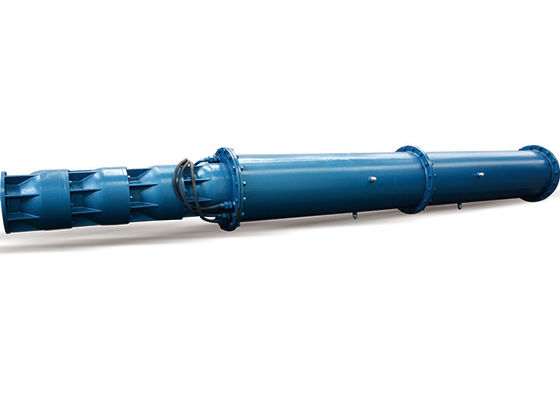

Electric Cast Iron Multistage Submersible Pump For Mining Dewatering Water 0

Mining submersible pump types:

(Notice: Special submersible mine pump specifications could be customized)

Type Flow rate Head meter Power
QK100-240/3-120 80 300 120
QK100-400/5-180 100 400 180
QK100-640/8-300 100 640 300
QK150-320/4-220 150 320 220
QK150-480/6-350 125 576 350
QK150-560/7-410 180 464 410
QK150-640/8-470 125 768 470
QK150-720/9-520 150 720 520
QK150-800/10-600 150 800 600
QK200-200/2-200 220 175 200
QK200-300/3-300 220 273 300
QK200-400/4-410 400 400 410
QK200-500/5-470 500 500 470
QK200-600/6-600 200 600 600
QK200-700/7-600 200 700 600
QK200-800/8-720 20 728 720
QK200-900/9-850 200 900 850
QK200-100/10-1000 220 910 1000
QK300-100/2-140 300 100 140
QK300-800/16-1150 300 800 1150
QK400-200/4-350 400 200 350
QK400-400/8-720 400 400 720
QK560-255/3-620 560 255 620
QK560-340/4-850 630 303 850
QK1120-85/2-420 1120 85 420
QK1120-170/4-850 1120 170 850
QK1120-255/6-1300 1400 234 1300
QK1120-340/8-1700 1120 340 1700
QK1120-425/10-2200 1400 390 2200
QK1120-510/12-2400 1120 510 2400



Customer Case:

One piece QK mine submersible pump to Indonesia, detailed parameters as followed:

1. Flow: 1200m3/h

2. Head: 40m

2. Pump Power: 220kw
3. Voltage: 380v/50hz
4. Application: Drain water in mines

Electric Cast Iron Multistage Submersible Pump For Mining Dewatering Water 1
