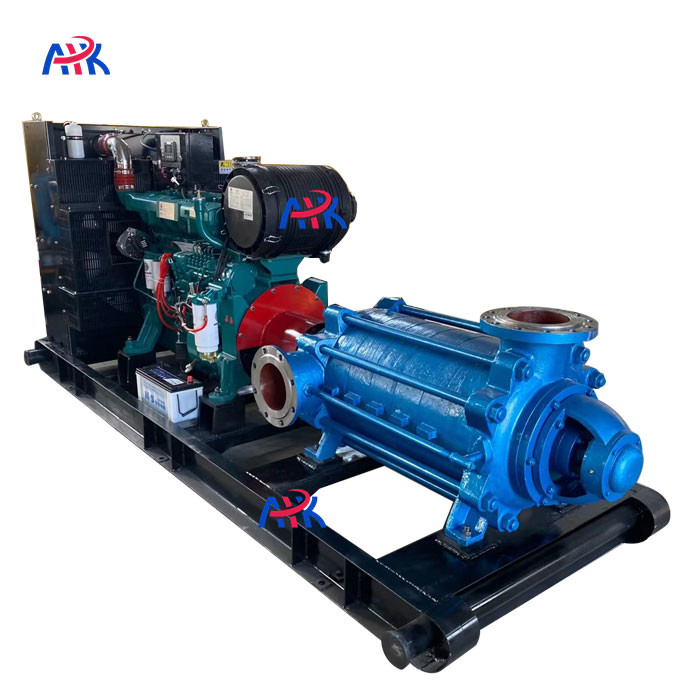

SS316L 280m3/H Horizontal Surface Mounted Multistage Centrifugal Water Pump

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Horizontal multistage surface mounted centrifugal water pump is packed with seaworthy export standard plywood case Delivery Time : Within 10-25 working days upon receipt of payment
Payment Terms : T/T, Western Union, L/C, D/A, D/P Supply Ability : 3000 sets per month
Place of Origin: China Brand Name: APK
Certification: ISO; CE Model Number: Horizontal Multistage Centrifugal Pump

Detail Information

Flow Rate: 280m3/hr Head: 240m
Material: Stainless Steel 316L NPSH: 5m
Wet Parts: Duplex Stainless Steel Bearing: SKF
High Light:

280m3/H Multistage Centrifugal Water Pump

,

Horizontal Multistage Centrifugal Water Pump

,

SS316L Multistage Centrifugal Water Pump

Product Description





Pakistan 240m Diesel Engine Generator Horizontal Multistage Dewatering Wter Centrifugal pump



Pakistan customer inquired four types firstly, who works in a Mining Company in Pakistan. He would like to quote:

1. SS 904L 415v or 660v 100m3/hr 240m water submersible pump;
2. SS 904L 415v or 660v 160m3/hr 240m water submersible pump;
3. SS 316L 415v 280m3/hr 240m horizontal surface mounted multistage centrifugal pump;
4. SS 316L 415v 100m3/hr 240m horizontal surface mounted multistage centrifugal pump;
5. Spare parts including flow sleeves, PT100, Pressure sensor / Gauge, Auto shutdown sensor due to temperature and water level, Electromagnetic Flow meter and VFD.



   All is for a bidder with respect to their requirement for supply of submersible and horizontal multistage surface dewatering centrifugal pumps.



In order to submitting the exactly technical and commercial offer, we confirmed some details again as below:

1. For the centrifugal pump, is the diesel engine belongs to our supply scope? Is there any special requirements on the diesel engine brand? Usually, we suggest WEICHAI brand.

2. For the centrifugal pump, we think the NPSH 15m is not right, 5m is available.

SS316L 280m3/H Horizontal Surface Mounted Multistage Centrifugal Water Pump 0

3.For the centrifugal pump, we found the NPSH marked on the nameplate also is 5m, not 15m.

4. To be honest, NPSH 15m is impossible for any surface kind centrifugal pump.

5. For the diesel engine, we think maybe it's diesel generator, it will provide electric power to the pump?



Finally, we made a formal offer asap according to Pakistan customer’s feedback.

--Model: DF280-43*6

--Flow rate: 280m3/hr

--Head: 240m

--NPSH: 5m

--Inlet/Outlet dia: 200mm

--Material: SS316L

--Impeller&Wet parts: duplex stainless steel

--Bearing: SKF

--Seal: Mechanical seals

--Power supply: Diesel engine generator

--Diesel engine brand: According to your request

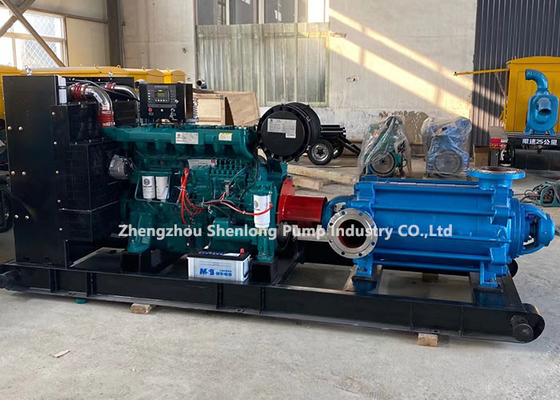

Horizontal multistage surface mounted centrifugal pump testing center:

SS316L 280m3/H Horizontal Surface Mounted Multistage Centrifugal Water Pump 1

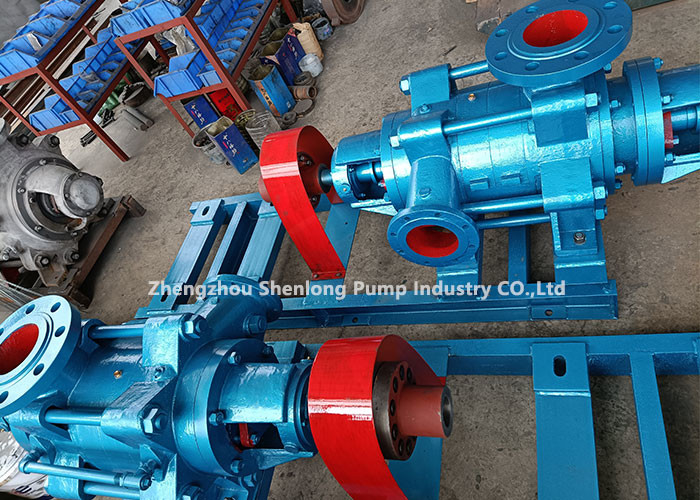

Horizontal multistage surface mounted centrifugal pump set:

SS316L 280m3/H Horizontal Surface Mounted Multistage Centrifugal Water Pump 2

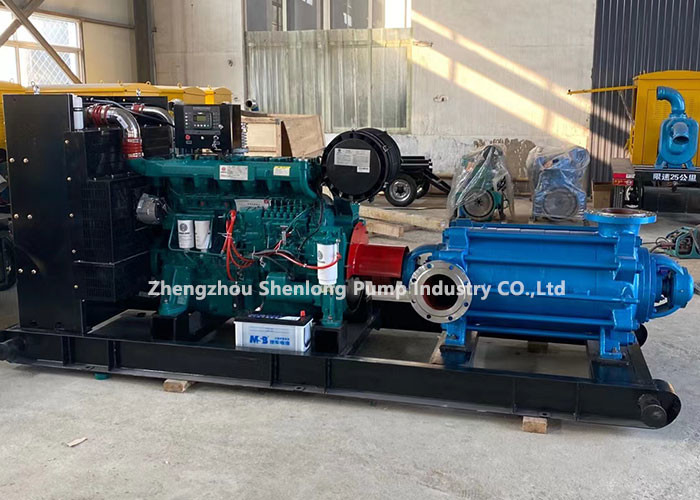

Now, horizontal multistage surface mounted centrifugal pump running very well. Also, we got a best recognition from Pakistan customer.

SS316L 280m3/H Horizontal Surface Mounted Multistage Centrifugal Water Pump 3

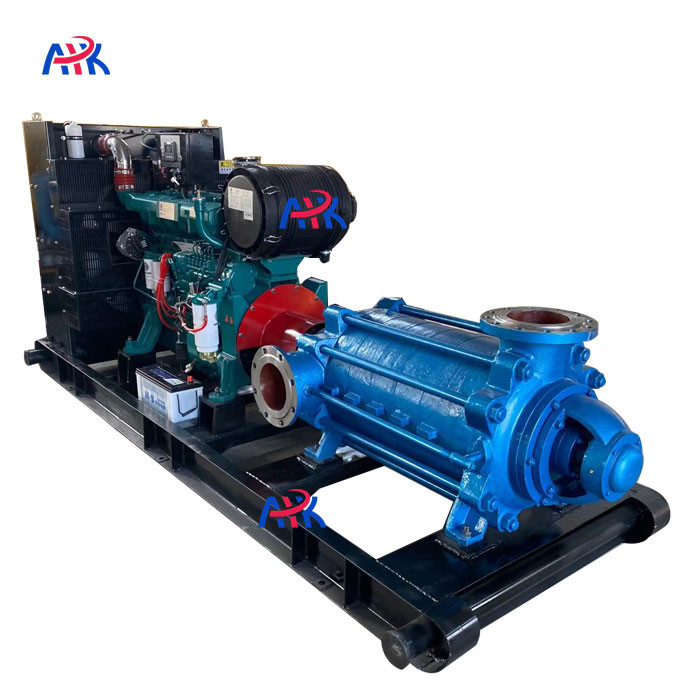

280m3/hr 240m head horizontal multistage surface dewatering centrifugal pump installed:

SS316L 280m3/H Horizontal Surface Mounted Multistage Centrifugal Water Pump 4



Horizontal Surface Mounted Multistage Centrifugal Water Pump Types:

(Notice: flow rate, head meters, material, ODM OEM is acceptable. And pump could be driven by electric motor or diesel engine generator)

Flow Head Power Inlet Diameter Outlet Diameter
m3/hr m kw mm mm
6.3 75 4 40 40
7.5 98 5.5 40 40
3.7 153 7.5 40 40
6.3 175 7.5 40 40
7.5 196 11 40 40
3.7 280 15 40 40
6.3 300 15 40 40
12.5 75 5.5 50 40
15 92 7.5 50 40
30 110 18.5 65 65
15 204 30 65 65
25 240 37 65 65
30 275 45 65 65
46 90 22 80 65
55 108 30 80 65
55 230 75 80 80
46 400 90 80 80
30 499.5 110 80 80
100 75 37 100 100
85 315 132 100 100
55 459 160 100 100
155 90 75 150 150
190 216 185 150 150
335 190 315 200 200
280 455 630 200 200
335 130 220 250 250
