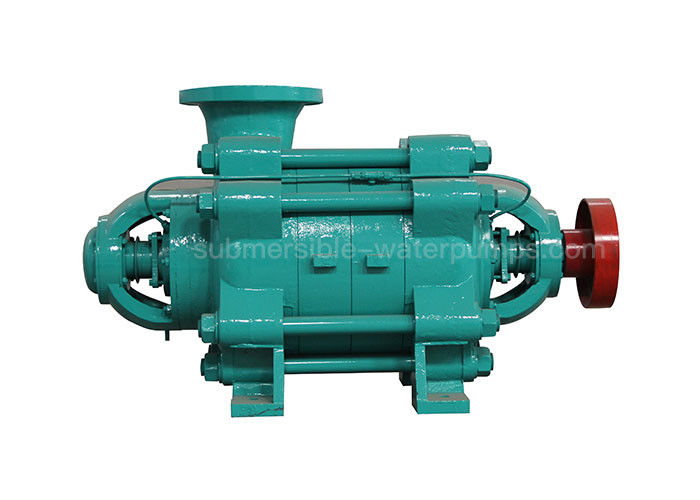

2950rpm Horizontal Multi Stage Centrifugal Pump Wear Resistant 200m Head
Contact Person : Destiny.Huang
Phone Number : 86 17537187726
WhatsApp : +8617537187726
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Boiler feed water pump is packed by wooden case or as your request. | Delivery Time : | 3-7work days after payment confirmation |
| Payment Terms : | L/C, T/T |
| Place of Origin: | Henan China | Brand Name: | APK |
|---|---|---|---|
| Certification: | ISO;CE,BV; TUV; CCC | Model Number: | MD |
|
Detail Information |
|||
| Flow Rate: | 6.3-450m3/h | Head: | 75-603m |
|---|---|---|---|
| Material: | Cast Iron Or Stainless Steel | Voltage: | 380v Or Customized |
| Power: | 2.2kw-160kw | Motor: | 100% Copper Wire |
| Install: | Horizontal | ||
| High Light: | Wear Resistant Multistage Centrifugal Pump,2950rpm Multistage Centrifugal Pump,200m Head Horizontal Multistage Centrifugal Pump |
||
Product Description
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump
Features of Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump:
1. Advanced hydraulic model, high efficiency and wide performance range.
2. The pump runs stably with low noise.
3. The shaft seal adopts soft packing seal or mechanical seal, which is safe and reliable, simple in structure, and convenient and quick in maintenance.
4. The shaft is fully sealed to ensure no contact with medium, no rust and long service life.
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump Parameter range:
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump
Flow: 3.75-840m/h Lift: 19~680m
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump Model description:
D (DG, MDDF DY) 450-60x4 D-multi-stage horizontal centrifugal pump MD multi-stage abrasion resistant centrifugal pump DF multi-stage corrosion resistant centrifugal pump
DY multi-stage centrifugal oil pump
450 The design point flow of one pump is 450mh60 The single stage design point lift of one pump is 60m4 The stage of one pump is 4
125D25*5
125 One pump inlet diameter is 125mm D-multi-stage horizontal centrifugal pump
25 The single stage design point lift of one pump is 25m5, and the number of stages of one pump is 5
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump Performance parameter table:
| Model |
Capacity (m3/h) |
Head (m) |
Power (kw) |
| MD6-50 | 3.75-7.5 | 192-208 | 18.5 |
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump Performance Curve:
Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump Outline Installation Dimension Table:
| D, | DG,DF,DY,MD6-50 | D,DG,DF,DY,MD6-50 Performance Data | |||||||||
| Capacity | Head | Shaft power | Motor | Eff. | |||||||
|
Pole Series |
Power |
||||||||||
| c | J | H | n | Pa | n | (NPSH)r | Impeller Dia. | Weight | |||
| m"/h | US | m | r/min | kW | kW | Type | % | m | mm | kg | |
| 3.75 | 1.04 | 104 | 3.79 | 28 | 3.0 | ||||||
| 2 | 6.3 | 1.75 | 100 | 2950 | 5.72 | 11 | Y160M--2 | 30 | 3.0 | 4>198 | 140 |
| 7.5 | 2.08 | 96 | 6.76 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 106 | 5.69 | 28 | 3.0 | ||||||
| 3 | 6.3 | 1.75 | 150 | 2950 | 8.58 | 15 | Y160Ml2 | 30 | 3.0 | 4>198 | 160 |
| 7.5 | 2.08 | 144 | 10.1 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 208 | 7.58 | 28 | 3.0 | ||||||
| 4 | 6.3 | 1.75 | 200 | 2950 | 11.4 | 18.5 | Y160L-2 | 30 | 3.0 | 4)198 | 180 |
| 7.5 | 2.08 | 192 | 13.5 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 260 | 9.48 | 28 | 3.0 | ||||||
| 5 | 6.3 | 1.75 | 250 | 2950 | 14.3 | 22 | Y180M-2 | 30 | 3.0 | 4>198 | 200 |
| 7.5 | 2.08 | 240 | 16.9 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 312 | 11.4 | 28 | 3.0 | ||||||
| 6 | 6.3 | 1.75 | 300 | 2950 | 17.2 | 30 | Y200L-2 | 30 | 3.0 | 4>198 | 220 |
| 7.5 | 2.08 | 288 | 20.3 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 364 | 13.3 | 28 | 3.0 | ||||||
| 7 | 6.3 | 1.75 | 350 | 2950 | 20.0 | 30 | Y200L-2 | 30 | 3.0 | 4>198 | 240 |
| 7.5 | 2.08 | 336 | 23.7 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 416 | 15.2 | 28 | 3.0 | ||||||
| 8 | 6.3 | 1.75 | 400 | 2950 | 22.9 | 37 | Y200U-2 | 30 | 3.0 | 4>198 | 260 |
| 7.5 | 2.08 | 384 | 27.0 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 468 | 17.1 | 28 | 3.0 | ||||||
| 9 | 6.3 | 1.75 | 450 | 2950 | 25.7 | 37 | Y200L-2 | 30 | 3.0 | *198 | 280 |
| 7.5 | 2.08 | 432 | 30.4 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 520 | 19.0 | 28 | 3.0 | ||||||
| 10 | 6.3 | 1.75 | 500 | 2950 | 28.6 | 45 | Y225M-2 | 30 | 3.0 | *198 | 300 |
| 7.5 | 2.08 | 480 | 33.8 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 572 | 20.8 | 28 | 3.0 | ||||||
| 11 | 6.3 | 1.75 | 550 | 2950 | 31.4 | 45 | Y225M-2 | 30 | 3.0 | <t>198 | 320 |
| 7.5 | 2.08 | 528 | 37.2 | 29 | 3.5 | ||||||
| 3.75 | 1.04 | 624 | 22.7 | 28 | 3.0 | ||||||
| 12 | 6.3 | 1.75 | 600 | 2950 | 34.3 | 55 | Y250M-2 | 30 | 3.0 | 4>198 | 340 |
| 7.5 | 2.08 | 576 | 40.6 | 29 | 3.5 | ||||||
Application of Top Brand of China 200m Head 2950rpm Horizontal multi-stage wear-resistant centrifugal pump:
It is mainly used for water supply and drainage of urban high-rise buildings and fire fighting, water supply and drainage of factories and mines, long-distance water transmission, water use in production process circulation, HVAC circulation, domestic water and other purposes.
If you have any needs and questions about Horizontal multi-stage wear-resistant centrifugal pump, you can consult us. Our email is enquiry02@apkpump.com, our Whatsapp is +86 17537187726.
