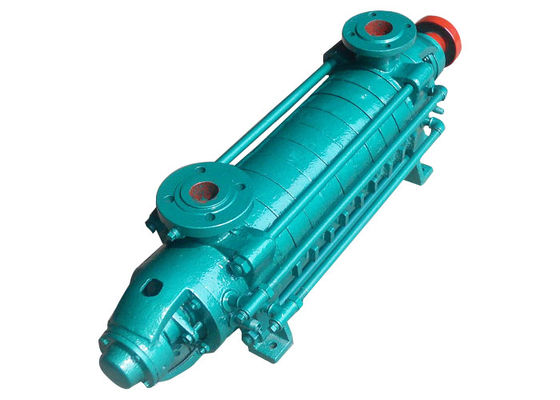

Hot Water Circulation Boiler Feed Water Pump , High Pressure Boiler Feed Pump

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Boiler feed water pump is packed by wooden case or as your request. Delivery Time : Within 2-5 working days upon receipt of payment
Payment Terms : T/T, Western Union Supply Ability : 9863 sets per month
Place of Origin: Henan China Brand Name: APK
Certification: ISO;CE,BV; TUV; CCC Model Number: DG

Detail Information

Flow Rate: 3.75~185m3/h Head: 50-1056m
Material: Cast Iron Or Stainless Steel Voltage: 380v/415v/420v/460v/480v/660v /1140v
Power: 30kw-150kw Install: Horizontal
Motor: 100% Copper Wire Temperature: -20℃-150℃
High Light:

electric feeding pump

,

feed pump for boiler

Product Description

Hot Water Circulation Multistage Horizontal Feeding Boiler Feed Water Pump



DG boiler feed water pump overview:



DG boiler feed water pump is widely applied to supply water of low or high pressure boiler. It is also used for high pressure water supply and drainage of industrial and urban. The temperature of medium delivered should be in the range of -20°C to 150°C and the water pump inlet pressure should be less than 0.6M Pa.

  • Flow: 6.3-450m3/h
  • Head: 75-603m
  • Inlet diameter: φ40-φ250mm
  • Temperature: 0~80℃

DG boiler feed water pump applications:

  • Municipal water supply&drainage
  • Water supply for high building
  • Mining drainage
  • Gardening irrigation system
  • Other industrial applications

DG boiler feed water pump parameters:

Model

Flow

(m3/h)

Lift

(m)

Power

(kw)

DG6-25*3

3.7

76

4

DG6-25*4

3.7

102

5.5

DG6-25*5

7.5

122

5.5

DG6-25*7

3.7

178

7.5

DG6-25*8

3.7

204

11

DG6-25*9

6.3

225

11

DG6-25*11

3.7

280

15

DG12-25*3

7.5

84

5.5

DG12-25*4

7.5

113

7.5

DG12-25*6

7.5

169

11

DG12-25*7

7.5

197

15

DG12-25*8

15

184

15

DG12-25*9

12.5

225

18.5

DG12-25*10

15

230

18.5

DG12-25*11

12.5

275

22

DG25-30*3

25

90

15

DG25-30*4

15

136

18.5

DG25-30*6

25

180

30

DG25-30*7

30

193

30

DG25-30*8

15

272

37

DG25-30*9

25

270

37

DG25-30*10

25

300

45

DG25-50*3

28

138

22

DG25-50*5

15

257.5

37

DG25-50*6

15

309

45

DG25-50*9

25

450

75

DG25-50*12

15

618

90

DG46-30*7

30

238

45

DG46-50*12

30

666

132

If these DG boiler feed water pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable model for you.



DG boiler feed water pump features:

  • High pump head
  • Can pump corrosive fluid
  • Packing seal or mechanical seal
  • Easy to install, use, disassemble and maintain
